Açıklama

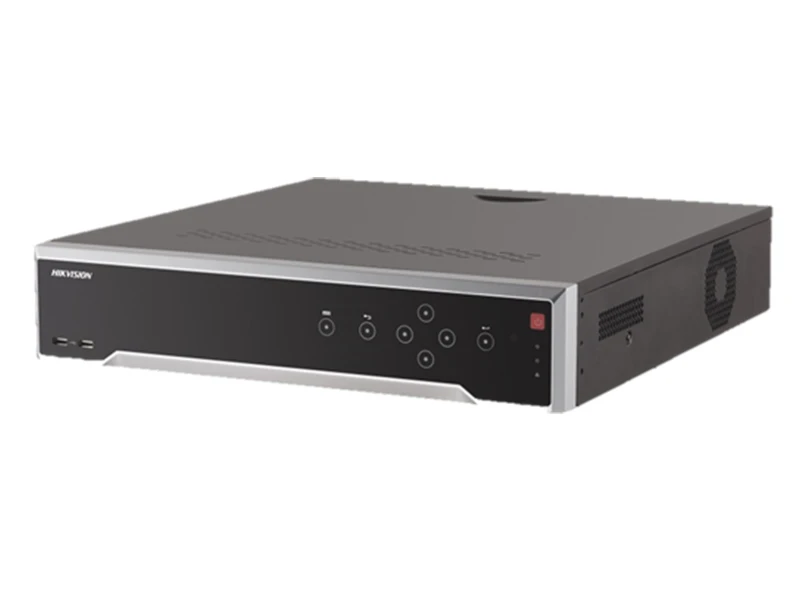

Hikvision DS 8608NI K8 NVR Kayıt Cihazı
Özellikler
- Dual-OS design to ensure high reliability of system running
- ANR technology to enhance the storage reliability when the network is disconnected
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
- 2 self-adaptive 10 M/100 M/1000 Mbps network interfaces, and two working modes are configurable: multi-address and network fault tolerance
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
Teknik Özellikler
Video / Ses Girişi | |
İki Yönlü ses girişi | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP Video girişi | 8-ch |
Network | |
Incoming bandwidth | 80Mbps |
Outgoing bandwidth | 160Mbps |
Video/Audio Output | |
HDMI/VGA output: | 4-ch, VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560× 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; VGA2/HDMI2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Senkronize Yeniden Oynatma | 8-ch |
Decoding | |
Live view / Playback | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Capability | 8-ch@1080P |
Hard Disk | |
SATA | 8 SATA interfaces for 8 HDDs |
eSATA | 1 eSATA interface |
Kabiliyeti | Up to 6TB capacity for each HDD |
Harici Arayüzü | |
Ağ Arayüzü | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
Seri bağlantı Arayüzü | RS-232, RS-485, Keyboard |
USB Arayüzü | Front panel: 2 × USB 2.0 |
Rear panel: 1 × USB 3.0 | |
Alarm iç | 16-ch |
Alarm dış | 4-ch |
General | |
Power | 200 W |
Güç Kaynağı | 100 to 240 VAC, 50 to 60 Hz |
Tüketim (hard disk ve POE olmadan) | ≤ 30 W |
Çalışma Sıcaklığı | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
Çalışma Nem oranı | 10 % ~ 90 % |
Kasa | 2U chassis |
Boyutlar | 445 × 470 × 90 mm (17.5" × 18.5" × 3.5") |
Ağırlık (HDD hariç) | ≤ 8 kg (17.6 lb) |
