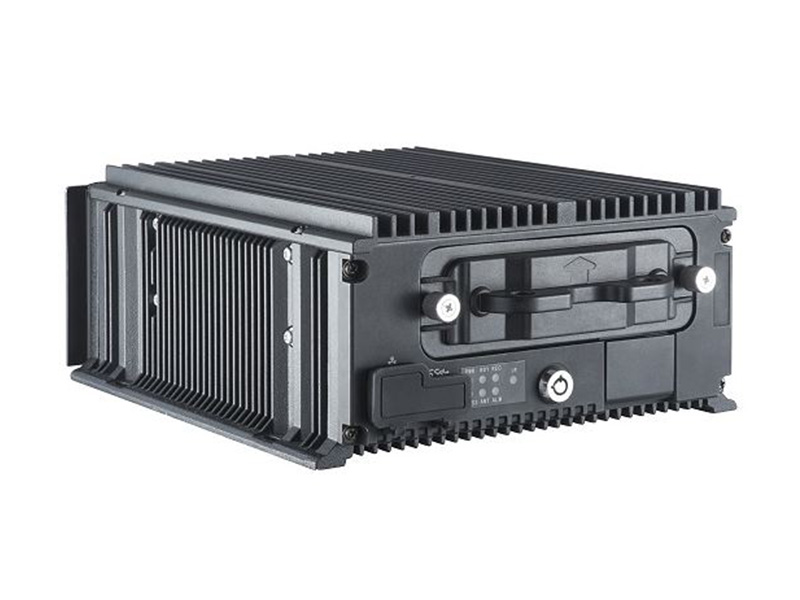

Hikvision DS MP7608HN M12 Mobil NVR Kayıt Cihazı
Özellikler
- Connects 8-ch IP cameras via PoE interfaces. Connects 8 more IP cameras via PoE switch.
- Up to 1080p resolution of H.264/H.265 compression for each IP camera.
- One CVBS video output interface.
- One VGA video output interface with up to 1080p resolution.
- Two pluggable 2.5-inch HDDs/SSDs, adopting hard disk vibration damping technology.
- Store videos that has dropped frame in SD card when HDDs/SSDs are damaged).
- Pluggable 3G/4G module and Wi-Fi module providing flexible data transmission solutions.
- Built-in GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
- Information collection interfaces collecting driving information such as left/right turning, braking, reversing, etc.
- Specialized aviation connectors ensuring signal stability.
- Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
- Back up two upgrade packages to reduce risk of failure.
- Battery protection avoids vehicle from running out of battery.
- Wide-range power input (+9 VDC to +32 VDC).
- Power-off protection prevents key data from loss.
- Supports accessing via WEB browser.
- Aluminum die-cast chassis.
- Housing is available for protecting mobile video recorder from water.
Teknik Özellikler
| Video/Audio input | |
| IP camera | 16-ch: 8-ch connected via PoE interfaces and 8-ch extendable via PoE interfaces |
| Video/Audio output | |
| Video Output | CVBS video output:1-ch, PAL: 704 × 576, NTSC: 704 × 480 |
| VGA video output:1-ch, resolution: 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 | |
| Audio output | 1-ch |
| Encoding/Decoding parameters | |
| Video compression | H.264,H.265 |
| Encoding resolution | Main stream: 1080p/720p/WD1/4CIF. Sub-stream: 4CIF/2CIF/CIF |
| Frame rate | PAL: 1 to 25fps; NTSC: 1 to 30fps |
| Audio compression | G.722 |
| Audio bitrate | 16 Kbps |
| Dual Streams | Supported |
| Hard Disk | |
| Type | 2 × 2.5 inch hard disk (HDD/SSD) |
| Capacity | Up to 2 TB for each disk |
| Wireless Network | |
| 3G/4G Dialing | Optional pluggable 3G(WCDMA)and 4G(FDD-LTE) |
| Wi-Fi | 802.11AC module,5.8GHz and 2.4GHz supported |
| Positioning | |
| Type | Built-in |
| Positioning Module | GPS(Global Positioning System) |
| External interface | |
| Two-way audio compression | G722 |
| Sensor-in | 4 high/low level signal inputs |
| Alarm input | 4 high/low level signal inputs |
| Alarm output | 2 relay signal outputs |
| Network interface | Front panel: 1 × 10M/100M/1000M RJ45 Ethernet interface |
| Rear panel: 1 × 10M/100M/1000M M12 Ethernet interface | |
| Serial interface | 2 × RS-232. 1 × RS-485. 1 × RS-422 (integrated in EXT.DEV interface) |
| USB port | ● Front panel: 1 × USB 3.0 |
| ● Rear panel: 1 × USB 2.0 of 5-pin aviation plug | |
| SD Card | 1 SD/SDHC/SDXC slot, up to 256 GB |
| CAN Interface | 2 |
| General | |
| Operating system | Linux |
| Operating method | Mouse, IR remote control, and Web control |
| Power Supply | Input: 9 to 32 VDC; Output: 12 VDC/1 A, 5 VDC/1 A |
| Consumption | ● Standby: ≤ 0.5 W |
| ● Full load: ≤ 99 W | |
| Note: Without peripheral and storage media ≤ 20 W | |
| Working temperature | ● Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to +140°F) |
| ● Other devices: -10 °C to +60 °C (14 °F to 140°F) | |
| Working humidity | 10% to 95% |
| Dimensions (W×D×H) | 202 × 267.6 × 93.9 mm (8.0 × 14.5 × 3.7 inch) |
| Weight (without HDDs/SSDs) | 3.66 kg (8.07 lb) |
Hikvision DS MP7608HN M12 Mobil NVR Kayıt Cihazı Pdf Dosyası1.22 MB
