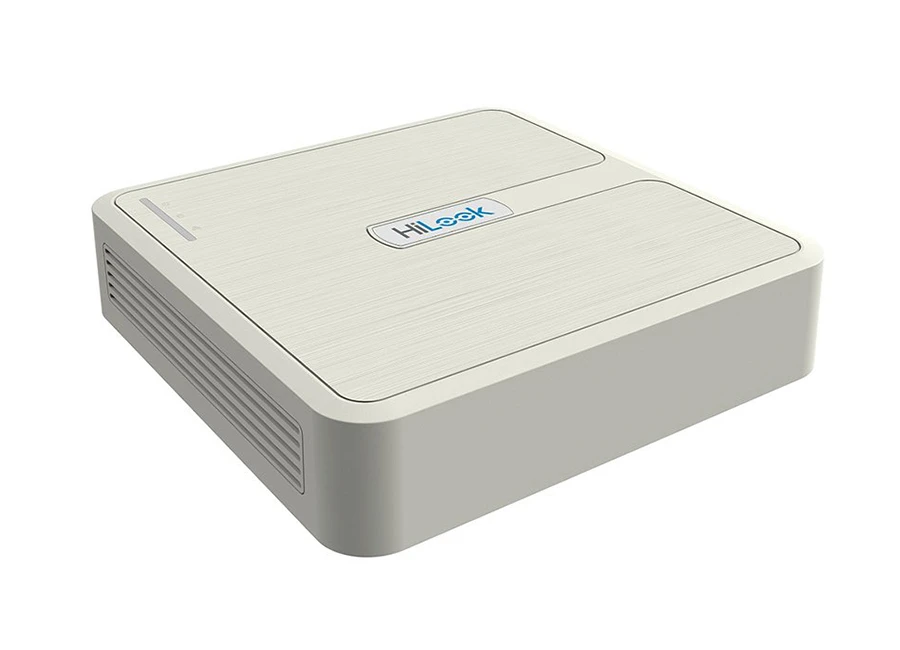

HiLook NVR 108H D/8P NVR Kayıt Cihazı
Özellikler
Video Input and Transmission
- Connectable to the third-party network cameras
- Up to 8 network cameras can be connected
Compression and Recording
- H.265+/H.265 compression effectively reduces the storage space and costs
- Full channel recording at up to 4 MP resolution
HD Video Output
- HDMI/VGA output at 1080p resolution
Storage and Playback
- 1-ch playback at 4 MP resolution or 2-ch at 1080p resolution
- 1 SATA hard disk can be connected with 6TB capacity
Smart Function
- Supports line crossing and intrusion detection
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Network & Ethernet Access
- Hik-Connect for easy network management
- 100 Mbps Ethernet network interface
- 4/8 independent 100 Mbps built-in switch network interfaces
Teknik Özellikler
Video / Ses Girişi | |
IP Video girişi | 8-ch |
IP Video girişi | Up to 4 MP resolution |
Network | |
Incoming bandwidth | 60 Mbps |
Outgoing bandwidth | 60 Mbps |
Video/Audio Output | |
LCD/HDMI/VGA Çıkışı Çözünürlükte | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Recording Resolution | 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Decoding | |
Decoding format | H.265+/H.265/ H.264+/H.264 |
Live view / Playback | 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Capability | 1-ch @ 4 MP / 2-ch @ 1080p |
Hard Disk | |
SATA | 1 SATA interface for 1 HDD |
Capacity | Up to 6TB capacity for each HDD |
External Interface | |
Dahili anahtarı ağ arayüzü | 8 independent 100 Mbps built-in switch network interfaces |
Ağ Arayüzü | 1 RJ-45 10 / 100 Mbps selfadaptive |
Ethernet interface | |
USB Arayüzü | 2, USB2.0 |
POE | |
Desteklenen Standartlar | AF and AT |
Max. Power | 75W |
Interface | 8 independent 100 Mbps PoE network interfaces |
General | |
Güç Kaynağı | 48 VDC |
Tüketim (hard disk ve POE olmadan) | ≤ 90 W |
Çalışma Sıcaklığı | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
Çalışma Nem oranı | 10 % ~ 90 % |
Kasa | 385 mm chassis |
Boyutlar | 285 × 215 × 48 mm |
(11.2" × 8.5" × 1.9") | |
Ağırlık (HDD hariç) | ≤ 1 kg (2.2 lb) |
