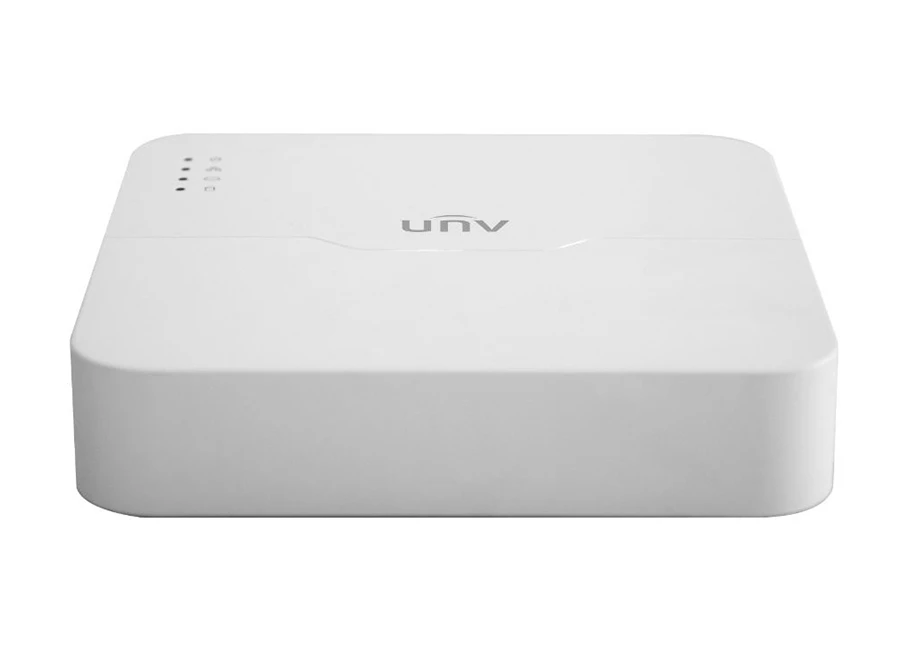

Uniview NVR301 08LX P8 NVR Kayıt Cihazı

Support Ultra 265/H.265/H.264 video formats
8-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI ,1-ch VGA,HDMI at up to 4K(3840x2160) resolution
HDMI and VGA simultaneous output
Up to 8MP resolution recording
1 SATA HDD up to 10 TB
Support cloud upgrade

Model	NVR301-08LX-P8
Video/Audio Input
IP Video Input	8-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	64Mbps
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output	HDMI:
	3840x2160/30Hz ,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
	VGA:
	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback	8-ch
Corridor Mode Screen	3/4/5/7/9
Decoding
Decoding format	Ultra 265/H.265/H.264
Liveview/Playback	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30, 16 x 720p@30
Hard Disk
SATA	1 SATA interface
Capacity	up to 10TB for each disk
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 1 x USB2.0,1 x USB3.0
PoE
Interface	8 independent 100 Mbps PoE network interfaces
Max Power	Max 30W for single port
Max Power	Max 108W in total (13.5W for each)
Supported Standard	IEEE 802.3at, IEEE 802.3af
General
Power Supply	52V DC
Power Supply	Power Consumption: ≤8 W (without HDD)
Working Environment	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	270mm × 205mm × 47mm (10.6"×8.1"×1.9")
Weight (without HDD)	0.7 kg (1.54 lb)
