Açıklama

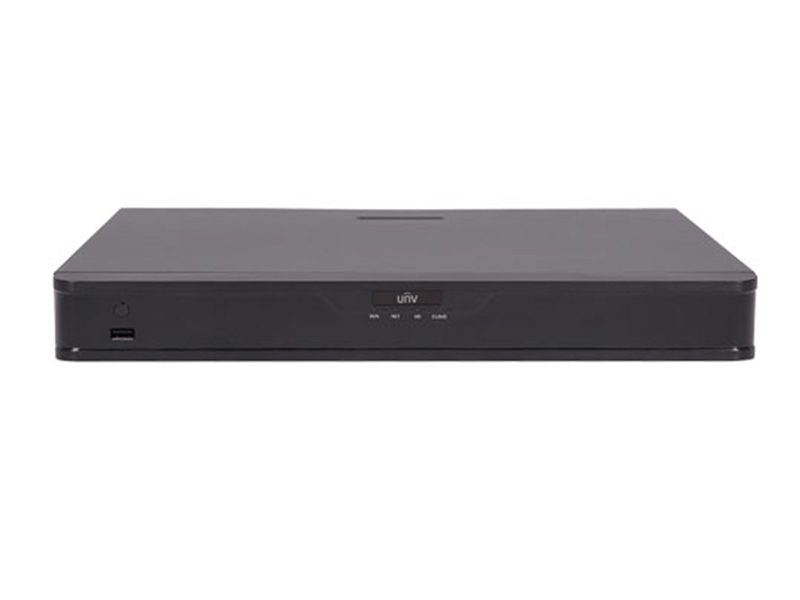

Uniview NVR302 08S P8 NVR Kayıt Cihazı
Özellikler
- Support Ultra265/H.265/H.264 video formats
- 8/16-channel input
- Plug & Play with 8/16 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 2 SATA HDDs, up to 8TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Teknik Özellikler
| Model | NVR302-08S-P8 | NVR302-16S-P8 | NVR302-16S-P16 |
| Video/Audio Input | |||
| IP Video Input | 8-ch | 16-ch | 16-ch |
| Two-way Audio Input | 1-ch, RCA | ||
| Network | |||
| Incoming Bandwidth | 64Mbps | 112Mbps | 112Mbps |
| Outgoing Bandwidth | 96Mbps | 96Mbps | 96Mbps |
| Remote Users | 128 | ||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||
| Video/Audio Output | |||
| HDMI/VGA Output | VGA: | ||
1024X768@60,1280X720@60, 1280X1024@60,1920X1080@50,1920X1080@60 | |||
| HDMI: | |||
4k(3840x2160@30),4k(3840x2160@60), 1024X768@60, 1280X720@60,1280X1024@60,
1920X1080@50, 1920X1080@60 | |||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/ 720p/D1/2CIF/CIF | ||
| Audio Output | 1-ch, RCA | ||
| Synchronous Playback | 8-ch | 16-ch | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7
/9/10/12/16 | 3/4/5/7
/9/10/12/16 |
| Decoding | |||
| Decoding format | Ultra265/H.265/H.264 | ||
| Live view/ Playback | 8MP/6MP/5MP/4MP/3MP/1080p/ 960p/720p/D1/2CIF/CIF | ||
| Capability | 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1 | ||
| Hard Disk | |||
| SATA | 2 SATA interfaces | ||
| Capacity | up to 8TB for each disk | ||
| Smart | |||
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection,
Defocus detection, Scene change detection, Auto tracking | ||
| VCA Search | Face search, Behavior search | ||
| Statistical Analysis | People counting | ||
| External Interface | |||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | ||
| USB Interface | Front panel: 1 x USB2.0,
Rear panel: 1 x USB2.0 | ||
| Alarm In | 4-ch | ||
| Alarm Out | 1-ch | ||
| PoE | |||
| Interface | 8 independent 100Mbps PoE network interfaces | 16 independent
100Mbps PoE
network interfaces | |
| Max Power | Max 30W for single port | Max 30W for single port | Max 30W for
single port |
Max 130W in total
( 16.25W for each ) | Max 130W in total
( 16.25W for each ) | Max 240W in total
( 15W for each ) | |
| Supported Standard | IEEE 802.3af/at | ||
| General | |||
| Power Supply | 220V AC | ||
Power Consumption: ≤9 W
( without HDD ) | |||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ),
Humidity ≤ 90% RH(non-condensing) | ||
| Dimensions(W×D×H) | 380mm ×315mm × 49.1mm
(15.0" × 12.4" ×1.9" ) | ||
| Weight ( without HDD ) | ≤2.4kg (5.29 lb) | ||
