Specifications |
System | OS: Embedded Linux |
CPU: ARM Processor |
Flash: 256 MB |
RAM: 1GB |
Watchdog: Hardware + Software |
Power Restoration: System restart automatically after Power Recovery |
Storage | HDD Devices: Internal tray x 2 |
HDD Max. Capacity: 8 TB (4 TB x 2) |
Disk Management: |
Create, Format and Remove Disk |
HDD S.M.A.R.T |
Video | Video Output: HDMI |
Resolution: 1920x1080, 1280x720 |
Graphics Decoder: Hardware decoding |
Decoding Capacity: H.264: |
1920x1080 @ 30 fps (1-CH) |
1280x720 @ 120 fps (4-CH) |
640x480 @ 240 fps (8-CH) |
Camera Position: Change the viewcell postion |
External I/O | USB: |
Front: 1 (USB 2.0) |
Back: 1 (USB 2.0) |
Networking | Protocols: IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter |
Interface: 1 x 10/100/1000Mbps |
Transform Gateway: Supported |
Power | Power Input: DC 12V 5A |
Power Consumption (W): Max. 60 W |
LED Indicator | LED Indicator: Power, Status, LAN, HDD1, HDD2, Alarm, Record |

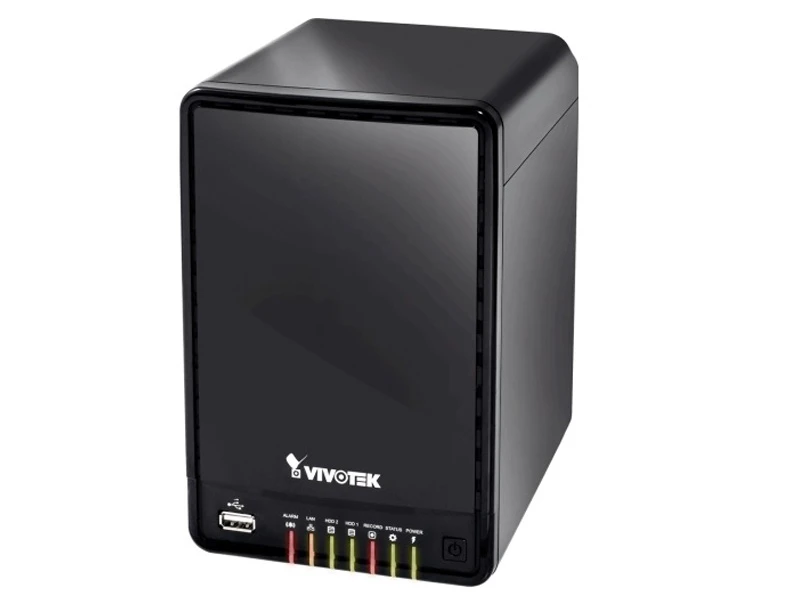

Mechanic | Form Factor: Tower |
Operation Buttons: Power (Front) / Reset (Back) |
Dimensions: 121mm(W)x179mm(D)x186mm(H) |
Weight: 0.92 kg |
Operating Temperature: 0 ~ 40 ̊C |
Humidity: 0 ~ 95% |
General | Safety Certifications: CE, LVD, FCC Class B, VCCI, C-Tick |
Warranty: 24 months |
System Requirements | Operating System: Microsoft Windows OS XP / Vista / 7 / 8 / 2008 / 2012 |
CPU: Intel Celeon or above |
Memory: 2 GB or above |
Ethenet: 10/100Mbps |
Display Resolution: 1024 x 768 pixels or above |
Web Browser: Internet Explorer 10 (32 bit) or above |
Software AP: Installation Wizard 2, ST7501, VAST |
Mobile APP, Tablet APP: iViewer (iOS), iViewer (Android) |
Recording | Maximum Channel: 8 |
Record throughput (MB): 32 Mbps |
Network throughput (MB): 16 Mbps |
Audio Format: G.711, G.726, AMR, AAC |
Video Format: MJPEG, H.264 AVC |
Video Resolution: VGA, 1MP, 2MP All Device & 3MP Fisheye Camera |
Recording Time (sec.): Pre-Record: 5 (max. 10), Post-Record: 20 (max. 300) |
Recording Stream: Single |
Recording Mode: Continuous, Schedule, Manual, Event, Activity Adaptive Streaming |
Recording Setting: Recycle (unit: Day) |
Recording Path: Local Path |
Record Video Format: 3GP |
LiveView (Local Display) | Stream Application: Auto Adaptive Stream |
LiveView Display: |
8 Channel |
Multi Layout display: 1x1, 1x3 (Corridor Format), 2x2, 3x3, 1+5, 1+3, 1+1+3 (1P), 1+3+3 (1P) |
Monitor Enhancement: OSD Display (NVR), OSD Display (Camera), Camera Information, Remote I/O Control, Event Notification, Aspect Ratio, Fisheye Dewarp (FE8173): 1O, 1P, 1R, 1O3R, PiP Control |
PTZ Control: Panel Control |
PTZ Operation: Direction Control, Home, Zoom, Focus, Iris, Preset, Patrol (Group) |
Snapshot: JPEG |
Video Clip Export: EXE |
Playback (Local Display) | Playback Display: |
1 Channel |
Layout display: 1x1 |
Playback Control: Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control |
Search Mode: Calendar, Event, Timeline, Timeline Scale, Stortboard |
Monitor Enhancement: OSD Display (Camera), Event Notification, Aspect Ratio, Fisheye Dewarp (FE8173): 1O, 1P, 1R, 1O3R, PiP Control |
Snapshot: JPEG |
Video Clip Export: EXE |
LiveView (Remote) | Stream Application: Stream Selection |
Audio Capability: One Way |
LiveView Display: |
8 Channel |
Multi Layout display: 1x1, 2x2, 3x3, 1+3, 1+5 |
Monitor Enhancement: OSD Display (NVR), Drag & Drop, Image Freeze, Audio Control, Remote I/O Control, Event Notification, Bookmark, Fisheye Dewarp (FE8173): 1O, 1P, 1R, PiP Control |
PTZ Control: Panel Control |
PTZ Operation: Direction Control, Home, Zoom, Focus, Iris, Preset, Patrol (Group) |
Snapshot: JPEG |
Video Clip Export: EXE |
Playback (Remote) | Playback Display: |
4 Channel |
Multi Layout display: 1x1, 2x2, 1+3 |
Playback Control: Regular (Play, Pause, Stop), Next Frame, Speed Control |
Search Mode: Calendar, Timeline, Timeline Scale, Bookmark |
Monitor Enhancement: |
OSD Display (NVR), Drag & Drop, Audio Control, Fisheye Dewarp (FE8173): 1O,1P,1R, PiP Control |
Snapshot: JPEG |
Video Clip Export: EXE |
Alarm Management | Schdule Type: Continuous, Schedule, Manual |
Event: Motion Detecton, PIR Detection, Tampering Detection, Digital Input (Camera), Digital Output (Camera), Connection Abnormal, Storage Abnormal, Storage Full |
Action: Record, Email (Text), Email (Snapshot), FTP, Digital Output (Camera), Buzzer, PTZ Control (Go to Preset) |
Recording Time (sec.): Pre-Record: 5 (max. 10), Post-Record: 20 (max. 300) |
Backup | Manual: USB Dongle (FAT Format) |
System (Software Information) | User Management: |
User Account: 10 |
User Account Time Limit: 10 mins |
User Level: Administrator / Regular User |
User Feature Definition: By Camera |
Log: System, Recording, User, Error |
Date&Time: Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time, Smart FAN Speed |
Firmware: Manual update |
Refault Default: Supported |
Backup/Restore (Configuration): Supported |
Language: Czech, English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese |
Camera Intergration | Insert Camera: Manual, Search |
Video (Media) Setting: Compression, Resolution, FPS, Video Quality |
Image Setting: |
Image Display |
Image Adjustment |
PTZ Control: Panel Control |
PTZ Operation: Direction Control, Home, Preset, Patrol (Group) |
Motion Detection: Supported |
Activity Adaptive Stream: Supported |
Device Intergration | UPS: APC Model Compatible |
