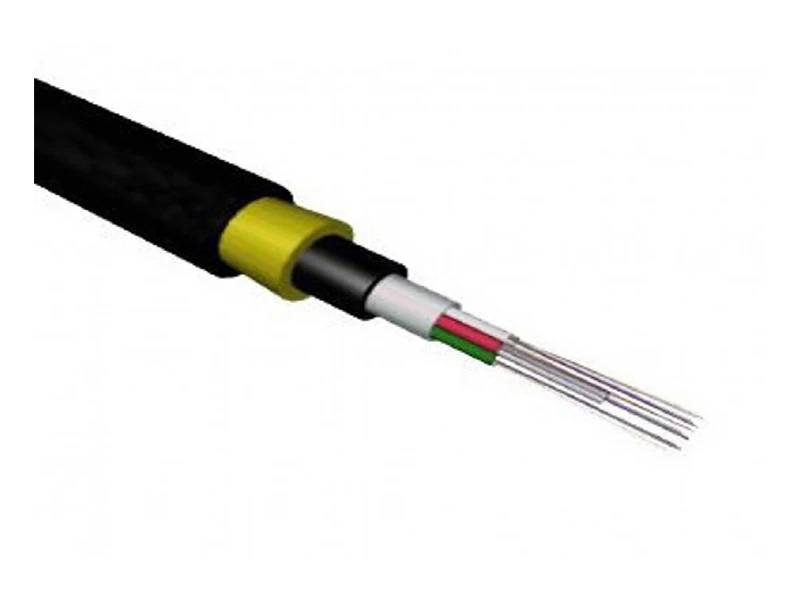

ORing 8 Core 9/125 Sm Tek Tüplü Çelik Zırhlı Fiber Optik Kablo
Özellikler
Ürün Kodu : FO108S
Teknik Özellikler
| ÖZELLİKLER | BİRİM | DEĞERLER | TEST STANDARTLARI |
| TENSILE STRENGTH AT BREAK | kN | >1.2 | EN 60794.1.E1 |
| BREAKING TENSILE STRENGTH | kN | >1.5 | EN 60794.1.E1 |
| CRUSH RESISTANCE | N/cm | >200 | EN 60794.1.E3 |
| REPEADING BENDING RADIUS | mm | <20xD | EN 60794.1.E6 |
| SINGLE BENDING RADIUS | mm | <15xD | EN 60794.1.E6 |
| TORSION | +90° C,8 | possitive | EN 187 000 M 508 |
| IMPCAT | kN | >1 | EN 187000 M 504 |
| TEMPERATURE | EN 60794.1.E11 | ||
| OUTER SHEATH | |||
| DENSITY | g/cm³ | >20 | ASTM D 638 |
| TENSILE STRENGTH AT BREAK | N/mm² | >400 | ASTM D 638 |
| ELONGATION AT BREAK | % | 2.Eki | ASTM D 1693 |
| E.S.C.R. (%10 lgepal C-630) | >500 hours | 2.Eki | ASTM D 746 |
| BREAKING COLD | <-75°C | 2.5+0.5 | ASTM D 1603 |
| CARBON BLACK RATE | % | <0.950 | ASTM D 792 METOT A |
| OXIGEN INDUCTION TIME | 200°C | >25 | IEC 811.4.2 B |
| TUBE GEL | |||
| DENSITY (25°C) | g/cm³ | +0.05 | DIN 51 757 |
| DROP POINT (24 HOUR) | °C | aooropriate | IEC 811.5.1 B |
| DRIP POINT (24 HOUR) | °C | >70 | REA PE 39 |
| FLASH POINT | °C | >230 | ISO 2592 |
| OIL SEPERATION (150°C, 24 HOUR | % | FTM STD 791 C | |
| VOLATILITY | % | <2 | FTM STD 791 C |
| WATER ARMOUNT | % | <0.05 | DIN 51 777 |
| ACID VALUE (100°C) | % (mg KOH/g) | <0.01 | DIN 53 402 |
| ABRATION | posıtıve | IEC 811.5.1 | |
| PENETRATION (25°C / -30°C) | 1/10 mm | >150 | ISO 2137 |
| OXIGEN INDUCTION TIME (180°C) | minute | >20 | IEC 811.4.2 B |
| 100-500V (100°) | Ω x m | >10 | ASTM D 1169 |
| 100-500V (23°) | Ω x m | ASTM D 1169 | |
| LOSE TUBE | >10,11 | ||
| DENSITY | g/cm³ | 1.31+0.03 | ISO 1183 |
| WATER ABSORPTION (23°C) | % | <0.45 | DIN 53 495 |
| TENSILE STRENGTH AT BREAK | N/mm² | <30 | ISO 527 |
| ELONGATION AT BREAK | % | >50 | ISO 527 |
| E-MODULUS | N/mm² | >2200 | ISO 527 |
| SHORE | Shore D | >78 | DIN 53 505 |
| MELTING TEMPERATURE (DSC) | °C | >220 | ISO 3146 C |
| LIN. THERMAL EXT. COEFF. (-23<<+80°C) | °K-1 x10-4 | <1.3 | |
| E-GLASS YARN | |||
| DENSITY | g/cm³ | offered | offered |
| TENSILE STRENGTH AT BREAK | % | offered | offered |
| ELONGATION AT BREAK | N/mm² | offered | offered |
| E-MODULUS | % | offered | offered |
| ARMOURING | |||
| STEEL THICKNESS | nm | 0.155±0.015 | ASTM A 623 M |
| TENSILE STRENGTH AT BREAK | N/mm² | >300 | ASTM E 6892 |
| ELONGATION AT BREAK | % | >15 | ASTM E 6892 |
| THICKNESS OF COATING | nm | >0.050±0.01 | ASTM A 623 M |
| DC RESISTANCE | ohm/km | <40 | ASTM A 6892 |
