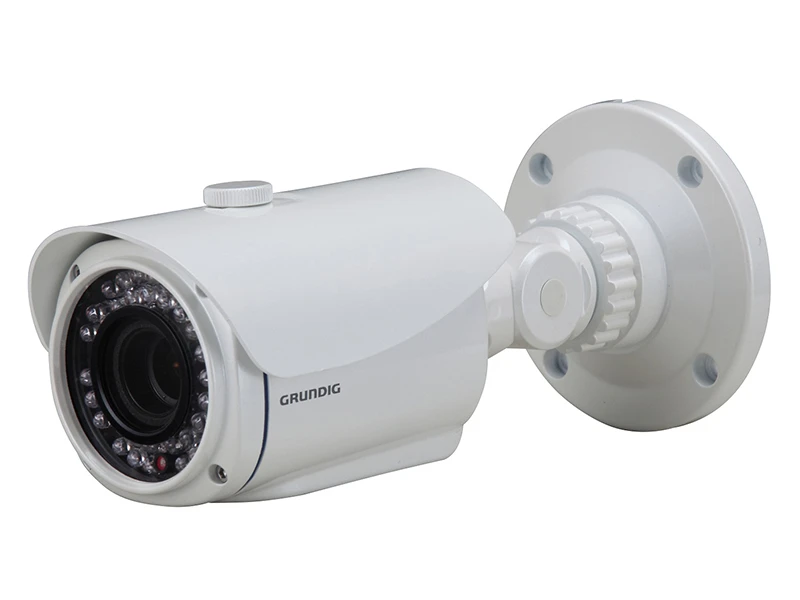

Grundig GCH K1327T 1 HD SDI Bullet Kamera
Özellikler
- Ex-SDI mode to increase transmission distance
- Full HD, 1920 x 1080p, up to 50/60 fps over coax
- WDR (Wide Dynamic Range) for extreme backlight situations
- Video Enhancement: BLC, HLC, DNR
- 0 Lux: Integrated LED IR Illuminator to see even in total darkness
- 4-axis wall mount arm, for flexible installation
- IP 66 Certification
- Externally Adjustable Vario Focal Lens and DC Level
- Power Input AC24V/DC12V
Teknik Özellikler
- Image Sensor: 1/3" CMOS Sony Exmor 2 Megapixel
- Pixels - Total: 1952(H) x 1116(V)
- Pixels - Effective: 1944(H) x 1104(V)
- Scanning System: Progressive
- Image Size: 1920x1080, 1280x720
- Frame Rate: 30/60, 25/50 fps at 1080p, 30/60, 25/50 fps at 720p
- Compliant: SMPTE-292, Ex-SDI
- Sensitivity Colour: 0.5 Lux @ F1.2 (IRE50)
- Sensitivity B&W: 0 Lux LED IR on
- Sens Up: Off ~ x32, auto
- S/N Ratio: >50 dB
- Shutter Speed: AUTO, FLK, Manual 1/25 ~ 1/30,000
- Col/B&W: On/Off/Auto/Ext, IR-cut filter removable (ICR)
- Lens Focal Length: 2.8 ~ 10 mm
- Lens Drive Type: DC Auto Iris
- IR LED: 42 pcs.
- Smart IR: Off / On (1~20)
- Max. IR Distance: 30/45 m (according to scene reflexion)
- OSD: Yes, English
- Camera ID: Off / On, 8 character
- Flip/Mirror: On/Off
- Gamma correction: 0.45 / 0.55 / 0.65 / 0.75
- WDR: Off/Low/Middle/High
- Number of Privacy Zones: 16 (standard method) + 8 (polygonal method)
- BLC Back Light: BLC, HSBLC, OFF
- Digital Noise Reduction (DNR): Off/Low/Mid/High (Adaptive 3D + 2D)
- Motion Detection: On/ Off/ Sensitivity/ Area setting
- Sharpness: Off / On (1~20)
- Digital Zoom: Off/1 ~ 16x
- White Balance: ATW, AWB, AWC, Manual
- De-Fog: Off/Auto/Low/Middle/High
- Presets: Indoor, Outdoor, Lowlight, Hallway, Lobby, Elevator
- Protection Rating: IP66
- Video Outputs: 1 Ch HD-SDI BNC or 1 Ch Composite BNC
- Operating Temperature: -10°C ~ +50°C
- Storage Temperature: -20°C ~ +60°C
- Humidity: less than 85%
- Supply Voltage: 12 Vdc / 24 Vac
- Power Consumption: 9 W
- Weight: 1.14 kg
- Dimensions w*h*d: 99 x 223.5 mm
Grundig GCH K1327T 1 HD SDI Bullet Kamera PDF Dosyası684.29 KB
