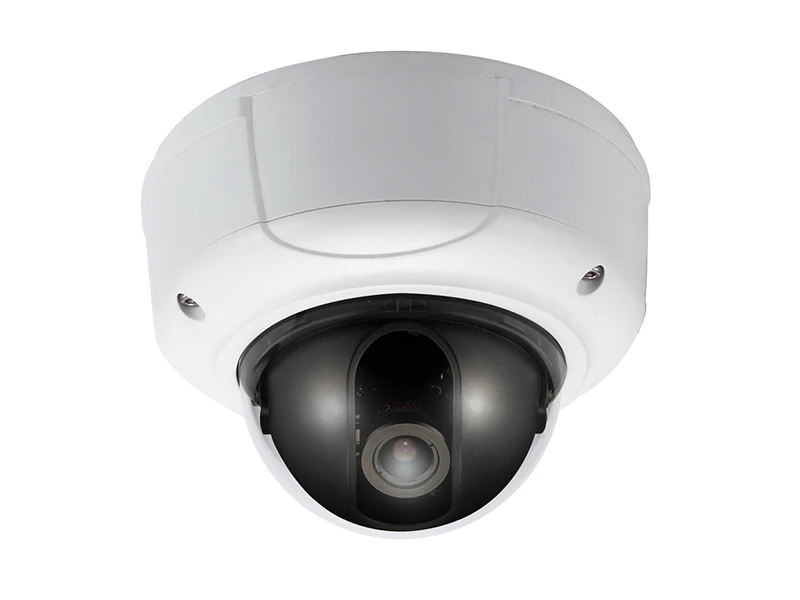

Dahua DH HDC HDB3200 HD SDI Dome Kamera
Özellikler
Teknik Özellikler
Model | DH-HDC-HDB3200P | DH-HDC-HDB3200N |
Camera | ||
Image Sensor | 1/3" 2Megapixel Exmor CMOS | |
Effective Pixels | 1920(H) x1080(V) | 1920(H) x1080(V) |
Electronic Shutter | Auto/Manual(1/3~1/10000s) | Auto/Manual(1/4~1/10000s) |
Image Resolution | 25fps @ 1080P(1920×1080)/720P (1280×720); | 30fps @ 1080P(1920×1080)/
720P (1280×720); |
50fps @ 720P(1280×720) | 60fps @ 720P(1280×720) | |
Min. Illumination | Color: 0.1Lux/F1. 4, B/W: 0.01Lux/F1. 4 | |
S/N Ratio | >52dB | |
Video Output | 1Vp-p Composite Output (75Ω/BNC) | |
HD-SDI Video Output | 1ch HD-SDI high -definition video
(SMPTE 292M standard) | |
Camera Features | ||
OSD | English, Chinese(Simplified/Traditional) | |
Day/Night | Auto(ICR) / Color / B/W | |
Backlight Compensation | BLC / DWDR | |
White Balance | Auto/ Manual | |
Gain Control | Auto / Manual | |
Noise Reduction | 2D | |
Picture Adjustment | Mirror / Brightness / Contrast / Sharpness / Hue / Gain | |
Lens | ||
Focal Length | 3.3~12mm | |
Max Aperture | F1.4 | |
Focus Control | Manual | |
Angle of View | H: 79.3°(Wide)~29.8°(Tele) | |
Lens Type | Manual / Auto iris (DC) | |
Mount Type | CS | |
Auxiliary Interface | ||
RS485 | 1 Port | |
General | ||
Power Supply | AC24V±10% / DC12V±10% | |
Power Consumption | <12w td=""> | |
Working Environment | -10 ºC ~+60 ºC, 10%~90% | |
Dimensions | Φ160mm×118.5mm | |
Weight | 1.25Kg |
