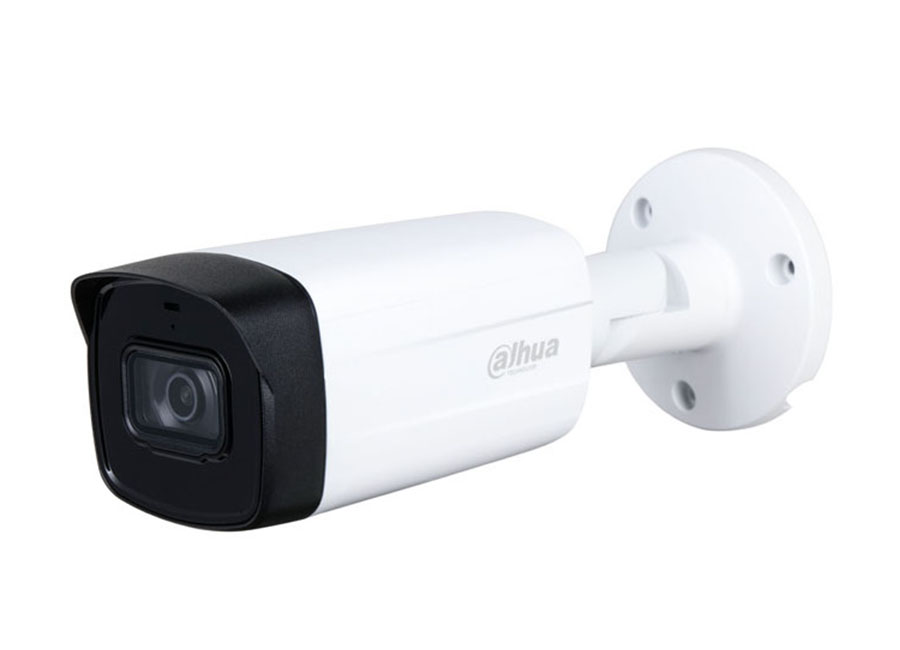

Dahua HAC-HFW1200TH-I8-A-POC HDCVI Bullet Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Pixel | 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s |
| NTSC: 1/30 s–1/100000 s | |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.02Lux/F1.9, 30IRE, 0Lux IR on |
| Illumination Distance | 80m (262.5 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 2 (IR light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° |
| Tilt: 0°–90° | |
| Rotation: 0°–360° | |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 3.6mm; 6mm; 8mm |
| Max. Aperture | F1.9 |
| Field of View | 3.6mm:D:100°; H:84°;V:45° |
| 6mm:D:60°; H:56°;V:30° | |
| 8mm:D:46°; H:40°;V:22° | |
| Iris Type | Fixed iris |
| Close Focus Distance | 3.6mm:0.8m(2.6 ft) |
| 6mm:2m (6.6 ft) | |
| 8mm:3.5m(11.5 ft) | |
| DORI Distance | 3.6mm: D: 49.7m(163.1 ft); O: 19.9m(65.3 ft); R: 9.9m(32.5 ft); I: 5m(16.4 ft) |
| 6mm: D: 82.8m (271.7 ft); O: 33.1m(108.6 ft); R: 16.6m (54.5 ft); I: 8.3m(27.2 ft) | |
| 8mm: D: 110.3m (361.9 ft); O: 44.1m(144.7 ft); R: 22.1m(72.5 ft); I: 11.0m(36.1 ft) | |
| Video | |
| Frame Rate | CVI: |
| 1080P@25/30fps; | |
| 720P@25/30fps; | |
| AHD: | |
| 1080P@25/30fps; | |
| 720P@25/30fps; | |
| TVI: | |
| 1080P@25/30fps; | |
| 720P@25/30fps; | |
| CVBS: 960H | |
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/DWDR/HLC |
| White Balance | Auto/Area WB |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4) |
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in mic |
| Power | |
| Power Supply | POC (only CVI)/12V±30% DC |
| Power Consumption | Max 4.9W (12V DC, IR on); PoC (AT) |
| Environment | |
| Operating Temperature | –40°C to +60°C (–40°F to 140°F);﹤ 95% |
| (non-condensation) | |
| Storage Temperature | –40°C to +60°C (–40°F to 140°F);﹤ 95% |
| (non-condensation) | |
| Protection Grade | IP67 |
| Structure | |
| Casing | Mental front cover+plastic main body+mental bracket |
| Camera Dimensions | 240.7 mm × 90.7 mm × 90.4 mm ( 9.48" × 3.57" × 3.56" ) |
| Net Weight | 0.43 kg (0.90 lb) |
| Gross Weight | 0.64 kg (1.40 lb) |
Dahua HAC-HFW1200TH-I8-A-POC HDCVI Bullet Kamera Pdf Dosyası431.72 KB
