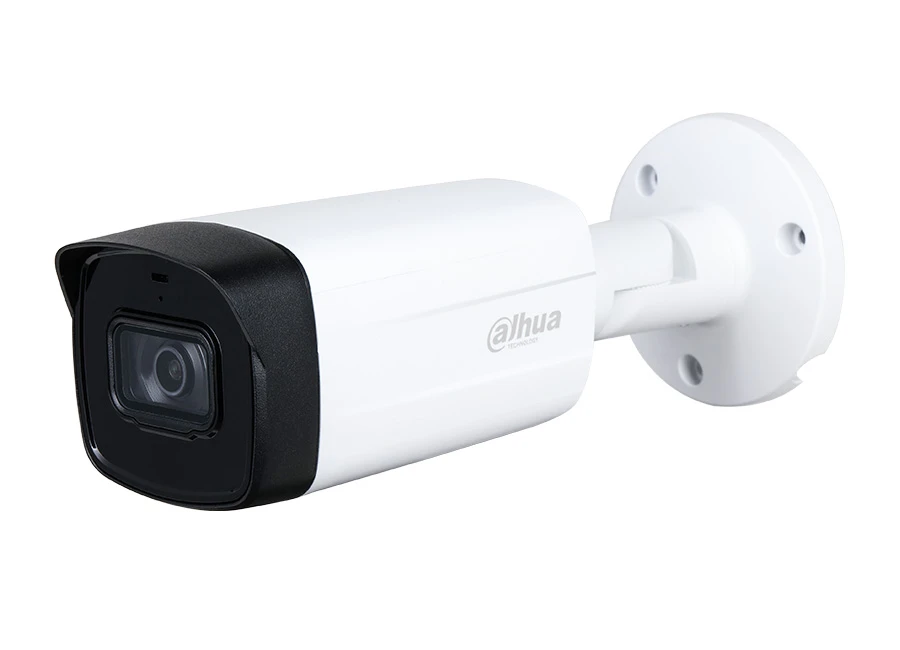

Dahua HAC-HFW1231TM-I8-A HDCVI Bullet Kamera

Özellikler

Max 30 fps@1080p>;
Starlight, 130 dB true WDR, 3D NR
3.6 mm fixed lens (2.8 mm, 6 mm, 8 mm optional)
CVI/CVBS/AHD/TVI switchable
Super Adapt
Built-in mic
Max. IR length 80 m, Smart IR
IP67, DC 12 V

Teknik Özellikler

Camera
Image Sensor	1/2.8" CMOS
Max. Resolution	1920 (H) × 1080 (V)
Pixel	2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s–1/100,000 s
	NTSC: 1/30 s–1/100,000 s
S/N Ratio	> 65 dB
Min. Illumination	0.002 Lux/F1.6, 30 IRE, 0 Lux IR on
Illumination Distance	80 m (262.5 ft)
Illuminator On/Off Control	Auto; manual
Illuminator Number	2 (IR light)
Pan/Tilt/Rotation Range	Pan: 0°–360°
	Tilt: 0°–90°
	Rotation: 0°–360°
Lens
Lens Type	Fixed lens
Mount Type	M12
Focal Length	2.8 mm; 3.6 mm; 6 mm; 8 mm
Max. Aperture	F1.6
Field of View	2.8 mm: H: 107°; V: 56°; D: 127°
	3.6 mm: H: 86°; V: 46°; D: 101°
	6 mm: H: 54°; V: 29°; D: 63°
	8 mm: H: 41°; V: 23°; D: 47°
Iris Type	Fixed iris
Close Focus Distance	2.8 mm: 0.7 m (2.3 ft)
	3.6 mm: 1.1 m (3.6 ft)
	6 mm: 2.5 m (8.2 ft)
	8 mm: 4 m (13.1 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identfiy
	2.8 mm	43.9 m (144 ft)	17.5 m (57.4 ft)	8.8 m(28.9 ft)	4.4 m(14.4 ft)
	3.6 mm	53.7 m (176.2 ft)	21.5 m (70.5 ft)	10.7 m (35.1 ft)	5.4 m(17.7 ft)
	6 mm	82.8 m (271.7 ft)	33.1 m (108.6 ft)	16.6 m (54.5 ft)	8.3 m(27.2 ft)
	8 mm	110.3 m (361.9 ft)	44.1 m (144.7 ft)	22.1 m (72.5 ft)	11 m(36.1 ft)
Video
Frame Rate	CVI:
	PAL: 1080p@25 fps;
	NTSC: 1080p@30 fps;
	AHD:
	PAL: 1080p@25 fps;
	NTSC: 1080p@30 fps;
	TVI:
	PAL: 1080p@25 fps;
	NTSC: 1080p@30 fps;
	CVBS:
	PAL: 960 × 576H;
	NTSC: 960 × 480H
Resolution	1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night	Auto switch by ICR
BLC	BLC/WDR/HLC
WDR	130 dB
White Balance	Auto; Area WB
Gain Control	Auto; manual
Noise Reduction	3D NR
Smart IR	Yes
Mirror	Off/On
Privacy Masking	Off/On (8 area, rectangle)
Certifications
Certifications	CE (EN55032, EN55024, EN50130-4)
	FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
	UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input	One channel built-in mic
Power
Power Supply	12 V ±30% DC
Power Consumption	Max 5.1 W (12 V DC, IR on)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
Storage Temperature	–40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
Structure
Casing	Mental throughout the whole casing
Camera Dimensions	240.7 mm × 90.7 mm × 90.4 mm (9.48" × 3.57" × 3.56")
Net Weight	0.65 Kg (1.43 lb)
Gross Weight	0.87 Kg (1.92 lb)
