Açıklama

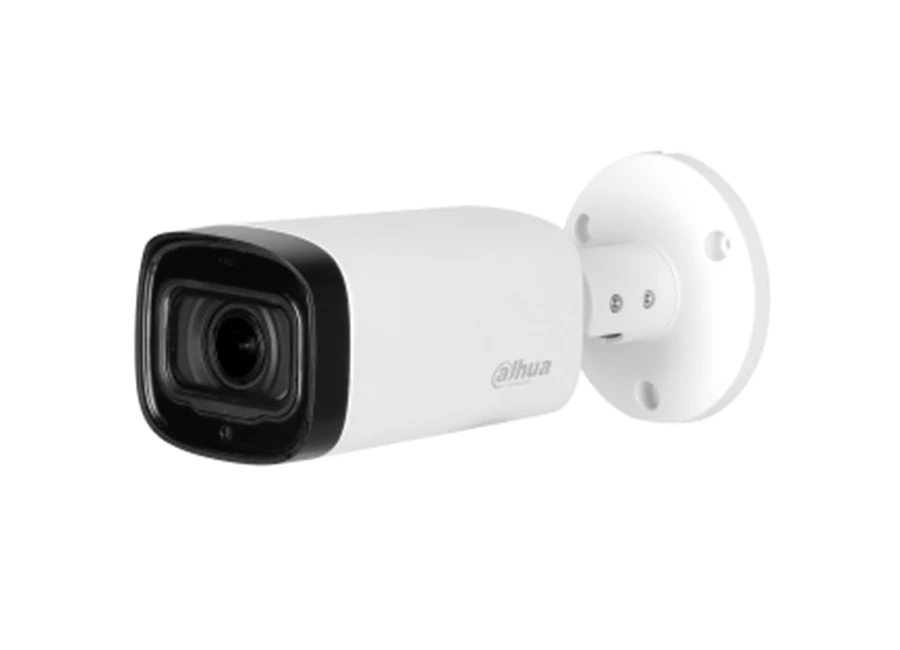

Dahua HAC HFW1801R Z IRE6 A HDCVI Bullet Kamera
Özellikler
- 120dB true WDR, 3D NR
- Max. 4K resolution
- CVI/CVBS/AHD/TVI switchable
- 2.7-13.5mm motorized lens
- Built-in mic (-A)
- Max. IR length 60m, smart IR
- IP67, 12V ±30% DC
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/2.7 inch CMOS | ||||
| Effective Pixels | 3840 (H)×2160 (V), 4K | ||||
| Electronic Shutter Speed | PAL: 1/3s–1/100000s | ||||
| NTSC: 1/4s–1/100000s | |||||
| Minimum Illumination | 0.03Lux/F1.7, 30IRE, 0Lux IR on | ||||
| IR Distance | Distance up to 60m (196.85ft) | ||||
| IR On/Off Control | Auto;manual | ||||
| IR LED Number | 4 | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
| Tilt: 0°–90° | |||||
| Rotation: 0°–360° | |||||
| Lens | |||||
| Lens Type | Motorized vari-focal | ||||
| Mount Type | φ14 | ||||
| Focal Length | 2.7mm–13.5mm | ||||
| Max. Aperture | F1.7 | ||||
| Angle of View | Horizontal: 105°–33° | ||||
| Vertical: 56°–18° | |||||
| Diagonal: 126°–38° | |||||
| Iris Type | Fixed iris | ||||
| Close Focus Distance | 0.8m (2.62ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| Wide-angle | 90m (295ft) | 36m (118ft) | 18m (59ft) | 9m (30ft) | |
| Telephoto | 264m (866ft) | 106m (348ft) | 53m (174ft) | 26m (85ft) | |
| Video | |||||
| Video Frame Rate | CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps; | ||||
| CVBS: PAL/NTSC | |||||
| AHD: 5M@20fps; 4M@25fps/30fps | |||||
| TVI: 5M@20fps; 4M@25fps/30fps | |||||
| Resolution | 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480) | ||||
| Day/Night | Auto switch by ICR | ||||
| BLC | BLC/HLC/WDR | ||||
| WDR | 120dB/WDR | ||||
| White Balance | Auto; manual | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 2D&3D NR | ||||
| Smart IR | Yes | ||||
| Electronic Defog | Yes | ||||
| Digital Zoom | 4X | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN55032, EN55024, EN50130-4) | ||||
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |||||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |||||
| Port | |||||
| Audio Port | One channel built-in mic (-A) | ||||
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Power | |||||
| Power Supply | 12V ±30% DC | ||||
| Power Consumption | Max 11W (12V DC, IR on) | ||||
| Environment | |||||
| Operating Temperature | -30°C to +60°C (-22°F to 140°F);<95% (non-condensation) | ||||
| Storage Temperature | -30°C to +60°C (-22°F to 140°F);<95% (non-condensation) | ||||
| Protection Grade | IP67 | ||||
| Structure | |||||
| Casing | Metal throughout the whole casing | ||||
| Dimensions | 209.9mm×90.4mm×90.4mm (8.26"×3.56"×3.56") | ||||
| Net Weight | 0.55kg (1.21lb) | ||||
| Gross Weight | 0.7kg (1.54lb) | ||||
Dahua HAC HFW1801R Z IRE6 A HDCVI Bullet Kamera Pdf Dosyası615.53 KB
