Açıklama

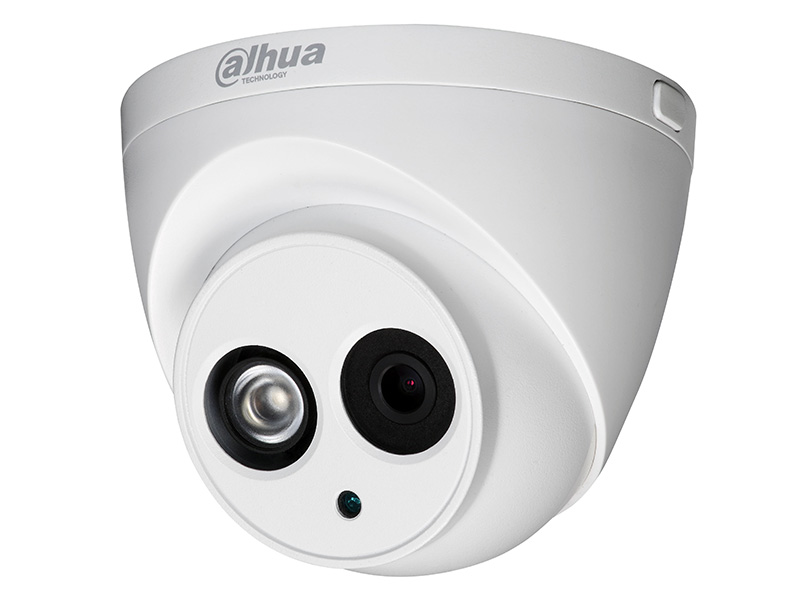

Dahua HAC HDW1200EP 0360B HD CVI Dome Kamera
Özellikler
- 2 Megapiksel 1080P Waterproof IR Dome HD-CVI Kamera
- 3,6mm Lens, 1/2.7" 2MP CMOS,
- 1928(H)×1088(V), 25/30fps @ 1080P,
- 25fps @ 720P, Yüksek Hız, Uzun Mesafe Real-Time İletim,
- HD ve Standard Çözünürlük Seçimi ,
- Gece/Gündüz (ICR), 2D-DNR, AWB, AGC, BLC,
- IR LED G.Mesafesi: 50m, Akıllı IR, IP67, DC 12V,
- 75-3 Koaksiyel kablo ile 800m
Teknik Özellikler
| Camera |
| Model : DH-HAC-HDW1200EP DH-HAC-HDW1200EN |
| Image Sensor : 1/2.7" 2Megapixel CMOS |
| Effective Pixels : 1930(H)×1088(V) |
| Electronic Shutter : 1/50s~1/100,000s 1/60s~1/100,000s |
| Video Frame Rate : 25fps @ 1080P 30fps @ 1080P |
| Synchronization : Internal |
| Mini. Illumination : 0.02Lux/F2.0, 0Lux IR on |
| Video Output : 1-channel BNC HDCVI high definition video output |
| Camera Features |
| Max. IR LEDs Length : 50m, Smart IR |
| Day/Night : Auto(ICR) / Color / B/W |
| Noise Reduction : 2D |
| Lens |
| Focal Length : 3.6mm (6mm optional) |
| Angle of View : H: 89.9º(59.4º) |
| Mount Type : M12 |
| General |
| Power Supply : DC12V±20% |
| Power Consumption : Max 3.6W |
| Working Environment : -30°C~+60°C / Less than 95%RH (no condensation) |
| Transmission Distance : Over 500m via 75-3 coaxial cable |
| Ingress Protection : IP67 |
| Dimensions(W×D×H) : Φ110mm×95.0mm |
| Weight : 0.3kg |
| Material : Metal (inner core) + Plastic (outside) |
Dahua HAC HDW1200EP 0360B HD CVI Dome Kamera PDF Dosyası227.9 KB
