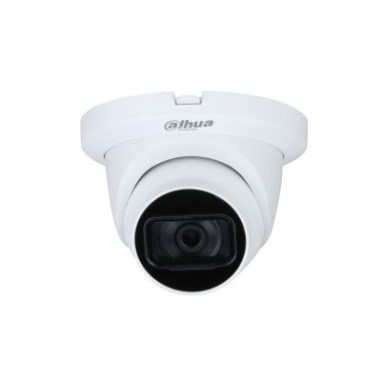

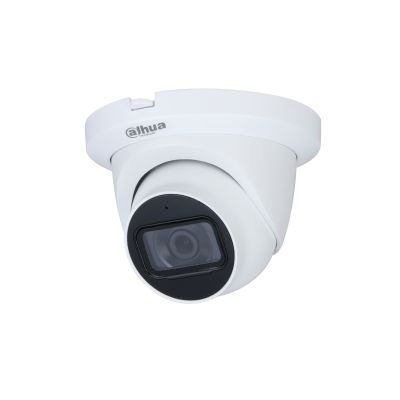

Dahua HAC-HDW1200TMQ-Z(-A) HDCVI Eyeball Kamera
Özellikler
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/2.7 inch CMOS | ||||
| Max. Resolution | 1920(H)×1080(V) | ||||
| Pixel | 2MP | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25s–1/100000s | ||||
| NTSC: 1/30s–1/100000s | |||||
| S/N Ratio | >65dB | ||||
| Min. Illumination | 0.02Lux/F1.7, 30IRE, 0Lux IR on | ||||
| Illumination Distance | 60 m (196.9 ft) | ||||
| Illuminator On/Off Control | Auto; manual | ||||
| Illuminator Number | 2 | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
| Tilt: 0°–78° | |||||
| Rotation: 0°–360° | |||||
| Lens | |||||
| Lens Type | Motorized vari-focal | ||||
| Auto Focus | N/A | ||||
| Mount Type | φ14 | ||||
| Focal Length | 2.7 mm-12 mm | ||||
| Max. Aperture | F1.7 | ||||
| Field of View | Diagonal: 38°– 125° | ||||
| Horizontal: 33°–102° | |||||
| Vertical: 19°– 53° | |||||
| Iris Type | Fixed iris | ||||
| Close Focus Distance | 1.2 m (3.9 ft) | ||||
| DORI Distance | Detect | Observe | Recognize | Identify | |
| 2.7mm | 48.3 m (158.5 ft) | 19.3 m (63.3 ft) | 9.7 m (31.8 ft) | 4.8 m (15.7 ft) | |
| 12mm | 131 m (429.8 ft) | 52.4 m (171.9 ft) | 26.2 m (86.0 ft) | 13.1 m (43.0 ft) | |
Video | |||||
| Frame Rate | CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; | ||||
| AHD: 1080P@25/30fps; 720P@25/30fps; | |||||
| TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; | |||||
| CVBS: 960H | |||||
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480) | ||||
| Day/Night | Auto switch by ICR | ||||
| BLC | BLC/HLC/DWDR | ||||
| WDR | DWDR | ||||
| White Balance | Auto; manual | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 2D NR | ||||
| Smart IR | Yes | ||||
| Electronic Defog | Yes | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) | ||||
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |||||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |||||
| Port | |||||
| Audio Output | One channel built-in mic (-A) | ||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Power | |||||
| Power Supply | 12V ±30% DC | ||||
| Power Consumption | Max 6.1W (12V DC, IR on) | ||||
| Environment | |||||
| Operating Temperature | -30°C to +60°C (-22°F to 140°F);<95% (non-condensation) | ||||
| Storage Temperature | -30°C to +60°C (-22°F to 140°F);<95% (non-condensation) | ||||
| Protection Grade | IP67 | ||||
| Structure | |||||
| Casing | Metal dome+metal cover+plastic decorative ring | ||||
| Camera Dimensions | Φ135 mm×109 mm ( Φ5.31"×4.28" ) | ||||
| Net Weight | 0.52 Kg (1.15 lb) | ||||
| Gross Weight | 0.69 Kg (1.52 lb) | ||||
Dahua HAC-HDW1200TMQ-Z(-A) HDCVI Eyeball Kamera Pdf Dosyası611.17 KB
