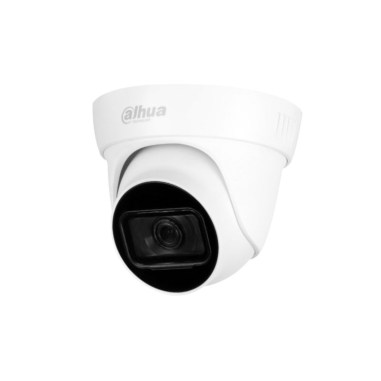

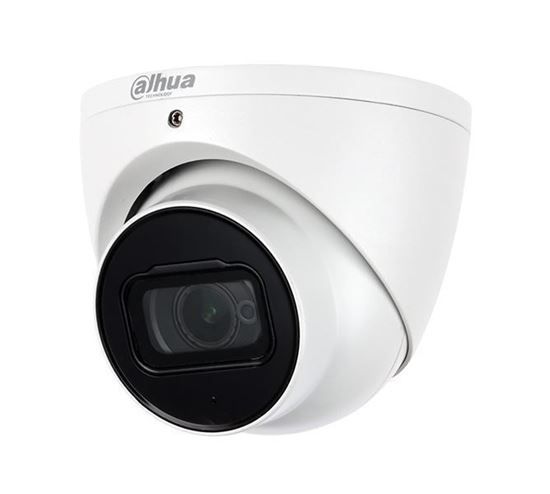

Dahua HAC-HDW1200TRQ(-A) HDCVI Eyeball Kamera
Özellikler
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/2.7 inch CMOS | ||||
| Max. Resolution | 1920(H)×1080(V) | ||||
| Pixel | 2MP | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25s–1/100000s | ||||
| NTSC: 1/30s–1/100000s | |||||
| S/N Ratio | >65dB | ||||
| Min. Illumination | 0.02 Lux/F1.9, 30IRE, 0 Lux IR on | ||||
| Illumination Distance | 25 m (82.0 ft) | ||||
| Illuminator On/Off Control | Auto; manual | ||||
| Illuminator Number | 2 (IR) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
| Tilt: 0°–78° | |||||
| Rotation: 0°–360° | |||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm | ||||
| Max. Aperture | 2.8 mm: F1.9 | ||||
| 3.6 mm: F2.0 | |||||
| Field of View | 2.8 mm: H: 101°; V: 54° ; D: 119° | ||||
| 3.6 mm: H: 84°; V: 45°; D: 100° | |||||
| Iris Type | Fixed iris | ||||
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft) | ||||
| 3.6 mm: 0.8 m (2.62 ft) | |||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 38.6 m (126.6 ft) | 15.4 m (50.5 ft) | 7.7 m (25.3 ft) | 3.9 m (12.8 ft) | |
| 3.6 mm | 49.7 m (163.1 ft) | 19.9 m (65.3 ft) | 9.9 m (32.5 ft) | 5 m (16.4 ft) | |
| Video | |||||
| Frame Rate | CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; | ||||
| AHD: 1080P@25/30fps; 720P@25/30fps; | |||||
| TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; | |||||
| CVBS: 960H | |||||
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480) | ||||
| Day/Night | Auto switch by ICR | ||||
| BLC | BLC/HLC/DWDR | ||||
| WDR | DWDR | ||||
| White Balance | Auto; manual | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 2D NR | ||||
| Smart IR | Yes | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) | ||||
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |||||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |||||
| Port | |||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Audio Interface | Built-in Mic (-A) | ||||
| Power | |||||
| Power Supply | 12V ±30% DC | ||||
| Power Consumption | Max 2.6 W (12V DC, IR on) | ||||
| Environment | |||||
| Operating Temperature | -40°C to +50°C (-40°F to 122°F);<95% (non-condensation) | ||||
| Storage Temperature | -40°C to +50°C (-40°F to 122°F);<95% (non-condensation) | ||||
| Protection Grade | IP50 | ||||
| Structure | |||||
| Casing | Plastic | ||||
| Dimensions | Φ97.1 mm × 93.0 mm (Φ3.82" × 3.66") | ||||
| Net Weight | 0.17 Kg (0.37lb) | ||||
| Gross Weight | 0.23 Kg (0.51lb) | ||||
Dahua HAC-HDW1200TRQ(-A) HDCVI Eyeball Kamera Pdf Dosyası641.87 KB
