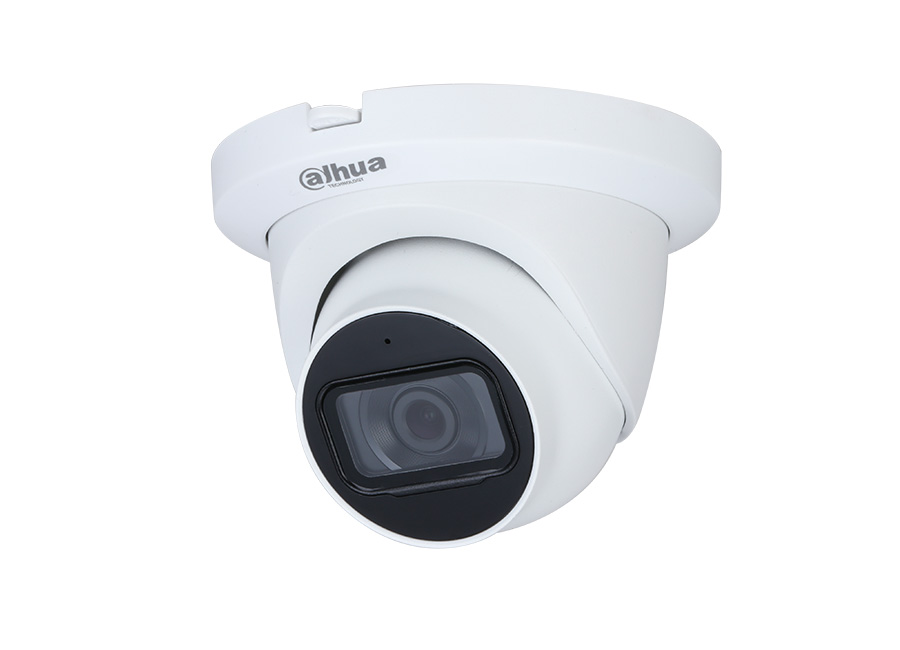

Dahua HAC-HDW1231TLMQ(-A) HDCVI Eyeball Kamera
Özellikler
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/2.8" CMOS | ||||
| Max. Resolution | 1920 (H) × 1080 (V) | ||||
| Pixel | 2MP | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s | ||||
| NTSC: 1/30 s–1/100,000 s | |||||
| S/N Ratio | > 65 dB | ||||
| Min. Illumination | 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on | ||||
| Illumination Distance | 30 m (98.4 ft) | ||||
| Illuminator On/Off Control | Auto; manual | ||||
| Illuminator Number | 1 (IR light) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
| Tilt: 0°–78° | |||||
| Rotation: 0°–360° | |||||
| Lens | |||||
| Lens Type | Fixed lens | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm | ||||
| Max. Aperture | F1.6 | ||||
| Field of View | 2.8 mm: H: 107°; V: 56°; D: 127° | ||||
| 3.6 mm: H: 86°; V: 46°; D: 101° | |||||
| Iris Type | Fixed iris | ||||
| Close Focus Distance | 2.8 mm: 0.7 m (2.3 ft) | ||||
| 3.6 mm: 1.1 m (3.6 ft) | |||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 43.9 m (144 ft) | 17.5 m (57.4 ft) | 8.8 m(28.9 ft) | 4.4 m(14.4 ft) | |
| 3.6 mm | 53.7 m (176.2 ft) | 21.5 m (70.5 ft) | 10.7 m (35.1 ft) | 5.4 m(17.7 ft) | |
| Frame Rate | CVI: | ||||
| PAL: 1080p@25 fps; | |||||
| NTSC: 1080p@30 fps; | |||||
| AHD: | |||||
| PAL: 1080p@25 fps; | |||||
| NTSC: 1080p@30 fps; | |||||
| TVI: | |||||
| PAL: 1080p@25 fps; | |||||
| NTSC: 1080p@30 fps; | |||||
| CVBS: | |||||
| PAL: 960 × 576H; | |||||
| NTSC: 960 × 480H | |||||
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | ||||
| Day/Night | Auto switch by ICR | ||||
| BLC | BLC/WDR/HLC | ||||
| WDR | 130 dB | ||||
| White Balance | Auto; Area WB | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 3D NR | ||||
| Smart IR | Yes | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN55032, EN55024, EN50130-4) | ||||
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |||||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |||||
| Port | |||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Audio Input | One channel built-in mic (-A) | ||||
| Power | |||||
| Power Supply | 12 V ±30% DC | ||||
| Power Consumption | Max 3.1 W (12 V DC, IR on) | ||||
| Environment | |||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation) | ||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation) | ||||
| Protection Grade | IP67 | ||||
| Structure | |||||
| Casing | Metal dome+metal cover+plastic decorative ring | ||||
| Camera Dimensions | Φ109.9 mm × 88.1 mm (Φ4.33" × 3.47") | ||||
| Net Weight | 0.28 kg (0.62 lb) | ||||
Dahua HAC-HDW1231TLMQ(-A) HDCVI Eyeball Kamera Pdf Dosyası452.52 KB
