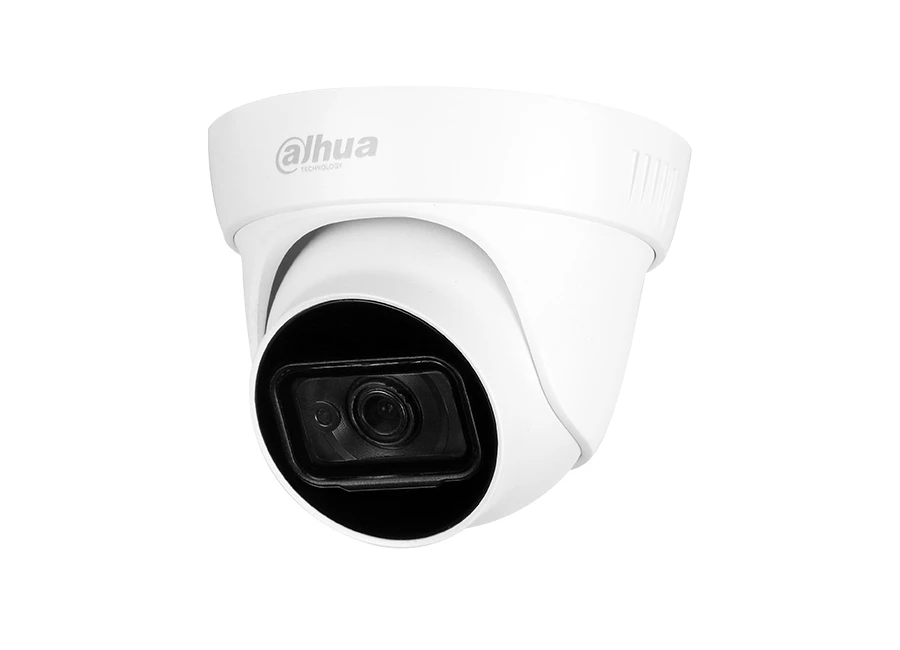

Dahua HAC HDW1400TL A 0280B HDCVI Eyeball Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 2560 (H)×1440 (V), 4MP |
| Electronic Shutter Speed | PAL: 1/25s–1/100000s |
| NTSC: 1/30s–1/100000s | |
| Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on |
| IR Distance | 30m (98.42ft) |
| IR On/Off Control | Auto; manual |
| IR LEDs Number | 1 |
| Pan/Tilt/Rotation Range | Pan: 0°–360° |
| Tilt: 0°–78° | |
| Rotation: 0°–360° | |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8mm; 3.6mm |
| Max. Aperture | F2.0/F2.0 |
| Angle of View | 2.8mm: 115.0°×97.0°×52.0° (diagonal×horizontal×vertical) |
| 3.6mm: 89.5°×76.4°×41.6° (diagonal×horizontal×vertical) | |
| Iris Type | Fixed iris |
| Close Focus Distance | 0.8m (2.62ft)/1.4m (4.59ft) |
| DORI Distance | 2.8mm:D:56m(184ft);O:22m(72ft);R:11m(36ft),I:6m(20ft); |
| 3.6mm:D:80m(262ft),O:32m(105ft),R:16m(52ft),I:8m(26ft); | |
| Video | |
| Video Frame Rate | CVI: |
| PAL: 4M@25fp; 1080P@25fp | |
| NTSC: 4M@30fp; 1080P@30fp | |
| AHD: PAL: 4M@25fp | |
| NTSC: 4M@30fp | |
| TVI: PAL: 4M@25fp | |
| NTSC: 4M@30fp | |
| CVBS: PAL: 960H | |
| NTSC: 960H | |
| Resolution | 4M (2560×1440); 1080P (1920×1080); 960H (960× 576/960×480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 Area, Rectangle) |
| Certification | |
| Certifications | CE (EN55032, EN55024, EN50130-4) |
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |
| Port | |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Port | Built-in mic (-A) |
| Power | |
| Power Supply | 12V±30% DC |
| Power Consumption | Max 4W (12V DC, IR on) |
| Environment | |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F); <95% (non-condensation) |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F); <95% (non-condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Inner core: metal+plastic; cover: plastic |
| Dimensions | Φ97.0mm×85.8mm (Φ3.82"×3.38") |
| Net Weight | 0.22kg (0.49lb) |
| Gross Weight | 0.28kg (0.62lb) |
Dahua HAC HDW1400TL A 0280B HDCVI Eyeball Kamera Pdf Dosyası567.32 KB
