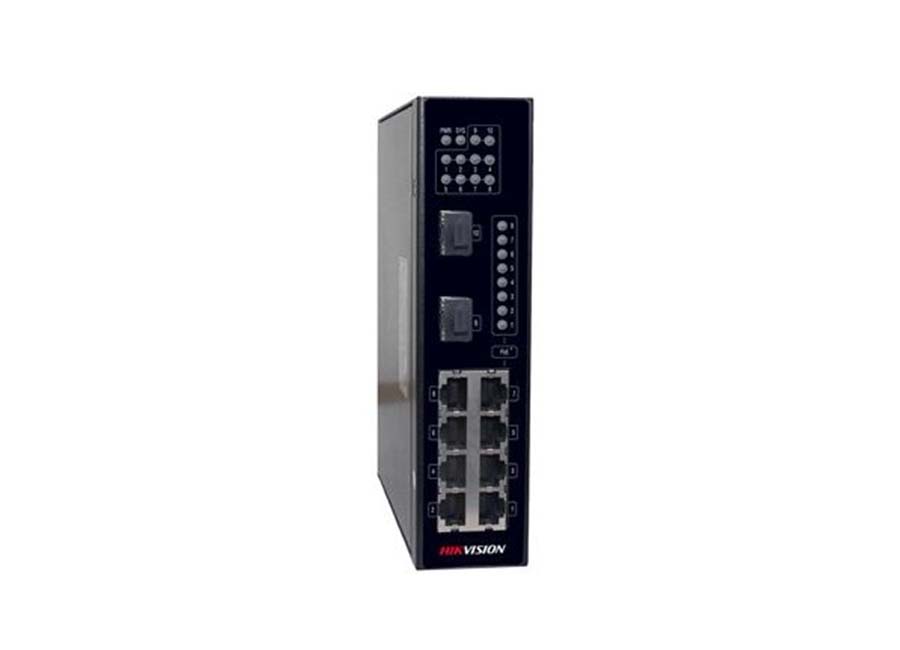

Hikvision DS 3T0310P Endüstriyel PoE Switch
Özellikler
- High performance industrial PoE switch.
- DS-3T0310P supports IEEE 802.3AF/AT standard.
- POE port maximum output power 30W (input voltage is greater than 50V).
- Design of redundant dual power input.
- Working environment temperature of no fan -40℃to +75℃.
- The average failure time reached 400 thousand hours.
- IEEE802.3x full duplex, backpressure flow control
Teknik Özellikler
| Item | |
| Item | DS-3T0310P |
| Backplane | |
| Backplane | 8.8Gbps |
| Forwarding rate | |
| Forwarding rate | 4.2Mpps |
| MAC | |
| MAC | 4K |
| Ports | |
| Ports | 8 100M Base-T ports+2 1000Base-X ports |
| Dimensions(W×D×H)(mm) | |
| Dimensions(W×D×H)(mm) | 170x156x42 |
| Consumption | |
| Consumption | <9W |
| POE/POE+ | |
| POE/POE+ | Support 802.3at/af |
| Power budget | |
| Power budget | ≤240w (Based on power adapter) |
| Install method | |
| Install method | DIN rail |
| Power supply | |
| Power supply | DC：44～57VDC |
| Environment | |
| Environment | Operating temperature/humidity -40℃-75℃，5%-95% non-condensing |
| Storage temperature/humidity -40℃-85℃；5%-95% non-condensing | |
| Protection Grade | |
| Protection Grade | IP40 |
| EMI | |
| EMI | FCC 47 CFR Part 15 Class A |
| EN55022 Class A | |
| EMS | |
| EMS | IEC (EN )61000‐4‐2, Class 4 |
| IEC (EN )61000‐4‐4, Class 2 | |
| IEC (EN )61000‐4‐5, Class 2 | |
| IEC (EN )61000‐4‐11, Class 4 | |
| IEC (EN )61000‐4‐12, Class 4 | |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 200-400 Watt
