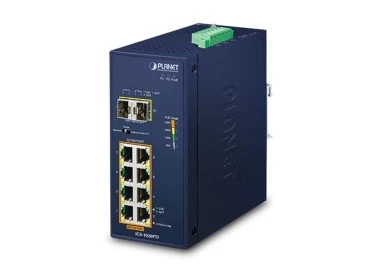

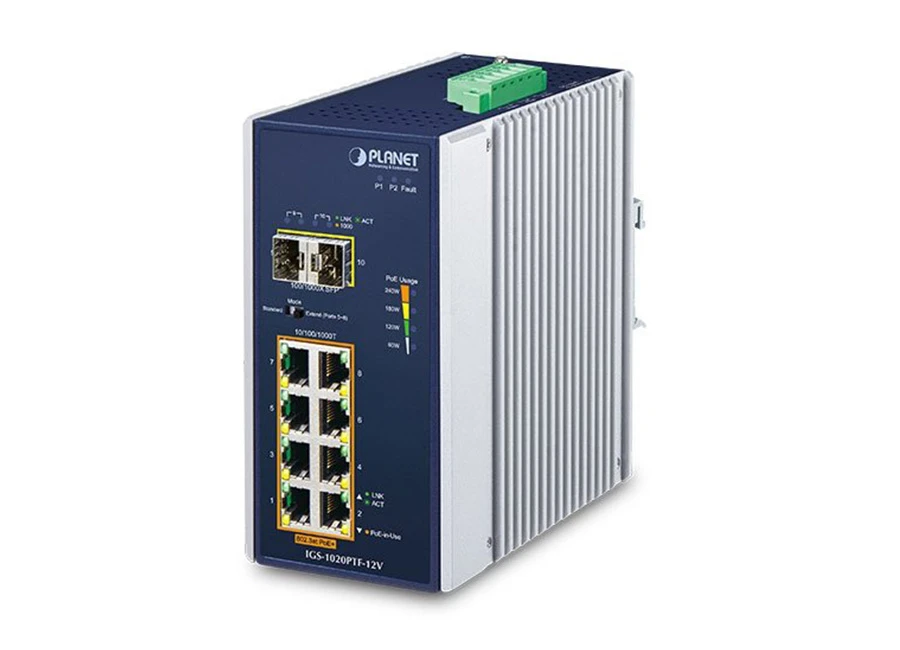

Planet PL-IGS-1020PTF-12V Endüstriyel PoE Switch

Özellikler

Physical Port

Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at/af PoE+ Injector (Ports 1 to 8)
Two 100/1000BASE-X SFP slots for SFP transceiver type auto detection (Ports 9 to 10)

Power over Ethernet

Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 8 ports of IEEE 802.3af/802.3at devices powered
240-watt PoE budget
Supports PoE power up to 30 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters
Industrial Case and Installation
IP30 aluminum case
DIN-rail and wall-mount designs
12~56V redundant power with reverse polarity protection
Supports 6KV DC Ethernet ESD protection
-40 to 75 degrees C operating temperature

Switching

Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
8K MAC address table size
20Gbps switch fabric
9K jumbo frame
Hardware-based DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmission distance of 250m at speed of 10Mbps
Automatic address learning and address aging

Teknik Özellikler

Hardware Specifications
Copper Ports	8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE Injector Ports	8 ports with 802.3at PoE+ injector function (Ports 1 to 8)
SFP Slots	2 1000BASE-SX/LX/BX SFP interfaces (Ports 9 to 10)
SFP Slots	Compatible with 100BASE-FX SFP
Connector	Removable 6-pin terminal block
Connector	Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
DIP Switch	Standard/Extend mode (Extend mode for Ports 5 to 8 only)
LED Indicators	3 x LED for System and Power:
	Green: DC Power 1
	Green: DC Power 2
	Red: Power Fault Alarm
	8 x LED for PoE Copper Port (Ports 1 to 8):
	Green: LNK/ACT (10/100/1000Mbps)
	Amber: PoE-in-Use
	2 x LED for 100/1000X Fiber Port (Ports 9 to 10):
	Green: LNK/ACT (100/1000Mbps)
	Amber: 1000Mbps
	4 x LED for PoE Usage
	Amber: 60W, 120W, 180W and 240W
Power Requirements	12~56V DC, 6A (max.)
Power Consumption	Max. 5.6 watts/19BTU@56V DC input (System)
	Max. 8.4 watts/29BTU@56V DC input (Ethernet Full Loading)
	Max. 252.1 watts/860BTU@56V DC input (Ethernet + PoE Full Loading)
Dimensions (W x D x H)	77 x 106 x 152mm
Weight	1164g
Enclosure	IP30 aluminum case
Installation	DIN-rail/ wall-mount
ESD Protection	6KV
Switch Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	20Gbps
Throughput (packet per second)	14.8Mpps@64bytes
Address Table	8K entries
Buffer Memory	4M bits on-chip buffer memory
Jumbo Frame	9Kbytes
Flow Control	Back pressure for half duplex
Flow Control	IEEE 802.3x pause frame for full duplex
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
Power Pin Assignment	1/2 (+), 3/6 (-)
PoE Power Output	Per port 54V DC
PoE Power Output	Max. 30 watts
PoE Power Budget (max.)	240W maximum @54V DC
	120W maximum@24V DC
	60W maximum@12V DC
Max. Number of Class 3 PDs@25W	8
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall)
	IEC 60068-2-27 (shock)
	IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3z Gigabit Ethernet over Fiber Optic
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Environment
Temperature	Operating: -40~75 degrees C
Temperature	Storage: -40~85 degrees C
Humidity	Operating: 5~90% (non-condensing)
	Storage: 5~90% (non-condensing)
