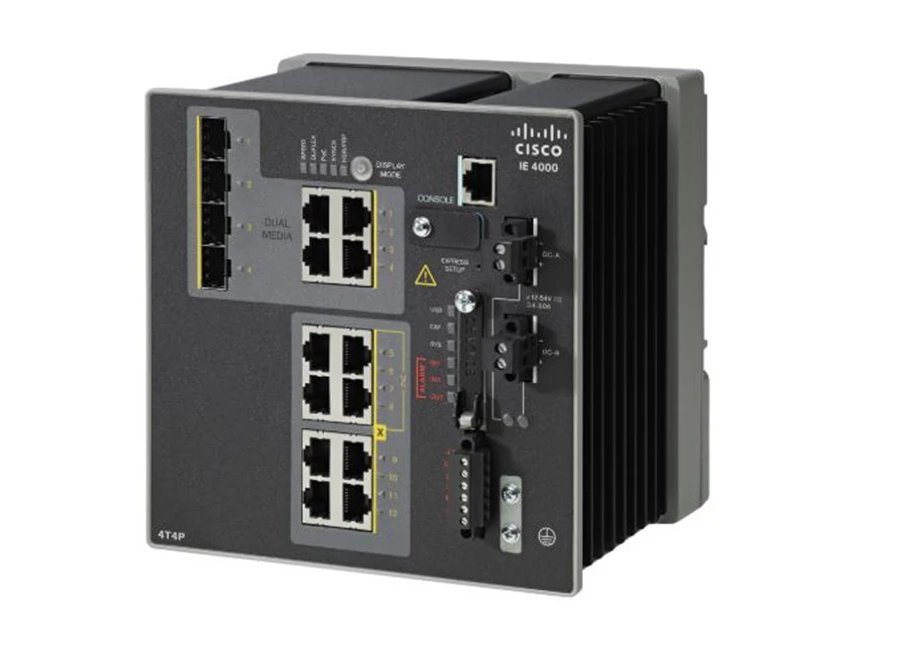

Cisco IE 4000 4T4P4G E Endüstriyel PoE Switch

Teknik Özellikler

Miscellaneous
Included Accessories	1 GB SD card
MTBF	562,300 hours
Compliant Standards	CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223
TAA Compliant	Yes
Dimensions & Weight
Width	6.1 in
Depth	5.1 in
Height	6.1 in
Weight	6.35 lbs
Manufacturer Warranty
Service & Support	Limited warranty - advance parts replacement - 5 years - response time: 10 days
Service & Support Details	Limited warranty - advance parts replacement - 5 years - response time: 10 days
Environmental Parameters
Min Operating Temperature	-40 °F
Max Operating Temperature	167 °F
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	185 °F
General
Device Type	Switch - 12 ports - managed
Enclosure Type	DIN rail mountable
Subtype	Fast Ethernet
Ports	4 x 10/100 + 4 x 10/100 (PoE+) + 4 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE+
Capacity	Virtual interfaces (VLANs): 1000 ¦ IGMP groups: 1000
MAC Address Table Size	16K entries
Routing Protocol	Static IPv4 routing
Remote Management Protocol	SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, HTTP, SSH, CLI
Authentication Method	RADIUS, TACACS+
Features	NAT support, BOOTP support, trunking, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), DHCP relay, Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NTP time synchronization, Class of Service (CoS), Precision Time Protocol (PTP), IGMP filtering, PROFINET v2, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 1613
RAM	512 MB
Flash Memory	128 MB
Expansion / Connectivity
Interfaces	4 x 100Base-TX RJ-45 PoE+ ¦ 4 x 1000Base-T RJ-45 uplink ¦ 4 x SFP uplink ¦ 1 x mini-USB Type B ¦ 1 x console RJ-45 ¦ 4 x 100Base-TX RJ-45
Expansion Slots	1 (total) / 0 (free) x SD Memory Card
Power
Voltage Required	DC 9.6 - 60 V
Electric Current Required	3.7 A
Power Consumption Operational	35 Watt
Software / System Requirements
Software Included	Cisco IOS LAN Base
