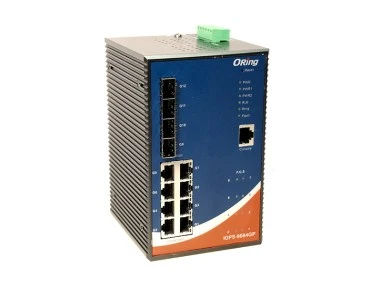

ORing IGPS 9084GP L Endüstriyel PoE Switch

Özellikler

Support O-Ring(recovery time < 30ms over 250 units of connection) andMSTP(RSTP/STP compatible) for Ethernet Redundancy
Open-Ringsupport the other vendor's ring technology in open architecture
O-Chain allow multiple redundant network rings
Support standard IEC 62439-2 MRP*note (Media Redundancy Protocol) function
8 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
Support PoE on/off scheduled configuration
Support PoE alive check and auto reboot fuction
Support IPV6 new internet protocol version
Support EtherNet/IP™ and Modbus TCP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol
Support IP-based bandwidth management
Support application-based QoS management
Support Device Binding security function
Support DOS/DDOS auto prevention
Support auto-negotiation and auto-MDI/MDIX
Support full and half duplex mode
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Support ACL, TACACS+ and 802.1x User Authentication for security
Support 9.6K Bytes Jumbo Frame
Syslog/SNMP Trap notification for warning of unexpected event
Support DBU-01 backup unit device to quickly backup/restore configuration
Web-based ,SNMP v1/v2c/v3, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
Support LLDP Protocol
Robust EMS design, provide 8K ESD and 4KV Surge protection
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

*NOTE: This function is available by request only

Teknik Özellikler

Physical Ports
10/100/1000Base-T(X) with P.S.E. Ports in RJ45 Auto MDI/MDIX	8
100/1000Base-X with SFP port	4
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T
	IEEE 802.3u for 100Base-TX and 100Base-FX
	IEEE 802.3ab for 1000Base-T
	IEEE 802.z for 1000Base-X
	IEEE 802.3x for Flow control
	IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
	IEEE 802.1p for COS (Class of Service)
	IEEE 802.1Q for VLAN Tagging
	IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
	IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
	IEEE 802.1x for Authentication
	IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
	IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
PoE Power Supply Type	Endspan mode
PoE Power Output	Per port 56V DC, 350mA. Max. 15.4 watts (IEEE 802.3af),
PoE Power Output	Per Port 56V DC, 590mA. Max. 30 watts (IEEE 802.3at)
MAC Table	8K
Priority Queues	8
Processing	Store-and-Forward
Switch Properties	Switching latency: 7 us
	Switching bandwidth: 24Gbps
	Throughput (packet per second) : 14.8Mpps@64Bytes packet
	Max. Number of Available VLANs: 4096
	VLAN ID Range : VID 0 to 4095
	IGMP multicast groups: 256 for each VLAN
	Port rate limiting: User Define
Jumbo frame	Up to 9.6K Bytes
Security Featues	Device Binding security feature
	Enable/disable ports, MAC based port security
	Port based network access control (802.1x)
	VLAN (802.1Q ) to segregate and secure network traffic
	Radius centralized password management
	SNMPv3 encrypted authentication and access security
	Https / SSH enhance network security
Software Features	STP/RSTP/MSTP (IEEE 802.1D/w/s)
	Redundant Ring (O-Ring) with recovery time less than 20ms over 250 units
	TOS/Diffserv supported
	Quality of Service (802.1p) for real-time traffic
	VLAN (802.1Q) with VLAN tagging
	IGMP Snooping
	IP-based bandwidth management
	Application-based QoS management
	DOS/DDOS auto prevention
	Port configuration, status, statistics, monitoring, security
	DHCP Server/Client/Relay
	SMTP Client
	Modbus TCP
	NTP server
Network Redundancy	O-Ring
	Open-Ring
	O-Chain
	*note MRP
	MSTP (RSTP/STP compatible)
RS-232 Serial Console Port	RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1
LED Indicators
Power Indicator	Green : Power LED x 2
R.M. Indicator	Green : Indicates that the system is operating in O-Ring Master mode
Ring Indicator	Green : Indicates that the system operating in O-Ring mode
Ring Indicator	Green Blinking : Indicates that the Ring is broken.
Fault Indicator	Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port Indicator	Dual color LED : Green for 1000Mbps Link/Act indicator. Amber for 10/100Mbps Link/Act indicator
100/1000Base-X SFP port Indicator	Green for port Link/Act.
PoE Indicator	Green : PoE enabled LED x 8
Fault contact
Relay	Relay output to carry capacity of 1A at 24VDC
Reset Function
Reset Button	< 5 sec: System reboot, > 5 sec: Factory default
Power
Redundant Input Power	Dual DC inputs. 50~57VDC on 6-pin terminal block
Power Consumption (Typ.)	13.2 Watts
PoE Power Budget	240 Watts
Overload Current Protection	Present
Reverse polarity protection	Present
Physical Characteristics
Enclosure	IP-30
Dimensions (W x D x H)	96.4 (W) x 105.5 (D) x 154 (H) mm (3.8 x 4.15 x 6.06 inches)
Weight (g)	1205 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMC	EN 55032, EN 55024, FCC Part 15B, EN 61000-3-2, EN 61000-3-3
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
MTBF	670898hrs
