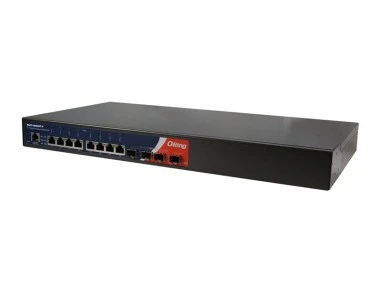

ORing RGPS 9084GP P JP Endüstrityel PoE Switch

Özellikler

Supports O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
Open-Ring support the other vendor's ring technology in open architecture
O-Chain allow multiple redundant network rings
Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
Supports IEEE 802.3at compliant PoE 30Watts per port
Supports PoE scheduled configuration and PoE alive check function
Support IEEE 1588v2 clock Synchronization
Supports IPV6 new internet protocol version
Supports backup unit device DBU-01 to quickly configuration backup/restore

Teknik Özellikler

Physical Ports
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX with P.S.E	8
	-40 ~ 60°C : provided total 240watts maximum, 60 ~ 75°C : provided total 120watts maximum
100/1000Base-X SFP Port	4
Technology
Ethernet Standards	IEEE 802.3 for 10BaseT
	IEEE 802.3u for 100Base-TX and 100Base-FX
	IEEE 802.3z for 1000Base-X
	IEEE 802.3ab for 1000Base-T
	IEEE 802.3x for Flow control
	IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
	IEEE 802.1D for STP (Spanning Tree Protocol)
	IEEE 802.1p for COS (Class of Service)
	IEEE 802.1Q for VLAN Tagging
	IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
	IEEE 802.1x for Authentication
	IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
	IEEE 802.3at PoE specification
MAC Table	8k
Packet Buffer	4Mbits
Priority Queues	8
Processing	Store-and-Forward
Switch Properties	Switching latency: 7 us
	Switching bandwidth: 24Gbps
	Max. Number of Available VLANs: 4095
	VLAN ID Range : VID 1 to 4094
	IGMP multicast groups: 256 for each VLAN
	Port rate limiting: User Define
Security Features	Device Binding security feature
	Enable/disable ports, MAC based port security
	Port based network access control (802.1x)
	VLAN (802.1Q ) to segregate and secure network traffic
	Radius centralized password management
	SNMPv3 encrypted authentication and access security
	Https / SSH enhance network security
Jumbo frame	Up to 9.6K Bytes
Software Features	STP/RSTP/MSTP (IEEE 802.1D/w/s)
	Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
	TOS/Diffserv supported
	Quality of Service (802.1p) for real-time traffic
	VLAN (802.1Q) with VLAN tagging
	IGMP Snooping
	IP-based bandwidth management
	Application-based QoS management
	DOS/DDOS auto prevention
	Port configuration, status, statistics, monitoring, security
	DHCP Server/Client/Relay
	SMTP Client
	Modbus TCP
	NTP server
Network Redundancy	O-Ring
	Open-Ring
	O-Chain
	Fast Recovery
	*note MRP
	MSTP (RSTP/STP compatible)
RS-232 Serial Console Port	RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1 (support backup unit DBU-01)
LED Indicators
Power indicator (PWR)	Green : Power indicator
Ring Master Indicator (R.M.)	Green : Indicate system operated in O-Ring Master mode
O-Ring Indicator (Ring)	Green : Indicate system operated in O-Ring mode. Blinking to indicate Ring is broken.
PoE indicator	Blue : PoE LED x 8
10/100/1000Base-T(X) RJ45 port indicator	Green for port Link/Act.
10/100/1000Base-T(X) RJ45 port indicator	Dual color LED for speed indicator ~ Green (1000Mbps) / Amber (100Mbps) / Off-light (10Mbps)
100/1000Base-X SFP port indicator	Green for port Link/Act.
Power
Power Input	AC 100~240V/AC, 50~60Hz
Power Consumption (Type.)	260Watts (PoE output included)
Overload current protection	Present
Physical Characteristic
Enclosure	19 inches rack mountable
Dimension (W x D x H)	443.7(W)x230(D)x44(H) mm (17.47 x 9.1 x 1.73inch)
Weight (g)	3,730 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Warranty	5 years
