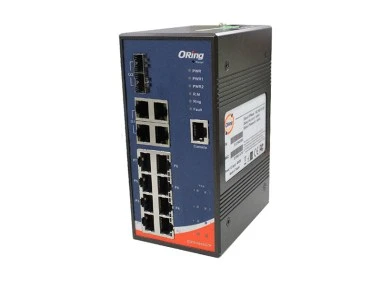

ORing IGPS 9842GTP Endüstriyel PoE Switch

Özellikler

Leading EN50155-compliant Ethernet switch for rolling stock application
Supports O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
Open-Ring support the other vendor’s ring technology in open architecture
O-Chain allow multiple redundant network rings
*note Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
Supports IEEE 802.3at compliant PoE with maximum 30Watts per port
Supports PoE scheduled configuration and PoE auto-ping check function
Advanced PoE power boost technology to support dual 24VDC power inputs
Support IEEE 1588v2 clock Synchronization
Supports IPV6 new internet protocol version
Support Modbus TCP protocol
Provided HTTPS/SSH protocol to enhance network security
Support IEEE 802.3az Energy-Efficient Ethernet technology
Supports SMTP client
Supports IP-based bandwidth management
Supports backup unit device DBU-01 to quickly configuration backup/restore

*NOTE: This function is available by request only

Teknik Özellikler

ORing Switch Model	IGPS-9842GTP	IGPS-9842GTP-24V
Physical Ports
10/100/1000Base-T(X) with P.S.E. ports in RJ45 Auto MDI/MDIX	8 (P.S.E. with IEEE 802.3at)
10/100/1000Base-T(X) in RJ45 Auto MDI/MDIX	4
100/1000Base-X with SFP port	2
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T
	IEEE 802.3u for 100Base-TX and 100Base-FX
	IEEE 802.3ab for 1000Base-T
	IEEE 802.z for 1000Base-X
	IEEE 802.3x for Flow control
	IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
	IEEE 802.1p for COS (Class of Service)
	IEEE 802.1Q for VLAN Tagging
	IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
	IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
	IEEE 802.1x for Authentication
	IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
	IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
MAC Table	8192 MAC addresses
Priority Queues	8
Processing	Store-and-Forward
Switch Properties	Switching latency: 7 μs
	Switching bandwidth: 28Gbps
	Max. Number of Available VLANs : 4095
	VLAN ID Range : 1 to 4094
	IGMP multicast groups: 256 for each VLAN
	Port rate limiting: User Define
Jumbo frame	Up to 9.6K Bytes
Security Featues	Device Binding security feature
	Enable/disable ports, MAC based port security
	Port based network access control (802.1x)
	VLAN (802.1Q ) to segregate and secure network traffic
	Radius centralized password management
	SNMPv3 encrypted authentication and access security
	Https / SSH enhance network security
Software Features	STP/RSTP/MSTP (IEEE 802.1D/w/s)
	Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
	TOS/Diffserv supported
	Quality of Service (802.1p) for real-time traffic
	VLAN (802.1Q) with VLAN tagging
	IGMP Snooping
	IP-based bandwidth management
	Application-based QoS management
	DOS/DDOS auto prevention
	Port configuration, status, statistics, monitoring, security
	DHCP Server/Client/Relay
	SMTP Client
	Modbus TCP
Network Redundancy	O-Ring
	Open-Ring
	O-Chain
	*note MRP
	MSTP (RSTP/STP compatible)
RS-232 Serial Console Port	RS-232 in RJ45 connector with console cable. 115200bps, 8, N, 1 (support backup unit)
LED Indicators
Power Indicator (PWR)	Green : Power LED x 3
PoE Indicator	Green : PoE LED x 8
Ring Master Indicator (R.M.)	Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green : Indicates that the system operating in O-Ring mode
	Green Blinking : Indicates that the Ring is broken.
Fault Indicator (Fault)	Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) P.S.E. RJ45 Port Indicator (P1 ~ P8)	Dual color LED : Green for 1000Mbps Link/Act indicator. Amber for 10/100Mbps Link/Act indicator
10/100/1000Base-T(X) RJ45 Port Indicator (P9 ~ P12)	Green LED for Link/Act indicator.
	Dual color LED for speed indicator ~ Green (1000Mbps) / Amber (100Mbps) / Off-light (10Mbps)
100/1000Base-X SFP Port Indicator	Green for port Link/Act.
Fault Contact
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power	Dual DC inputs. 50 ~ 57VDC on 6-pin terminal block	Dual DC inputs. 12 ~ 57VDC on 6-pin terminal block
PoE Power Output	50 ~ 57VDC : total power budget is 240Watts withmaximum 30Watts per port	12 ~ 24VDC : total power budget is 60Watts with maximum
		30Watts per port.
Power Consumption (Typ.)	13.2 Watts (PoE loading not included)
Overload Current Protection	Present
Reverse Polarity Protection	NOT Present
Physical Characteristics
Enclosure	IP-30
Dimensions (W x D x H)	74.3 (W) x 109.2 (D) x 153.6 (H)mm (2.93 x 4.3 x 6.05 inch)
Weight (g)	1270 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4)
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C )	311,532
