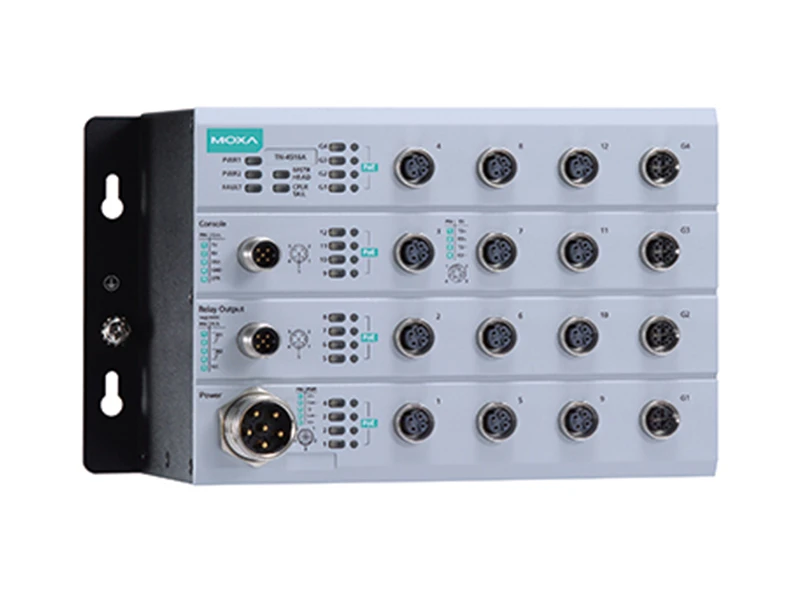

Moxa TN 4516A 12PoE 4GPoE WV T Endüstriyel Ethernet Switch

Üretici:MOXA

Kullanılabilirlik:stokta 53 öğe(ler)

Ürün Kodu:Moxa TN 4516A 12PoE 4GPoE WV T

12 PoE,10/100 Base-T(X),M12 connector, 4 PoE,10/100/1000 Base-T(X), M12 connector, 1 (dual inputs)24 to 110 VDC power supply, -40 to 7512 PoE,10/100 Base-T(X),M12 connector, 2 PoE,10/100/1000 Base-T(X), M12 connector, 2 1000BaseLSX fiber optic, Q-ODC® interface, 1 (dual inputs)24 to 110 VDC power supply, -40 to 75°C Wide Temperature

Açıklama

Moxa TN 4516A 12PoE 4GPoE WV T Endüstriyel Ethernet Switch

Özellikler

Up to 4 Gigabit ports with PoE function
Isolated power with wide 24 to 110 VDC power supply range
Complies with all EN 50155 mandatory test items*
-40 to 75°C operating temperature range
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
Up to 12 IEEE 802.3at/af compliant combo PoE and Ethernet ports
Provides up to 30 watts per PoE port

Teknik Özellikler

Technology
Standards	IEEE 802.3 for 10BaseT
	IEEE 802.3u for 100BaseT(X) and 100BaseFX
	IEEE 802.3x for Flow Control
	IEEE 802.1D for Spanning Tree Protocol
	IEEE 802.1w for Rapid Spanning Tree Protocol
	IEEE 802.1D-2004 for Spanning Tree Protocol
	IEEE 802.1Q for VLAN Tagging
	IEEE 802.1p for Class of Service
	IEEE 802.1X for Authentication
	IEEE 802.3ad for Port Trunk with LACP
	IEEE 802.1s for Multiple Spanning Tree Protocol
Software Features
Management	IPv4/IPv6, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, HTTP, HTTPS, Telnet, SNMP Inform, LLDP, Flow Control, Back Pressure Flow Control, Port Mirror, Syslog, RMON
Filter	IGMPv1/v2, GMRP, GVRP, 802.1Q VLAN, VLAN Unaware, Port-Based VLAN, GVRP
Redundancy Protocols	STP/RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation
Security	RADIUS, TACACS+, SSL, SSH, Port Lock
Time Management	SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based)
Industrial Protocols	EtherNet/IP, Modbus/TCP
MIB	MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Switch Properties
Priority Queues	4
Max. Number of VLANs	64
VLAN ID Range	VID 1 to 4094
IGMP Groups	256
MAC Table Size	8 K
Packet Buffer Size	1 Mbit
Interface
RJ45 Ports	10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Fiber Ports	100BaseFX ports (SC/ST/LC/MTRJ connector)
Console Port	RS-232 (RJ45)
Alarm Contact	1 relay output with current carrying capacity of 1 A @ 24 VDC
Power Requirements
Input Voltage	• 24 VDC
	• 48 VDC
	• 110/220 VDC/VAC
Operating Voltage	• 18 to 36 V (24 VDC)
	• 36 to 72 V (48 VDC)
	• 88 to 300 VDC, 85 to 264 VAC (110/220 VDC/VAC)
Input Current	(all ports are equipped with fiber)PT-508:
	• Max. 0.27 A @ 24 VDC
	• Max. 0.12 A @ 48 VDC
	• Max. 0.084/0.043 A @ 110/220 VDC
	• Max. 0.18/0.11 A @ 110/220 VAC
	PT-510:
	• Max. 0.39 A @ 24 VDC
	• Max. 0.18 A @ 48 VDC
	• Max. 0.10/0.052 A @ 110/220 VDC
	• Max. 0.234/0.148 A @ 110/220 VAC
Overload Current Protection	Present
Connection	5-pin terminal blocks
Reverse Polarity Protection	Present
Physical Characteristics
Housing	Aluminum alloy
IP Rating	IP40 protection
Dimensions	60 x 160 x 110 mm (2.36 x 6.30 x 4.33 in)
Weight	PT-508: 995 g (2.21 lb)
Installation	DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature	-40 to 85°C (-40 to 185°F), cold start requires min. of 100 VAC at -40°C
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	UL 508
EMI	FCC Part 15 Subpart B Class A, EN 55032 Class A
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kVIEC 61000-4-3 RS: 80 MHz to 1 GHz:
	PT-508: 20 V/m
	PT-510: 35 V/m
	IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
	IEC 61000-4-5 Surge: Power; 4 kV; Signal: 4 kV
	IEC 61000-4-6 CS: 10 V
	IEC 61000-4-8
	IEC 61000-4-11
Electrical Substation	IEC 61850-3, IEEE 1613
MTBF (mean time between failures)
Time	PT-508: 394,238 hrs
Time	PT-510: 372,276 hrs
Standard	Telcordia SR332
