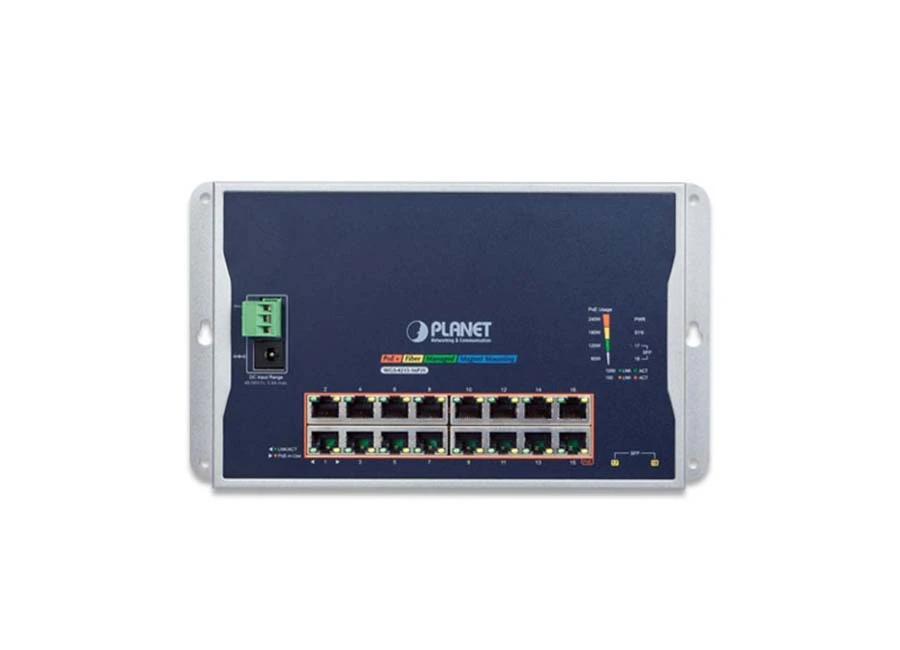

Planet WGS 4215 16P2S Endüstriyel PoE Switch

Üretici:Planet
Kullanılabilirlik:stokta 250 öğe(ler)
Ürün Kodu:Planet WGS 4215 16P2S
Fiyat teklifi alın
Planet WGS 4215 16P2S, 16-Port 10/100/1000BASE-T, 2 100/1000BASE-X mini-GBIC/SFP, Wall Mount, Layer 2, Endüstriyel PoE Switch

Açıklama

Planet WGS 4215 16P2S Endüstriyel PoE Switch



Özellikler

Physical Port
  • 16-Port 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3at PoE+ Injector function
  • 2 100/1000BASE-X mini-GBIC/SFP slots
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 16 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250m in extend mode
  • PoE management
  • - Total PoE power budget control
    - Per port PoE function enable/disable
    - PoE port power feeding priority
    - Per PoE port power limitation
    - PD classification detection
    - PD alive check
    - PoE schedule
Industrial Case and Installation
  • Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
  • IP40 metal case protection
  • Supports -10 to 60 degrees C operating temperature
  • Supports ESD 6KV DC Ethernet protection
  • Dual power input design
  • - 48V~56V DC wide power input with polarity reverse protect function
    - 3-pin terminal block or DC jack connector
Switching
  • Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 8K MAC address table size
  • 10K jumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
Layer 2 Features
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN
    - Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
    - Protocol VLAN
    - Voice VLAN
    - Private VLAN (Protected port)
    - Management VLAN
    - GVRP
  • Supports Spanning Tree Protocol
  • - STP (Spanning Tree Protocol)
    - RSTP (Rapid Spanning Tree Protocol)
    - MSTP (Multiple Spanning Tree Protocol)
    - STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
  • - IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    - Cisco ether-channel (static trunk)
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
Quality of Service
  • Ingress/Egress Rate Limit per port bandwidth control
  • Traffic classification
  • - IEEE 802.1p CoS
    - TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
  • Supports IPv4 IGMP snooping v2, v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering
Security
  • Storm Control support
  • - Broadcast/Unknown unicast/Unknown multicast
  • Authentication
  • - IEEE 802.1X port-based network access authentication
    - Built-in RADIUS client to cooperate with the RADIUS servers
    - DHCP Option 82
    - RADIUS/TACACS+ authentication
  • Access Control List
  • - IPv4/IPv6 IP-based ACL
    - IPv4/IPv6 IP-based ACE
    - MAC-based ACL
    - MAC-based ACE
  • MAC Security
  • - Static MAC
    - MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention
  • SSH/SSL
Management
  • IPv4 and IPv6 dual stack management
  • Switch Management Interface
  • - IPv4/IPv6 Web switch management
    - Telnet Command Line Interface
    - SNMP v1, v2c, v3
    - SSH and SSL secure access
  • User privilege levels control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • Static and DHCP for IP address assignment
  • System Maintenance
  • - Firmware upload/download via HTTP/TFTP
    - Configuration upload/download through HTTP/TFTP
    - Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Cable diagnostics
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
  • SNMP trap for interface Link-up and Link-down notification
  • Event message logging to remote Syslog server
  • Four RMON groups (history, statistics, alarms and events)
  • PLANET Smart Discovery Utility

pdfPlanet WGS 4215 16P2S Endüstriyel PoE Switch Pdf Dosyası4.17 MB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
Montaj Tipi : Wall Mount
PoE Port Sayısı : Tooltip 16 Port
