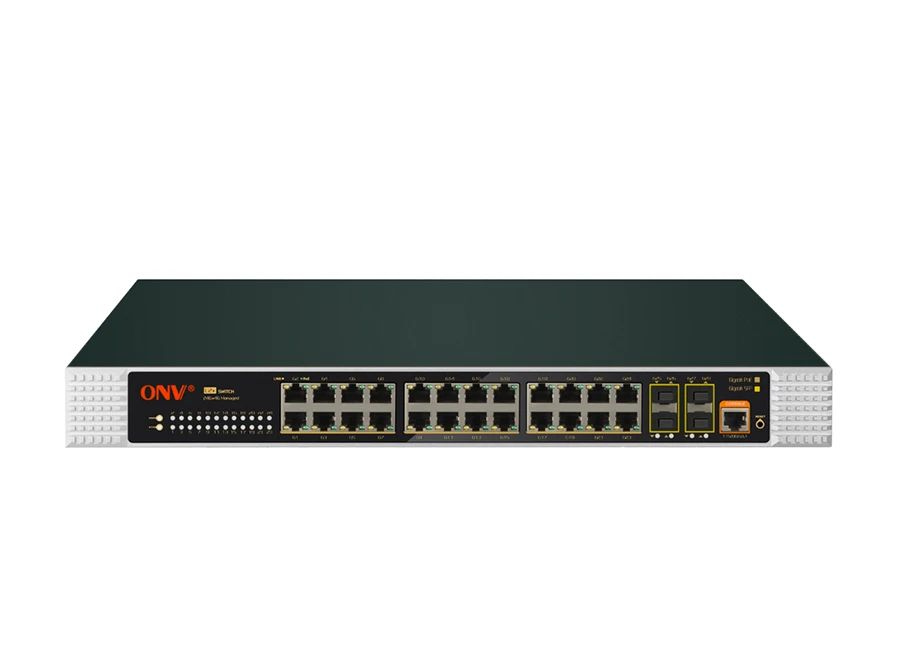

ONV ONV-IPS33026PFM Endüstriyel PoE Switch
Özellikler
Teknik Özellikler
| Model | ONV-IPS33026PFM | ONV-IPS33026PFM-at |
| Interface Characteristics | ||
| Fixed Port | 24*10/100/1000Base-T POE ports (Data /Power); | |
| 4*100/1000Base-X uplink SFP ports (including 2 set combo ports) (Data) | ||
| 1*RS232 Console port (115200,N,8,1) | ||
| Ethernet Port | Port 1-24 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption | |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) | |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | ||
| 1000BASE-T: Cat5e or later UTP(≤100 meter) | ||
| Optical Fiber Port | Gigabit optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
| Optical Cable/ Distance | Multi mode: 850nm / 0 ~ 500M, single mode: 1310nm / 0 ~ 40KM, 1550nm /0 ~ 120KM. | |
| Chip Parameter | ||
| Network Management Type | L2+ | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T | |
| IEEE802.3u 100Base-TX , IEEE802.3ab 1000Base-T | ||
| IEEE802.3z 1000Base-X | ||
| IEEE802.3x | ||
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 256Gbps (Non-blocking) | |
| Forwarding | 38.69Mpps | |
| Rate@64byte | ||
| MAC | 8K | |
| Buffer Memory | 8M | |
| Jumbo Frame | 9.6K | |
| LED Indicator | Power : PWR(yellow), system: SYS(yellow), Network:10/100M Link (yellow) 1000M speed (green), SFP fiber port :L/A (green), POE : PoE (green), | |
| Reset Switch | Yes, support one key to restore factory settings | |
| PoE & Power | ||
| PoE Port | Port 1 to 24 | |
| PoE Management | PoE working status | |
| Delay start of power supply | ||
| PoE output priority configuration | ||
| Scheduling of PoE operation and time | ||
| Total power limit of PoE power supply | ||
| PoE output power allocation, off& af &at | ||
| Power Supply Pin | Default: 1/2 (+), 3/6 (-) | |
| Max Power Per Port | 30W, IEEE802.3af/at | |
| Total PWR / Input Voltage | 400W (AC100-240V) | 600W (AC100-240V) |
| Power Consumption | Standby<18W, Full Load<380W | Standby<22W, Full Load<600W |
| Power Input Interface | Dual input power interface design, AC power supply priority, | |
| support anti-reverse protection, power-off automatic switching DC connection; 2 sets of DC12-48V input interface; | ||
| 1-way alarm switch interface; 1 set of AC power input interface | ||
| Heat Dissipation | Low noise fan active cooling | |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz 5A | Built-in power supply, AC100~240V 50-60Hz 6.6A |
| Physical Parameter | ||
| Operation TEMP / Humidity | -40~+85°C;5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing | |
| Dimension (L*W*H) | 440*298*44.5mm | |
| Net /Gross Weight | <4.5kg / <5.0kg | <4.6kg / <5.3kg |
| Installation | Desktop type ,19 inch 1U cabinet installation | |
| Certification & Warranty | ||
| Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP30 | |
| IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge | ||
| IEC61000-4-3(RS):10V/m(80~1000MHz) | ||
| IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV | ||
| IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV | ||
| IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) | ||
| IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s | ||
| IEC61000-4-9(pulsed magnet field):1000A/m | ||
| IEC61000-4-10(damped oscillation):30A/m 1MHz | ||
| IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV | ||
| IEC61000-4-16(common-mode transmission):30V; 300V,1s | ||
| FCC Part 15/CISPR22(EN55022):Class A | ||
| IEC61000-6-2(Common Industrial Standard) | ||
| Mechanical Properties | IEC60068-2-6 (anti vibration) | |
| IEC60068-2-27 (anti shock) | ||
| IEC60068-2-32 (free fall) | ||
| Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS | |
| Warranty | 5 years, lifelong maintenance. | |
| Network Management Features | ||
| Interface | IEEE802.3X (Full-duplex) | |
| Port temperature protection setting | ||
| Port green Ethernet Energy-saving setting | ||
| Broadcast storm control based on port speed | ||
| The speed limit of the message flow in the access port. | ||
| The minimum particle size is 64Kbps. | ||
| Layer 3 Features | L2+ network management ,IPV4/IPV6 management | |
| L3 soft routing forwarding, | ||
| Static route, Default route @ 128 pcs, APR @ 1024 pcs | ||
| VLAN | 4K VLAN based on port, IEEE802.1q | |
| VLAN based on the protocol | ||
| VLAN based on MAC | ||
| Voice VLAN, QinQ configuration | ||
| Port configuration of Access, Trunk, Hybrid | ||
| Port Aggregation | LACP, Static aggregation | |
| Max 13 aggregation groups and 8 ports per group. | ||
| Spanning Tree | STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s) | |
| Industrial Ring Network Protocol | G.8032 (ERPS),Recovery time less than 20ms | |
| 250 Ring at most, Max 1024 devices per ring. | ||
| Multicast | MLD Snooping v1/v2,Multicast VLAN | |
| IGMP Snooping v1/v2, Max 250 multicast groups, Fast log out | ||
| Port Mirroring | Bidirectional data mirroring based on port | |
| QoS | Flow-based Rate Limiting | |
| Flow-based Packet Filtering | ||
| 8*Output queues of each port | ||
| 802.1p/DSCP priority mapping | ||
| Diff-Serv QoS,Priority Mark/Remark | ||
| Queue Scheduling Algorithm (SP, WRR, SP+WRR) | ||
| ACL | Port-based Issuing ACL,ACL based on port and VLAN | |
| L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. | ||
| Security | IP-MAC-VLAN-Port binding | |
| ARP inspection,Anti-DoS attack | ||
| AAA & RADIUS,MAC learning limit | ||
| Mac black holes,IP source protection | ||
| IEEE802.1X & MAC address authentication | ||
| Broadcast storm control,Backup for host datum | ||
| SSH 2.0,SSL,Port isolation,ARP message speed limit | ||
| User hierarchical management and password protection | ||
| DHCP | DHCP Client,DHCP Snooping, DHCP Server,DHCP Relay | |
| Management | One-key recovery | |
| Cable Diagnose,LLDP | ||
| Web Management (HTTPS) | ||
| NTP,System work log,Ping Test | ||
| CPU instant utilization status view | ||
| Console/AUX Modem/Telnet/SSH2.0 CLI | ||
| Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3 | ||
| ONV NMS - smart network management system platform(LLDP+SNMP) | ||
| System | Category 5 Ethernet network cable | |
| Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; | ||
| TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network | ||
