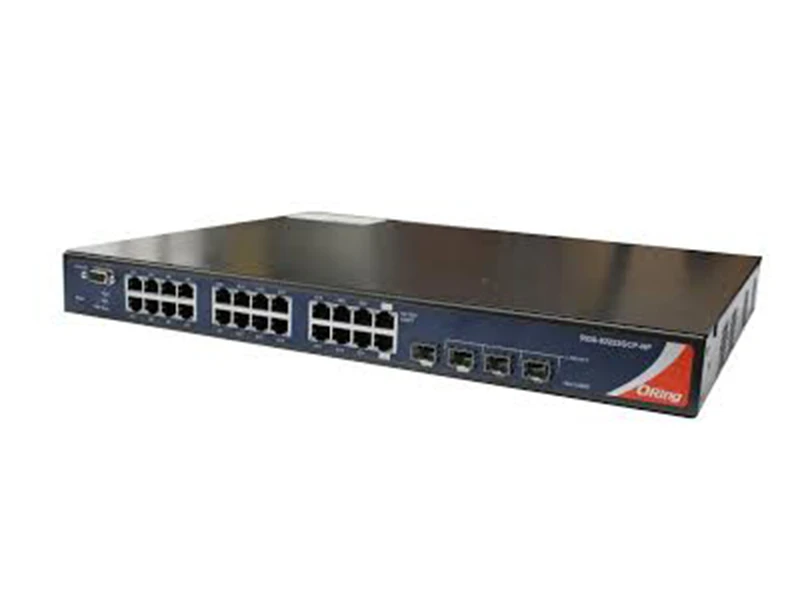

ORing RGPS 92222GCP NP P UK Endüstriyel PoE Switch

Özellikler

Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
Open-Ring support the other vendor’s ring technology in open architecture
O-Chain allow multiple redundant network rings
Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
24 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
Support PoE scheduled configuration and PoE auto-ping check function
Support IPV6 new internet protocol version
Support Modbus TCP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client
Support IP-based bandwidth management
Support application-based QoS management
Support Device Binding security function
Support DOS/DDOS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Support ACL, TACACS+ and 802.1x User Authentication for security
Supports 9.6K Bytes Jumbo Frame
SFP socket support DDM function (Port 25~26 only)
Multiple notification for warning of unexpected event
Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
Support LLDP Protocol
19 inches rack mountable design

Teknik Özellikler

Physical Ports
10/100/1000Base-T(X) with P.S.E. Ports in RJ45 Auto MDI/MDIX	22
Gigabit Combo port with 10/100/1000Base-T(X)P.S.E. and 100/1000Base-X SFP ports	2
100/1000Base-X with SFP port	2
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T
	IEEE 802.3u for 100Base-TX and 100Base-FX
	IEEE 802.3ab for 1000Base-T
	IEEE 802.z for 1000Base-X
	IEEE 802.3x for Flow control
	IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
	IEEE 802.1p for COS (Class of Service)
	IEEE 802.1Q for VLAN Tagging
	IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
	IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
	IEEE 802.1x for Authentication
	IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
	IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
	RGPS-92222GCP-NP-LP : Total power budget is 320Watts with maximum
	RGPS-92222GCP-NP-P : Total power budget is 720Watts with maximum
	RGPS-92222GCP-NP : Total power budget is 720Watts and based-on external power supply spec
MAC Table	8K
Priority Queues	8
Processing	Store-and-Forward
Switch Properties	Switching latency: 7 us
	Switching bandwidth: 52Gbps
	Max. Number of Available VLANs: 4095
	VLAN ID Range : VID 1 to 4094
	IGMP multicast groups: 256 for each VLAN
	Port rate limiting: User Define
Jumbo frame	Up to 9.6K Bytes
Security Features	Device Binding security feature
	Enable/disable ports, MAC based port security
	Port based network access control (802.1x)
	Single 802.1x and Multiple 802.1x
	MAC-based authentication
	QoS assignment
	Guest VLAN
	MAC address limit
	TACACS+
	VLAN (802.1Q ) to segregate and secure network traffic
	Radius centralized password management
	SNMPv3 encrypted authentication and access security
	Https / SSH enhance network security
	Web and CLI authentication and authorization
	Authorization (15 levels)
	IP source guard
Software Features	IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static)
	Multiple Registration Protocol (MRP)
	MSTP (RSTP/STP compatible)
	Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
	TOS/Diffserv supported
	Quality of Service (802.1p) for real-time traffic
	VLAN (802.1Q) with VLAN tagging
	IGMP v2/v3 Snooping
	IP-based bandwidth management
	Application-based QoS management
	DOS/DDOS auto prevention
	Port configuration, status, statistics, monitoring, security
	DHCP Server/Client
	DHCP Relay
	Modbus TCP
	DNS client proxy
	SMTP Client
	NTP server
Network Redundancy	O-Ring
	Open-Ring
	O-Chain
	MRP
	MSTP (RSTP/STP compatible)
RS-232 Serial Console Port	RS-232 in DB-9 connector with console cable. 115200bps, 8, N, 1
LED Indicators
Power indicator (PWR)	Green : Power indicator
Ring master indicator (R.M.)	Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green : Indicates that the system operating in O-Ring mode
	Green Blinking : Indicates that the Ring is broken
Fault Indicator (Fault)	Amber : Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 Port Indicator	Dual color LED for Speed/Link/Act indicator ~
	Green : 1000Mbps Link/Act
	Amber : 10/100Mbps Link/Act
100/1000Base-X SFP Port Indicator	Green for port Link/Act.
PoE Indicator	Green : PoE enabled LED x 24
Fault contact
Relay	None
Power
Power Input	100~240VAC with power socket		50 ~ 57VDC with terminal block
Power supply	450 Watts power supply included(320W power budget)	1000 Watts power supply included(720W power budget)	Power supply not include
Power consumption (Typ.)	37 Watts (P.D. not included)	37 Watts (P.D. not included)	17 Watts (P.D. not included)
Overload Current Protection	Present
Reverse Polarity Protection	Not Present
Physical Characteristics
Enclosure	19 inches rack-mountable
Dimensions (W x D x H)	431 (W) x 342 (D) x 44 (H) mm (16.97 x 13.47 x 1.73 inch)
Weight (g)	5000 g	5730 g	3982 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 60°C (-40 to 140°F )
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
Warranty	5 years
