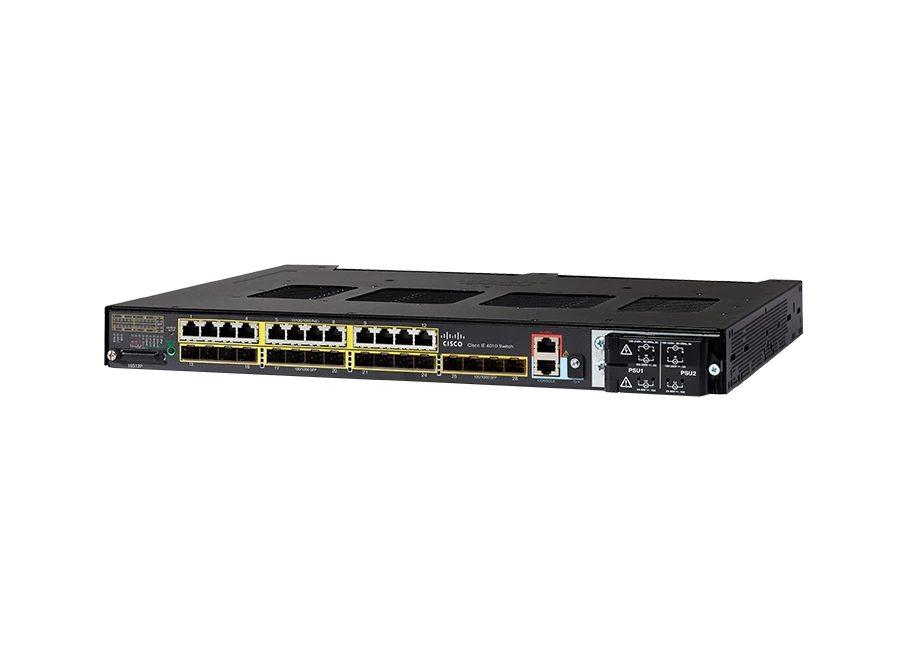

Cisco IE 4010 16S12P Endüstriyel PoE Switch
Teknik Özellikler
General | |
Device Type | Switch - 28 ports - managed |
Enclosure Type | DIN rail mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 12 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) + 12 x 10/100/1000/SFP |
Performance | Forwarding bandwidth: 28 Gbps Switching bandwidth: 56 Gbps |
Capacity | Virtual interfaces (VLANs): 1000 IGMP groups: 1000 NAT translations: 128 |
MAC Address Table Size | 16K entries |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, SNMP, RMON, Telnet, SNMP 3, HTTP, SSH, CLI, SCP |
Encryption Algorithm | FIPS 140-2 |
Authentication Method | RADIUS, TACACS |
Features | NAT support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), LLDP support, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dynamic ARP protection, Class of Service (CoS), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, Storm Control, PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP), Bridge protocol data unit (BPDU), CIP Sync (IEEE 1588) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 1588v2, IEEE 1613 |
RAM | 1 GB |
Flash Memory | 128 MB |
Expansion / Connectivity | |
Interfaces | 12 x 1000Base-T RJ-45 4 x SFP uplink 1 x console RJ-45 1 x mini-USB Type B 12 x 1000Base-TX SFP |
Expansion Slots | 1 (total) / 0 (free) x SD Memory Card |
Miscellaneous | |
Included Accessories | 1 GB SD card |
MTBF | 415,160 hours |
Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FIPS 140-2, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223 |
TAA Compliant | Yes |
Software / System Requirements | |
Software Included | Cisco IOS LAN Base |
Dimensions & Weight | |
Width | 17.5 in |
Depth | 14 in |
Height | 1.8 in |
Weight | 12.74 lbs |
Manufacturer Warranty | |
Service & Support | Limited warranty - advance parts replacement - 5 years - response time: 10 days |
Environmental Parameters | |
Min Operating Temperature | -40 °F |
Max Operating Temperature | 167 °F |
Humidity Range Operating | 5 - 95% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 185 °F |
General | |
Authentication Method | RADIUS, TACACS |
Capacity | Virtual interfaces (VLANs): 1000 ¦ IGMP groups: 1000 ¦ NAT translations: 128 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 1588v2, IEEE 1613 |
Device Type | Switch - 28 ports - managed |
Enclosure Type | DIN rail mountable 1U |
Encryption Algorithm | FIPS 140-2 |
Features | NAT support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), LLDP support, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), dynamic ARP protection, Class of Service (CoS), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, Storm Control, PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP), Bridge protocol data unit (BPDU), CIP Sync (IEEE 1588) |
Flash Memory | 128 MB |
MAC Address Table Size | 16K entries |
Performance | Forwarding bandwidth: 28 Gbps ¦ Switching bandwidth: 56 Gbps |
Ports | 12 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) + 12 x 10/100/1000/SFP |
RAM | 1 GB |
Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, SNMP, RMON, Telnet, SNMP 3, HTTP, SSH, CLI, SCP |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing |
Subtype | Gigabit Ethernet |
Dimensions & Weight | |
Depth | 14 in |
Height | 1.8 in |
Weight | 12.74 lbs |
Width | 17.5 in |
Environmental Parameters | |
Humidity Range Operating | 5 - 95% (non-condensing) |
Max Operating Temperature | 167 °F |
Max Storage Temperature | 185 °F |
Min Operating Temperature | -40 °F |
Min Storage Temperature | -40 °F |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 0 (free) x SD Memory Card |
Interfaces | 12 x 1000Base-T RJ-45 ¦ 4 x SFP uplink ¦ 1 x console RJ-45 ¦ 1 x mini-USB Type B ¦ 12 x 1000Base-TX SFP |
Manufacturer Warranty | |
Service & Support | Limited warranty - advance parts replacement - 5 years - response time: 10 days |
Miscellaneous | |
Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FIPS 140-2, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223 |
Included Accessories | 1 GB SD card |
MTBF | 415,160 hours |
TAA Compliant | Yes |
Software / System Requirements | |
Software Included | Cisco IOS LAN Base |
Cisco IE 4010 16S12P Endüstriyel PoE Switch Pdf Dosyası664.82 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : 12 Port
