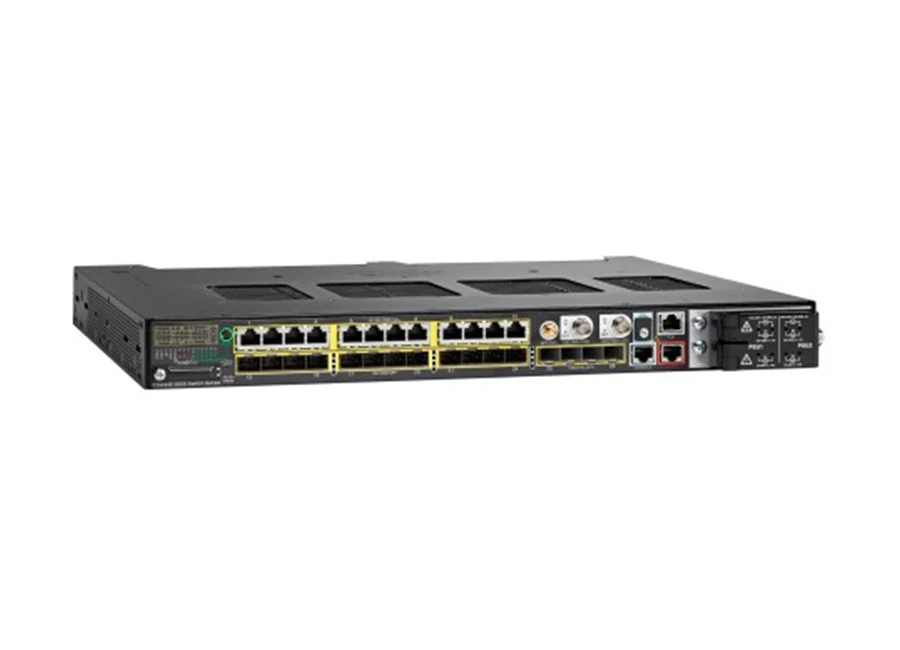

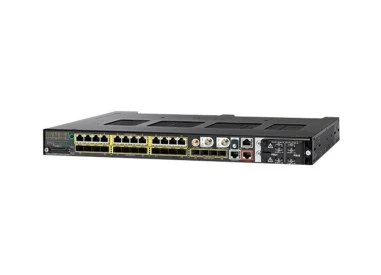

Cisco IE 5000 12S12P 10G Endüstriyel PoE Switch
Teknik Özellikler
Cisco Industrial Ethernet 5000 Series - switch - 28 ports - Managed - rack-mountable | |
Device Type | Switch - 28 ports - Managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 4 x 1 Gigabit / 10 Gigabit SFP+ + 12 x Fast Ethernet/Gigabit SFP + 12 x 10/100/1000 (PoE+) |
Power Over Ethernet (PoE) | PoE+ |
Performance | Forwarding bandwidth: 64 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 95.238 Mpps |
Capacity | RADIUS clients: 4 ¦ IGMP groups: 1000 ¦ VLANs supported: 1005 ¦ NAT translations: 256 |
MAC Address Table Size | 16K entries |
Routing Protocol | OSPF, BGP-4, IS-IS, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, policy-based routing (PBR), RIPng, Bidirectional Forwarding Detection (BFD) |
Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI, SCP |
Features | Layer 3 switching, Layer 2 switching, NAT support, ARP support, IGMP snooping, Syslog support, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, DHCP snooping, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), fanless, LLDP support, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), static routing, 802.1x authentication, SNMP support, MACsec support, IGMP filtering, Oven-Controlled Quartz Oscillator (OCXO), PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP), TrustSec support, CIP Sync (IEEE 1588), Network Timing Protocol (NTP), IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, Private VLAN, Guest VLAN, STP BPDU Guard |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 1613 |
Power Redundancy | Optional |
Dimensions (WxDxH) | 44.5 cm x 35.6 cm x 4.45 cm |
Weight | 6.21 kg |
Manufacturer Warranty | 5-year warranty |
Extended Specification | |
General | |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Built-in Devices | SD card reader |
Capacity | RADIUS clients: 4 ¦ IGMP groups: 1000 ¦ VLANs supported: 1005 ¦ NAT translations: 256 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 1613 |
Device Type | Switch - 28 ports - Managed - stackable |
Enclosure Type | Rack-mountable 1U |
Encryption Algorithm | MODBUS |
Features | Layer 3 switching, Layer 2 switching, NAT support, ARP support, IGMP snooping, Syslog support, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, DHCP snooping, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), fanless, LLDP support, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), static routing, 802.1x authentication, SNMP support, MACsec support, IGMP filtering, Oven-Controlled Quartz Oscillator (OCXO), PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP), TrustSec support, CIP Sync (IEEE 1588), Network Timing Protocol (NTP), IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, Private VLAN, Guest VLAN, STP BPDU Guard |
Flash Memory | 256 MB |
MAC Address Table Size | 16K entries |
Performance | Forwarding bandwidth: 64 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 95.238 Mpps |
Ports | 4 x 1 Gigabit / 10 Gigabit SFP+ + 12 x Fast Ethernet/Gigabit SFP + 12 x 10/100/1000 (PoE+) |
Power Over Ethernet (PoE) | PoE+ |
RAM | 1 GB |
Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI, SCP |
Routing Protocol | OSPF, BGP-4, IS-IS, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, policy-based routing (PBR), RIPng, Bidirectional Forwarding Detection (BFD) |
Subtype | Gigabit Ethernet |
Dimensions & Weight | |
Depth | 35.6 cm |
Height | 4.45 cm |
Weight | 6.21 kg |
Width | 44.5 cm |
Environmental Parameters | |
Humidity Range Operating | 0 - 95% (non-condensing) |
Humidity Range Storage | 0 - 95% (non-condensing) |
Max Operating Temperature | 75 °C |
Max Storage Temperature | 85 °C |
Min Operating Temperature | -40 °C |
Min Storage Temperature | -40 °C |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 0 (free) x SD Memory Card |
Interfaces | 4 x 10GBase-X SFP+ uplink ¦ 12 x 1000Base-X SFP ¦ 12 x 1000Base-T RJ-45 PoE+ ¦ 1 x mini-USB ¦ 1 x console RJ-45 ¦ 1 x aerial input ¦ 1 x ToD ¦ 1 x alarm RJ-45 |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Miscellaneous | |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-14, EN 50121-4, VCCI Class A, KN22, KN24, China RoHS, EN 50121-3-2, EN 61326, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC 60068-2-3, EN 61373, ISO 9223, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, AS/NZS CISPR 24, IEC 60079, NOM-019-SCFI, IEEE 1588, IEEE 1613 Class 2, EN 60068-2-52, EN 60068-2-60 |
Included Accessories | 1 GB SD card |
MTBF | 390,190 hours |
TAA Compliant | Yes |
Power | |
Installed Qty | 0 (installed) / 2 (max) |
Power Consumption Operational | 90 Watt |
Power Device | Internal power supply |
Power Redundancy | Optional |
Power Redundancy Scheme | 1+1 |
Software / System Requirements | |
Software Included | Cisco LAN Base software |
Cisco IE 5000 12S12P 10G Endüstriyel PoE Switch Pdf Dosyası753.65 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 4
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı : 12 Port
