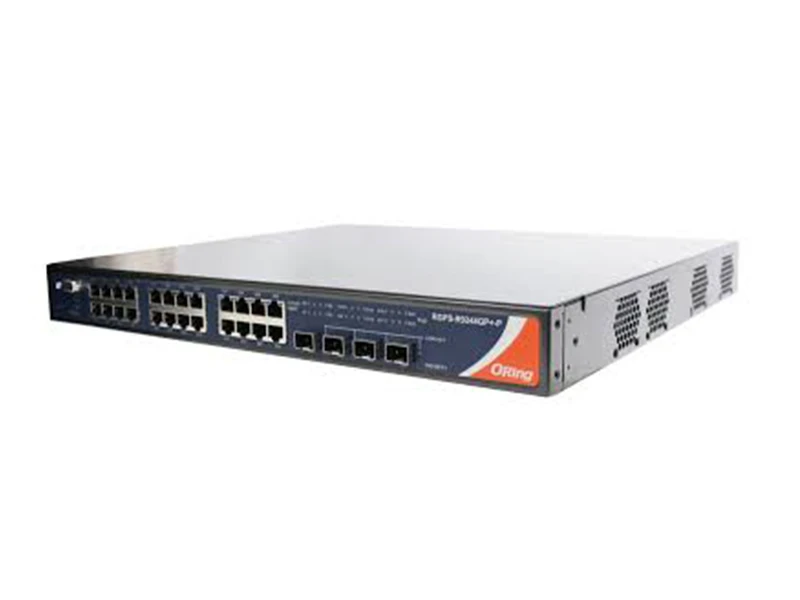

ORing RGPS R9244GP+ LP US Endüstriyel PoE Switch

Özellikler

Supports Layer 3 routing, RIP and static routing function
Support O-Ring (recovery time < 30ms over 250 units of connection) and MSTP(RSTP/STP compatible) for Ethernet Redundancy
O-Chain allow multiple redundant network rings
Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
24 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30 Watts per port
Support PoE scheduled configuration and PoE auto-ping check function
Support hardware IEEE 1588v2 clock synchronization
Support IPV6 new internet protocol version
Support Modbus TCP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client
Support IP-based bandwidth management
Support application-based QoS management

Teknik Özellikler

ORing Switch Model	RGPS-R9244GP+-P	RGPS-R9244GP+-LP	RGPS-R9244GP+
Physical Ports
10/100/1000Base-T(X) with P.S.E. Ports in RJ45 Auto MDI/MDIX	24
1G/10GBase-X with SFP+ port	4
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T
	IEEE 802.3u for 100Base-TX and 100Base-FX
	IEEE 802.3ab for 1000Base-T
	IEEE 802.z for 1000Base-X
	IEEE 802.3ae for 10Gigabit Ethernet
	IEEE 802.3x for Flow control
	IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
	IEEE 802.1p for COS (Class of Service)
	IEEE 802.1Q for VLAN Tagging
	IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
	IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
	IEEE 802.1x for Authentication
	IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
	IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.)
MAC Table	32k
Packet Buffer	32Mbits
Flash Memory	128Mbits
DRAM Size	1Gbits
Jumbo frame	Up to 10K Bytes
Priority Queues	8
Processing	Store-and-Forward
Switch Properties	Switching latency: 7 us
	Switching bandwidth: 128Gbps
	Max. Number of Available VLANs: 4095
	VLAN ID Range : VID 1 to 4094
	IGMP multicast groups: 128 for each VLAN
	Port rate limiting: User Define
Security Features	Device Binding security feature
	Enable/disable ports, MAC based port security
	Port based network access control (802.1x)
	MAC-based authentication (802.1x)
	VLAN (802.1Q ) to segregate and secure network traffic
	SNMPv3 encrypted authentication and access security
	Https / SSH enhance network security
	Web and CLI authentication and authorization
	IP source guard
Software Features	IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static)
	Multiple Registration Protocol (MRP)
	MSTP (RSTP/STP compatible)
	Redundant Ring (O-Ring) with recovery time less than 30ms
	TOS/Diffserv supported
	Quality of Service (802.1p) for real-time traffic
	VLAN (802.1Q) with VLAN tagging
	IGMP v2/v3 Snooping
	Application-based QoS management
	DOS/DDOS auto prevention
	Port configuration, status, statistics, monitoring, security
	DHCP Server/Client/ Relay
	Modbus TCP
	SNTP server
	SMTP Client
Network Redundancy	O-Ring
	O-Chain
	*note MRP
	Fast Recovery
	MSTP (RSTP/STP compatible)
RS-232 Serial Console Port	RS-232 in DB-9 connector with console cable. 115200bps, 8, N, 1
LED Indicators
Power Indicator (PWR)	Green: Power indicator
Ring Master Indicator (R.M.)	Green: Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green: Indicates that the system operating in O-Ring mode
	Green Blinking: Indicates that the Ring is broken.
Fault Indicator (Fault)	Amber: Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 Port Indicator	Dual color LED for Link/Act/Speed indicator ~ Green (1G Link/Act) / Amber (10/100M Link/Act)
1G/10GBase-X SFP+ Port Indicator	Green for port Link/Act.
PoE Indicator	Green : PoE enabled LED x 24
Fault contact
Relay	None	None	Present
Power
Power Input	100~240VAC with AC socket	100~240VAC with AC socket	50~ 57VDC with terminal block
Power supply	1000 Watts	390 Watts	power supply not included
Power consumption (Typ.)	75 Watts (PoE output not included)	49 Watts	40 Watts
Max PoE output	720 Watts (-20℃~50℃)	300Watts (-20℃~50℃)	720Watts
	320 Watts (50℃~60℃)	240Watts (50℃~60℃)
Overload Current Protection	Present
Reverse Polarity Protection	Not Present
Physical Characteristics
Enclosure	19 inches rack mountable
Dimensions (W x D x H)	431 (W) x 342 (D) x 44 (H)mm (16.97 x 13.46 x 1.73 inch)
Weight (g)	6,720g	5,580g	4,445g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-20 to 60oC (-4 to 140oF)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMC	CE EMC (EN 55024, EN 55032), FCC Part 15 B
EMI	EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMS	EN 55024 (IEC/EN 61000-4-2 (ESD), IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT), IEC/EN 61000-4-5 (Surge), IEC/EN 61000-4-6 (CS), IEC/EN 61000-4-8(PFMF), IEC/EN 61000-4-11 (DIP))
Shock	IEC60068-2-27
Free Fall	IEC60068-2-31
Vibration	IEC60068-2-6
Safety	EN 60950-1
MTBF	249,143 hrs	214,432hrs	296,701 hrs
