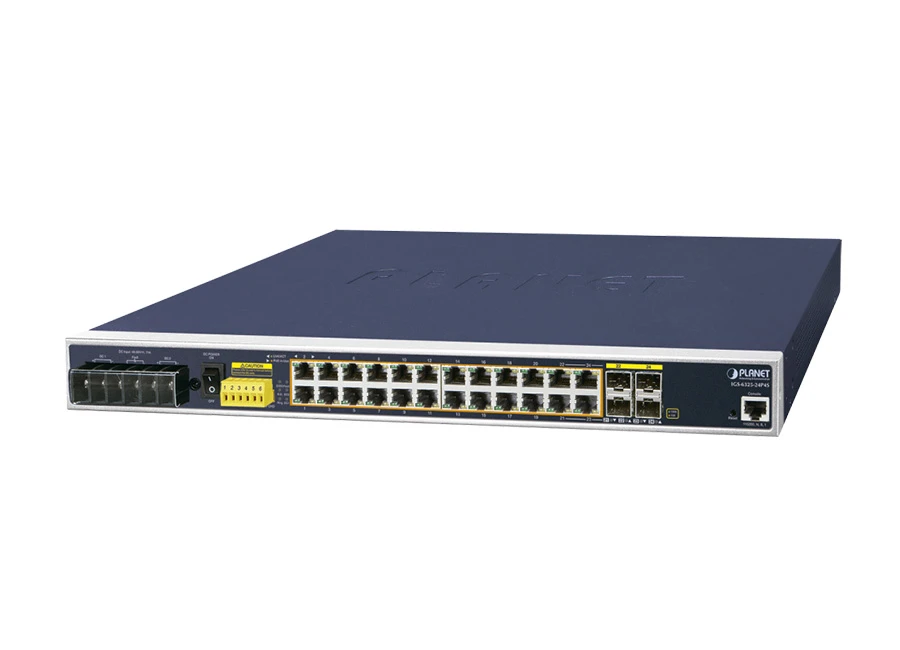

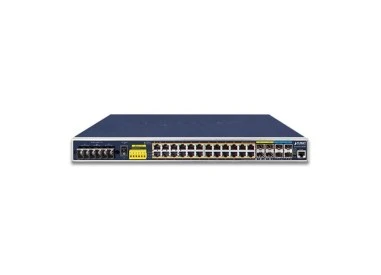

Planet IGS-6325-24P4S Endüstriyel PoE Switch

Teknik Özellikler

Hardware Specifications
Copper Ports	24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24
SFP/mini-GBIC Slots	Compatible with 100BASE-FX SFP transceiver
PoE Injector Port	24 ports with 802.3af/at PoE injector function with Port-1 to Port-24
Console	1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	48Gbps/non-blocking
Throughput (packet per second)	35.71Mpps@ 64 bytes packet
Address Table	16K entries, automatic source address learning and aging
Shared Data Buffer	32M bits
Flow Control	IEEE 802.3x pause frame for full duplex
Flow Control	Back pressure for half duplex
Jumbo Frame	10K bytes
Reset Button	< 5 sec: System reboot
Reset Button	> 5 sec: Factory default
ESD Protection	5KV DC
Enclosure	IP30 metal case
Installation	Rack-mountable kit
Connector	Fixed 6-pin terminal block for power input
	Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
	Removable 6-pin terminal block for DI/DO interface
	Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
DI & DO	2 digital input (DI):
	Level 0: -24V~2.1V (±0.1V)
	Level 1: 2.1V~24V (±0.1V)
	Max. input current: 10mA
	2 digital output (DO):
	Open collector to 24V DC, 100mA max.
LED Indicators	System:
	DC 1 (Green)
	DC 2 (Green)
	Fault Alarm (Red)
	Ring (Green)
	Ring Owner (Green)
	DIDO (Red)
	Per 10/100/1000T RJ45 PoE+ Interfaces (Port 1 to Port 24):
	PoE-in-Use (Amber)
	LNK/ACT (Green)
	100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):
	1000Mbps LNK/ACT (Green)
	100Mbps LNK/ACT (Amber)
Dimensions (W x D x H)	440 x 300 x 44 mm, 1U height
Weight	3740g
Power Requirements	Dual 48~56V DC (>53V DC for PoE+ output recommended), 11A
Power Consumption	Max. 33 watts/112.51 BTU (Power on without any connection)
Power Consumption	Max. 536 watts/1828.90 BTU (Full loading with PoE function)
Power Over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type	End-span
PoE Power Output	IEEE 802.3af Standard
	- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
	IEEE 802.3at Standard
	- Per port 52V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment	1/2 (+), 3/6 (-)
PoE Power Budget	48V Power input
	- Single power input: 240W maximum (depending on power input)
	- Dual power input: 300W maximum (depending on power input)
	52~56V Power input
	- Single power input: 240W maximum (depending on power input)
	- Dual power input: 440W maximum (depending on power input)
	※Dual power input must be the same as DC voltage, like dual 56V
Max. Number of Class 2 PDs	24
Max. Number of Class 3 PDs	24
Max. Number of Class 4 PDs	16
Layer 2 Function
Port Configuration	Port disable/enable
	Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
	Flow control disable/enable
	Power saving mode control
Port Status	Display each port’s speed duplex mode, link status, flow control status,
Port Status	auto negotiation status, trunk status
Port Mirroring	TX / RX / Both
Port Mirroring	Many-to-1 monitor
VLAN	IEEE 802.1Q tag-based VLAN
	IEEE 802.1ad Q-in-Q tunneling
	Private VLAN Edge (PVE)
	MAC-based VLAN
	Protocol-based VLAN
	Voice VLAN
	MVR (Multicast VLAN Registration)
	GVRP (GARP VLAN Registration Protocol)
	Up to 256 VLAN groups, out of 4096 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP/static trunk
Link Aggregation	Supports 14 trunk groups with 16 ports per trunk group
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
QoS	Traffic classification based, strict priority and WRR
	8-level priority for switching
	- Port number
	- 802.1p priority
	- 802.1Q VLAN tag
	- DSCP/TOS field in IP packet
IGMP Snooping	IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups
IGMP Snooping	IPv4 IGMP querier mode support
MLD Snooping	IPv6 MLD (v1/v2) snooping, up to 255 multicast groups
MLD Snooping	IPv6 MLD querier mode support
Access Control List	IP-based ACL/MAC-based ACL
Access Control List	Up to 256 entries
Bandwidth Control	Per port bandwidth control
	Ingress: 10Kbps~13000Mbps
	Egress: 100Kbps~13000Mbps
Layer 3 Function
IP Interfaces	Max. 128 VLAN interfaces
Routing Table	Max. 128 routing entries
Routing Protocols	IPv4 hardware static routing
	IPv6 hardware static routing
	IPv4 OSPFv2 dynamic routing
Management
Basic Management Interfaces	Console; Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces	SSH, TLS, SSL, SNMP v3
SNMP MIBs	RFC 1213 MIB-II
	RFC 1493 Bridge MIB
	RFC 1643 Ethernet MIB
	RFC 2863 Interface MIB
	RFC 2665 Ether-Like MIB
	RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
	RFC 2737 Entity MIB
	RFC 2618 RADIUS Client MIB
	RFC 2933 IGMP-STD-MIB
	RFC 3411 SNMP-Frameworks-MIB
	RFC 4292 IP Forward MIB
	IEEE 802.1X PAE
	LLDP
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX/100BASE-FX
	IEEE 802.3z Gigabit SX/LX
	IEEE 802.3ab Gigabit 1000T
	IEEE 802.3x flow control and back pressure
	IEEE 802.3ad port trunk with LACP
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
	IEEE 802.1p Class of Service
	IEEE 802.1Q VLAN tagging
	IEEE 802.1ad Q-in-Q VLAN stacking
	IEEE 802.1X Port Authentication Network Control
	IEEE 802.1ab LLDP
	IEEE 802.3ah OAM
	IEEE 802.1ag Connectivity Fault Management (CFM)
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 1588 PTPv2
	RFC 768 UDP
	RFC 793 TFTP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP v1
	RFC 2236 IGMP v2
	RFC 3376 IGMP version 3
	RFC 2710 MLD version 1
	FRC 3810 MLD version 2
	ITU G.8032 ERPS Ring
	ITU-T G.8032 ERPS Ring
	ITU-T Y.1731 Performance Monitoring
Environment
Operating Temperature	-40 ~ 75 degrees C
Storage Temperature	-40 ~ 85 degrees C
Humidity	5 ~ 95% (non-condensing)
