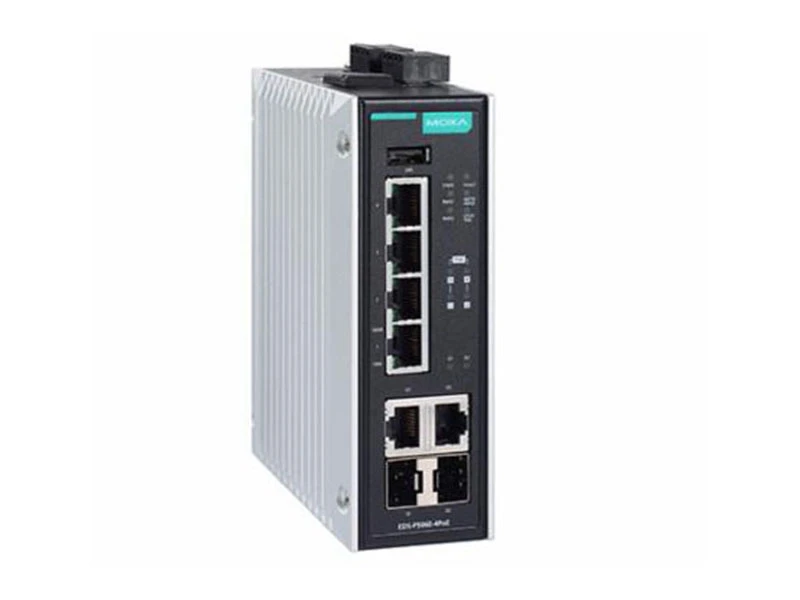

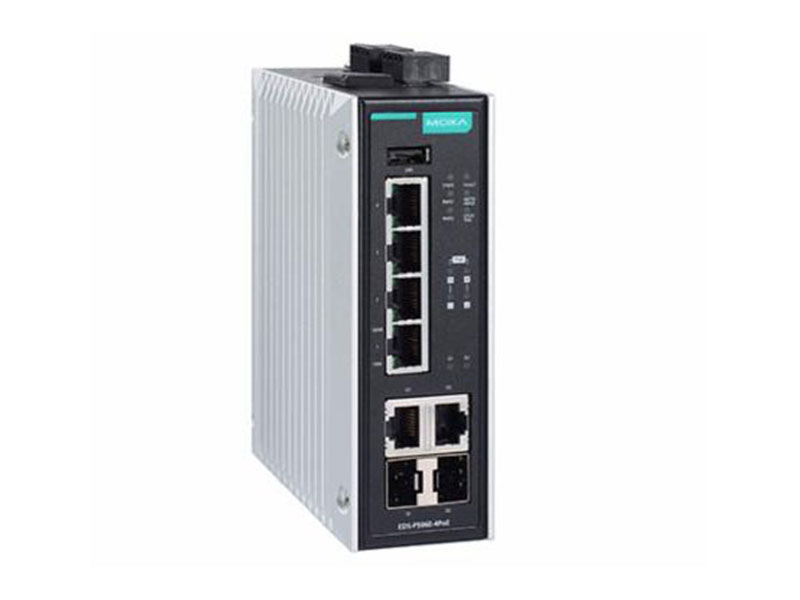

Moxa EDS P506E 4PoE 2GTXSFP Endüstriyel PoE Switch

Özellikler

Built-in 4 PoE+ ports compliant with IEEE 802.3af/at standards
Up to 60 W output per PoE+ port
4 kV LAN surge protection for extreme outdoor environments
PoE diagnostic for powered device mode analysis
2 Gigabit combo ports for high-bandwidth and long-distance communication
Operates at 180 watts full PoE+ loading at -40 to 75°C
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery

Teknik Özellikler

Technology
Standards	IEEE 802.3af/at for Power-over-Ethernet
	IEEE 802.3 for 10BaseT
	IEEE 802.3u for 100BaseT(X) and 100BaseFX
	IEEE 802.3ab for 1000BaseT(X)
	IEEE 802.3z for 1000BaseX
	IEEE 802.3x for Flow Control
	IEEE 802.1D-2004 for Spanning Tree Protocol
	IEEE 802.1w for Rapid STP
	IEEE 802.1s for Multiple Spanning Tree Protocol
	IEEE 802.1Q for VLAN Tagging
	IEEE 802.1p for Class of Service
	IEEE 802.1X for Authentication
	IEEE 802.3ad for Port Trunk with LACP
Software Features
Management	IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control
Filter	802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2/v3, GMRP
Redundancy Protocols	STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation, V-ON
Security	RADIUS, TACACS+, MAB Authentication, HTTPS, SSL, SSH,Broadcast Storm Protection, Port Lock, MAC ACL, MAC Sticky, NTP Authentication, SMTP with TLS
Time Management	SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based)
Industrial Protocols	EtherNet/IP, Modbus/TCP, PROFINET IO
MIB	MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Switch Properties
Priority Queues	4
Max. Number of VLANs	4096
VLAN ID Range	VID 1 to 4094
IGMP Groups	256
MAC Table Size	16 K
Packet Buffer Size	12 Mbits
Interface
RJ45 Ports	10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation speed
Fiber Ports	100/1000BaseSFP slot
Console Port	USB serial console (Type B connector)
PoE Pinout	2-Pair PoE Mode: V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)
DIP Switches	Turbo Ring, Master, Coupler, Reserve
Alarm Contact	1 relay output with current carrying capacity of 0.5 A @ 48 VDC
Digital Inputs	1 input with the same ground, but electrically isolated from the electronics.• +13 to +30 V for state “1”
	• -30 to +3 V for state “”
	• Max. input current: 8 mA
Power Requirements
Input Voltage	12/24/48 VDC, redundant dual inputs (> 50 VDC for PoE+ or 60W output recommended)
Operating Voltage	12 to 57 VDC
Input Current	4.08 A @ 48 VDC
Overload Current Protection	Present
Connection	2 removable 4-contact terminal blocks
Reverse Polarity Protection	Present
Power Consumption	Max. 18.96 W full loading without PDs' consumption
Power Budget	• Max. 180 W for total PDs’ consumption @ 48 VDC input
	• Max. 150 W for total PDs’ consumption @ 24 VDC input
	• Max. 62 W for total PDs’ consumption @ 12 VDC input
	• Max. 60 W for each PoE port
Physical Characteristics
Housing	Metal
IP Rating	IP40 protection
Dimensions	49.1 x 135 x 116 mm (1.93 x 5.31 x 4.57 in)
Weight	910 g (2.00 lb)
Installation	DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature	Standard Models: -10 to 60°C (14 to 140°F)
Operating Temperature	Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Note	Please check Moxa’s website for the most up-to-date certification status.
Safety	UL 61010-2-201, EN 61010 (LVD)
EMC	EN 61000-6-2/6-4
EMI	CISPR 22, FCC Part 15B Class A
EMS	EN 61000-4-2 (ESD): Contact: 8 kV; Air: 15 kV
	EN 61000-4-3 (RS): 80 MHz to 1 GHz: 20 V/m
	EN 61000-4-4 (EFT): Power: 4 kV; Signal: 4 kV
	EN 61000-4-5 (Surge): Power: 4 kV; Signal: 4 kV
	EN 61000-4-6 (CS): 10 V
	EN 61000-4-8
Electrical Substations	IEC 61850-3, IEEE 1613
Traffic Control	NEMA-TS2
Rail Traffic	EN 50121-4
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Vibration	IEC 60068-2-6
MTBF (mean time between failures)
Time	755,167 hrs
Standard	Telcordia (Bellcore), GB
Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty
