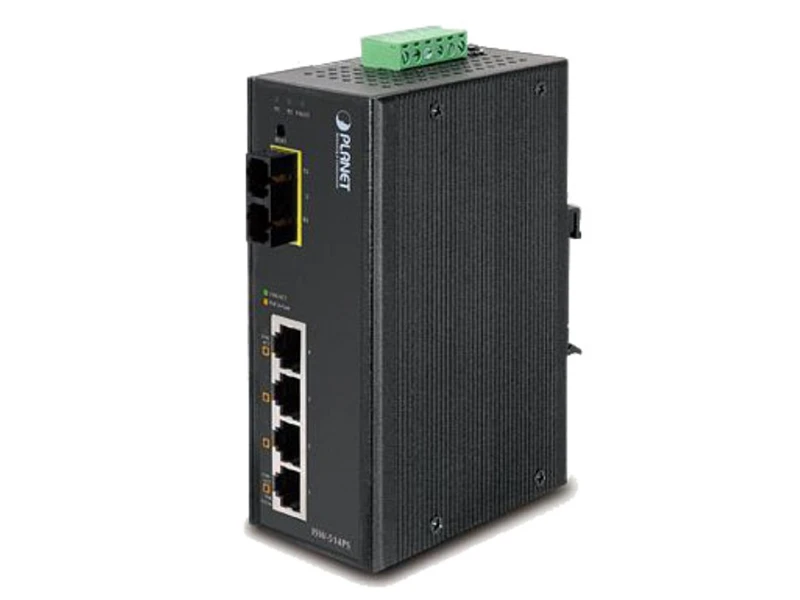

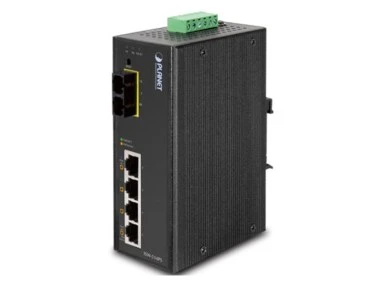

Planet ISW 514PS 10/100 Endüstriyel PoE Switch

Teknik Özellikler

Physical Port
ISW-514PS
4-port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector
1-port 100Base-FX multi-mode SC interface - 2km ISW-514PS15
4-port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector
1-port 100Base-FX single mode SC interface - 15km ISW-514PSF
4-port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector
1-port 100Base-FX SFP interface
IEEE 802.3af PoE
Complies with IEEE 802.3af Power over Ethernet End-Span PSE
Up to 4 IEEE 802.3af devices powered
Supports PoE Power up to 15.4 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
PoE Management
Total PoE Power Budget Control
Enable / Disable PoE Function on each port
PoE port Power Feeding priority
Power limit on PoE port
PD Classification Detection
Web Management
Web interface for remote management
Firmware upgrade through Web interface
PLANET Smart Discovery utility automatically finds PLANET devices on the network
SNMP Trap for alarm notification of events
VLAN and QoS configuration
Layer 2 Features
Supports auto-negotiation and 10/100Mbps half / full duplex and auto MDI/MDI-X
High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Automatic address learning and address aging
Integrated address look-up engine, supports 1K absolute MAC addresses
CSMA/CD Protocol
Industrial Case / Installation
IP30 aluminum metal case protection
DIN rail and wall mount design
Redundant Power design
24 or 48V DC, redundant power with polarity reverse protect function
Supports EFT protection 6000V DC for protection power line
Supports Ethernet ESD 6000V DC protection
-10 to 60 degrees C operation temperature
pdfPlanet ISW 514PS 10/100 Endüstriyel PoE Switch Pdf Dosyası1.06 MB

Teknik Kısa

PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
PoE Port Sayısı : Tooltip 4 Port
PoE Güç Bütçesi : 50-130 Watt
Montaj Tipi : Wall Mount
