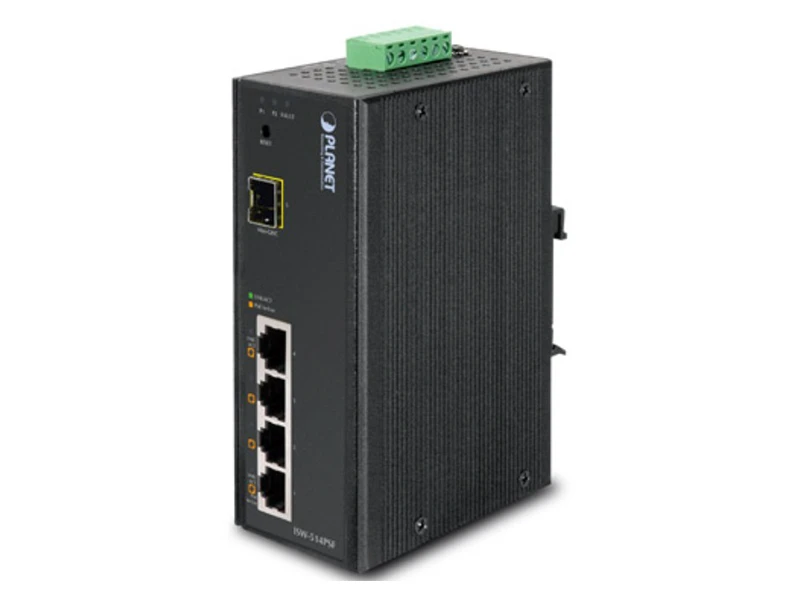

Planet ISW 514PSF 10/100 Endüstriyel PoE Switch
Teknik Özellikler
| Physical Port |
| ISW-514PS |
| 4-port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector |
| 1-port 100Base-FX multi-mode SC interface - 2km ISW-514PS15 |
| 4-port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector |
| 1-port 100Base-FX single mode SC interface - 15km ISW-514PSF |
| 4-port 10/100Base-TX RJ-45 with IEEE 802.3af PoE injector |
| 1-port 100Base-FX SFP interface |
| IEEE 802.3af PoE |
| Complies with IEEE 802.3af Power over Ethernet End-Span PSE |
| Up to 4 IEEE 802.3af devices powered |
| Supports PoE Power up to 15.4 watts for each PoE port |
| Auto detects powered device (PD) |
| Circuit protection prevents power interference between ports |
| Remote power feeding up to 100m |
| PoE Management |
| Total PoE Power Budget Control |
| Enable / Disable PoE Function on each port |
| PoE port Power Feeding priority |
| Power limit on PoE port |
| PD Classification Detection |
| Web Management |
| Web interface for remote management |
| Firmware upgrade through Web interface |
| PLANET Smart Discovery utility automatically finds PLANET devices on the network |
| SNMP Trap for alarm notification of events |
| VLAN and QoS configuration |
| Layer 2 Features |
| Supports auto-negotiation and 10/100Mbps half / full duplex and auto MDI/MDI-X |
| High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth |
| Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) |
| Automatic address learning and address aging |
| Integrated address look-up engine, supports 1K absolute MAC addresses |
| CSMA/CD Protocol |
| Industrial Case / Installation |
| IP30 aluminum metal case protection |
| DIN rail and wall mount design |
| Redundant Power design |
| 24 or 48V DC, redundant power with polarity reverse protect function |
| Supports EFT protection 6000V DC for protection power line |
| Supports Ethernet ESD 6000V DC protection |
| -10 to 60 degrees C operation temperature |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 1
Aktarım Türü : Gbit Fiber
Montaj Tipi : Rack Mount
PoE Port Sayısı :
4 Port
4 Port
