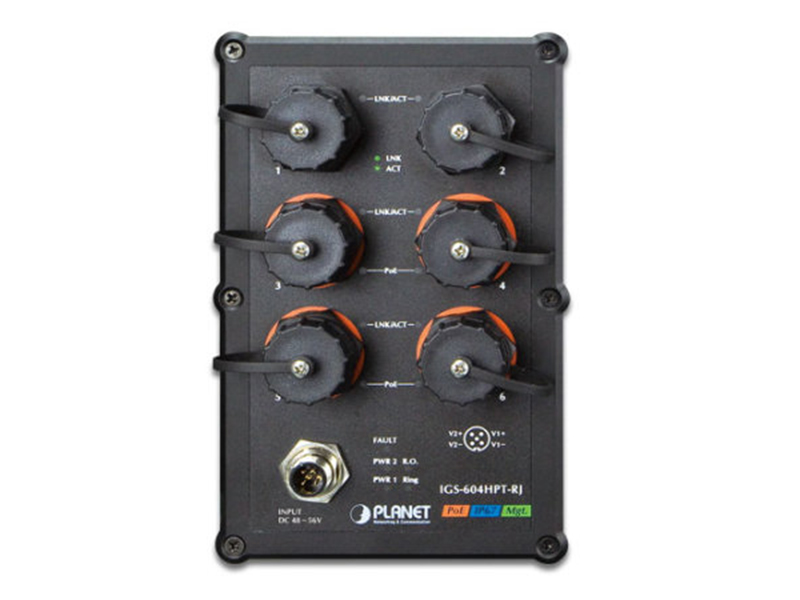

Planet PL IGS 604HPT RJ Endüstriyel PoE Switch
Özellikler
Teknik Özellikler
| Hardware Specifications | |
| Copper Ports | 6 10/100/1000BASE-T waterproof and dustproof RJ45 auto-MDI/MDI-X ports |
| PoE Injector Port | 4 ports with 802.3at/af PoE injector function (Port-3 to Port-6) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 12Gbps/non-blocking |
| Throughput | 8.9Mpps@64bytes |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex | |
| Jumbo Frame | 9Kbytes |
| Reset Button | < 5 sec: System reboot |
| > 5 sec: Factory default | |
| Dimensions (W x D x H) | 103 x 68.3 x 163 mm |
| Weight | 1069g |
| LED | System: |
| DC1 (Green), DC2 (Green), Fault (Red) | |
| Ring (Green), R.O. (Green) | |
| 10/100/1000T RJ45 Interfaces (Port 1 to Port 2): | |
| LNK/ACT (Green) | |
| 10/100/1000T RJ45 Interfaces (Port 3 to Port 6): | |
| LNK/ACT (Green) | |
| PoE-in-Use (Orange) | |
| Power Consumption | Max. 160 watts/545.9 BTU |
| Power Requirements | Dual 48~56V DC (>53V DC for PoE+ output recommended) |
| EFT Protection | 6KV DC |
| ESD Protection | 6KV DC |
| PoE Standard | IEEE 802.3af/802.3at PoE/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard |
| - Per port 48V~53V DC (depending on the power supply), max. 15.4 watts | |
| IEEE 802.3at Standard | |
| - Per port 53V~56V DC (depending on the power supply), max. 36 watts | |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 144 watts max. (depending on power input) |
| PoE Ability | PD @ 7 watts: 4 units |
| PD @ 15.4 watts: 4 units | |
| PD @ 30.8 watts: 4 units | |
| Layer 2 Management Functions | |
| Port Configuration | Port disable/enable |
| Auto-negotiation 10/100/1000Mbps full and half duplex mode selection | |
| Flow control disable/enable | |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, |
| auto-negotiation status, trunk status | |
| Port Mirroring | TX/RX/Both |
| Many-to-1 monitor | |
| VLAN | 802.1Q tagged based VLAN |
| Q-in-Q tunneling | |
| Private VLAN Edge (PVE) | |
| MAC-based VLAN | |
| Protocol-based VLAN | |
| Voice VLAN | |
| IP Subnet-based VLAN | |
| MVR (Multicast VLAN registration) | |
| Up to 255 VLAN groups, out of 4095 VLAN IDs | |
| Link Aggregation | IEEE 802.3ad LACP/static trunk |
| 3 groups with 2 port per trunk | |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) |
| IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) | |
| IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) | |
| QoS | Traffic classification based, Strict priority and WRR |
| 8-level priority for switching: | |
| - Port number | |
| - 802.1p priority | |
| - 802.1Q VLAN tag | |
| - DSCP/ToS field in IP packet | |
| IGMP Snooping | IGMP (v1/v2/v3) snooping, up to 255 multicast groups |
| IGMP querier mode support | |
| MLD Snooping | MLD (v1/v2) snooping, up to 255 multicast groups |
| MLD querier mode support | |
| Access Control List | IP-based ACL/MAC-based ACL |
| Up to 256 entries | |
| Bandwidth Control | Per port bandwidth control |
| Ingress: 100Kbps~1000Mbps | |
| Egress: 100Kbps~1000Mbps | |
| Layer 3 Functions | |
| IP Interfaces | Max. 8 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 software static routing |
| IPv6 software static routing | |
| Management | |
| Basic Management Interfaces | Telnet/Web browser/SNMP v1, v2c |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II |
| RFC 1493 Bridge MIB | |
| RFC 1643 Ethernet MIB | |
| RFC 2863 Interface MIB | |
| RFC 2665 Ether-Like MIB | |
| RFC 2819 RMON MIB (Group 1, 2, 3 and 9) | |
| RFC 2737 Entity MIB | |
| RFC 2618 RADIUS Client MIB | |
| RFC 2863 IF-MIB | |
| RFC 2933 IGMP-STD-MIB | |
| RFC 3411 SNMP-Frameworks-MIB | |
| RFC 4292 IP Forward MIB | |
| RFC 4293 IP MIB | |
| RFC 4836 MAU-MIB | |
| IEEE 802.1X PAE | |
| LLDP | |
| Power over Ethernet MIB | |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3ab Gigabit 1000T | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3ad port trunk with LACP | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1s Multiple Spanning Tree Protocol | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN tagging | |
| IEEE 802.1X Port Authentication Network Control | |
| IEEE 802.1ab LLDP | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| RFC 768 UDP | |
| RFC 793 TFTP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP v1 | |
| RFC 2236 IGMP v2 | |
| RFC 3376 IGMP v3 | |
| RFC 2710 MLD v1 | |
| FRC 3810 MLD v2 | |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Storage | Temperature: -40 ~ 80 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
Planet PL IGS 604HPT RJ Endüstriyel PoE Switch PDF Dosyası3.77 MB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2 Plus
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 130-200 Watt
Montaj Tipi : Wall Mount
