Açıklama

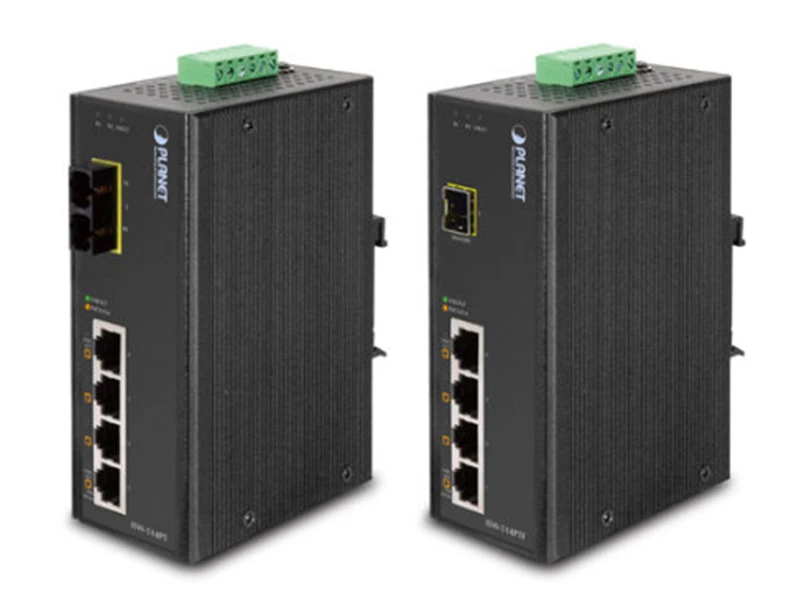

Planet PL ISW 514PTF Endüstriyel PoE Switch
Özellikler
- 4-Port 10/100Base-TX RJ-45
- IEEE 802.3af PoE enjektör özellikli
- 1-Port 100Base-FX arayüz
- IP30
- -40~75 Derece
- Per port 15.4 watt
Teknik Özellikler
Hardware Specification | |
10/100Base-TX Ports | 4 |
100Base-FX Port | 1 |
Fiber Port Type | ISW-514PT:Multi-Mode |
ISW-514PT15:Single Mode | |
ISW-514PTF:Vary on SFP | |
Connector Type | ISW-514PT:SC |
ISW-514PT15:SC | |
ISW-514PTF:LC | |
Maximum Distance | ISW-514PT:2km |
ISW-514PT15:15km | |
ISW-514PTF:Vary on SFP | |
Optical Frequency | ISW-514PT:1300nm |
ISW-514PT15:1310nm | |
ISW-514PTF:Vary on SFP | |
Launch Power (dBm) | ISW-514PT:Max.: -14 Min.: -20 |
ISW-514PT15:Max.: 0 Min.: -20 | |
ISW-514PTF:Vary on SFP | |
Receive Sensitivity (dBm) | ISW-514PT:-32 |
ISW-514PT15:-32 | |
ISW-514PTF:Vary on SFP | |
IEEE 802.3af PoE ports | 4 |
Dimension (D x W x H) | 135 x 87.8 x 56 mm |
Weight | 842g |
Power LED | Power1, Power2 and Fault |
Port 1~4: PoE in-use, LNK/ACT | |
Port 5: LNK/ACT | |
Power Requirement | 24 or 48 V DC, Redundant power with polarity reverse protection function |
Installation | DIN Rail kit and Wall Mount ear |
Alarm | Provides one relay output for power fail |
Alarm Relay current carry ability: 1A @ DC 24V | |
Power over Ethernet | |
PoE Standard | IEEE 802.3af Power over Ethernet / PSE |
PoE Power Supply Type | End-Span |
PoE Power Output | Per Port 48V DC, 350mA . Max. 15.4 Watts |
Power Pin Assignment | 1/2(+), 3/6(-) |
Switch Specification | |
Switch Processing Scheme | Store-and-Forward |
Address Table | 2K entries |
Flow Control | Back Pressure for Half Duplex |
IEEE 802.3x Pause Frame for Full Duplex | |
Switch fabric | 1Gbps |
Throughput (packet per second) | 0.74Mpps |
Network cables | 10/100Base-TX: |
Cat. 3, 4, 5, 5e and 6 UTP cable (100meters max.) | |
EIA/TIA-568 100-ohm STP (100meters, max.) | |
Standards Conformance | |
Standards Compliance | IEEE 802.3 Ethernet |
IEEE 802.3u Fast Ethernet | |
IEEE 802.3x Full-Duplex Flow Control | |
IEEE 802.3af Power over Ethernet | |
Regulation Compliance | FCC Part 15 Class A, CE |
Stability Testing | IEC60068-2-32 (Free Fall) |
IEC60068-2-27 (Shock) | |
IEC60068-2-6 (Vibration) | |
Environment | |
Temperature | Operating: -40~75 Degree C |
Storage: -40~85 Degree C | |
Humidity | Operating: 5~90%, Storage: 5~90% (Non-condensing) |
Planet PL ISW 514PTF Endüstriyel PoE Switch PDF Dosyası951.86 KB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 1
Aktarım Türü : Rj45
Çalışma Mesafesi : 100Mt.
Montaj Tipi : Wall Mount
PoE Port Sayısı : 4 Port
PoE Güç Bütçesi : 50-130 Watt
