| Technology |
| Standards |
IEEE 802.3 for 10BaseT |
| IEEE 802.3u for 100BaseT(X) and 100BaseFX |
| IEEE 802.3ab for 1000BaseT(X) |
| IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
| IEEE 802.3ae for 10 Gigabit Ethernet |
| IEEE 802.3af/at for PoE/PoE+ output |
| IEEE 802.3x for Flow Control |
| IEEE 802.1D-2004 for Spanning Tree Protocol |
| IEEE 802.1w for Rapid Spanning Tree Protocol |
| IEEE 802.1s for Multiple Spanning Tree Protocol |
| IEEE 802.1Q for VLAN Tagging |
| IEEE 802.1p for Class of Service |
| IEEE 802.1X for Authentication |
| IEEE 802.3ad for Port Trunk with LACP |
| Software Features |
| Management |
IPv4, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Filter |
802.1Q VLAN, Q-in-Q VLAN, GVRP, IGMP v1/v2/v3, GMRP |
| Redundancy Protocols |
STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation |
| Security |
RADIUS, TACACS+, SSL, SSH, Broadcast Storm Protection, Port Lock, Access Control Lists (ICS-G7800A series only) |
| Unicast Routing |
Static Routing, RIPV1/V2, OSPF (ICS-G7800A series) |
| Multicast Routing |
DVMRP, PIM-DM, PIM-SM, PIM-SSM (ICS-G7800A series) |
| Time Management |
SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based) |
| Industrial Protocols |
EtherNet/IP, Modbus/TCP |
| MIB |
MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Groups 1, 2, 3, 9 |
| Routing Redundancy |
VRRP (ICS-G7800A series) |
| Switch Properties |
| Priority Queues |
8 |
| Max. Number of VLANs |
256 |
| VLAN ID Range |
VID 1 to 4094 |
| IGMP Groups |
4096 |
| MAC Table Size |
16 K |
| Packet Buffer Size |
12 Mbit |
| DRAM Size |
128 MB |
| Flash Size |
16 MB |
| Jumbo Frame Size |
9.6 KB |

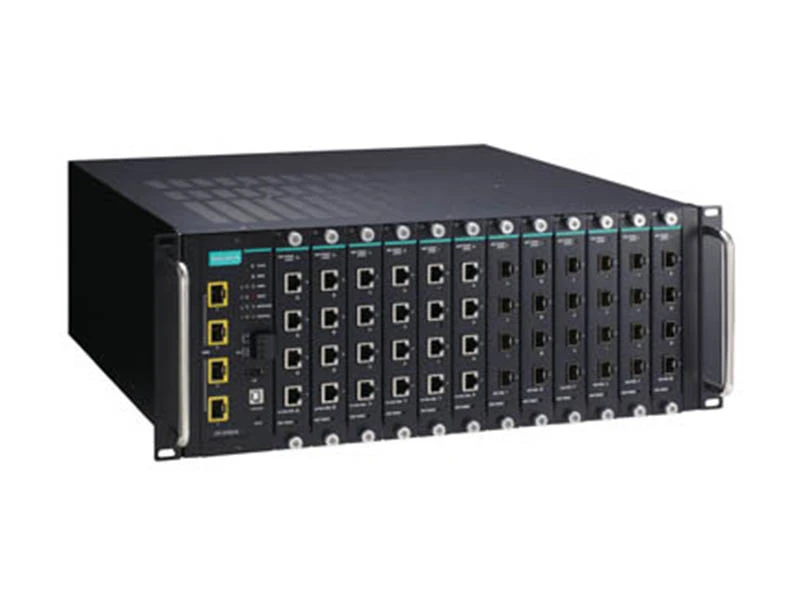

| Interface |
| Gigabit Ethernet |
12 slots for 4-port interface modules |
| • 10/100/1000BaseT(X), or |
| • PoE+ 10/100/1000BaseT(X), or |
| • 100/1000BaseSFP slots |
| Note: See the IM-G7000A datasheet for Gigabit Ethernet module product information. |
| 10 Gigabit Ethernet |
2 or 4 10GbE SFP+ slots (ICS-G7850A and ICS-G7852A only) |
| Console Port |
USB-serial console (Type B connector) |
| Storage Port |
USB storage (Type A connector for ABC-02-USB) |
| Alarm Contact |
1 relay output with current carrying capacity of 2 A @ 30 VDC |
| Digital Inputs |
1 input with the same ground, but electrically isolated from the electronics. |
| • +13 to +30 V for state “1” |
| • -30 to +1 V for state “” |
| • Max. input current: 8 mA |
| Power Requirements |
| Input Voltage |
110/220 VAC |
| Operating Voltage |
85 to 264 VAC |
| Input Current |
ICS-G7848A: Max. 0.87/0.51 A @ 110/220 VAC |
| ICS-G7850A: Max. 0.94/0.55 A @ 110/220 VAC |
| ICS-G7852A: Max. 1.01/0.58 A @ 110/220 VAC |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present |
| Physical Characteristics |
| IP Rating |
IP30 protection |
| Dimensions |
440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in) |
| Weight |
12.9 kg (28.5 lb) |
| Installation |
19-inch rack mounting |
| Environmental Limits |
| Operating Temperature |
-10 to 60°C (14 to 140°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Standards and Certifications |
| Safety |
UL 60950-1, EN 60950-1 |
| EMC |
EN 55032/24 |
| EMI |
CISPR 32, FCC Part 15B Class A |
| EMS |
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV |
| IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m |
| IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV |
| IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV |
| IEC 61000-4-6 CS: Signal: 10 V |
| IEC 61000-4-8 |
| Rail Traffic |
EN 50121-4 |
| Shock |
IEC 60068-2-27 |
| Freefall |
IEC 60068-2-32 |
| Vibration |
IEC 60068-2-6 |
| Note: Please check Moxa’s website for the most up-to-date certification status. |
| MTBF (mean time between failures) |
| Time |
ICS-G7848A: 314,973 hrs |
| ICS-G7850A: 282,329 hrs |
| ICS-G7852A: 274,488 hrs |
| Standard |
Telcordia (Bellcore), GB |
| Warranty |
| Warranty Period |
5 years |
| Details |
See www.moxa.com/warranty |
