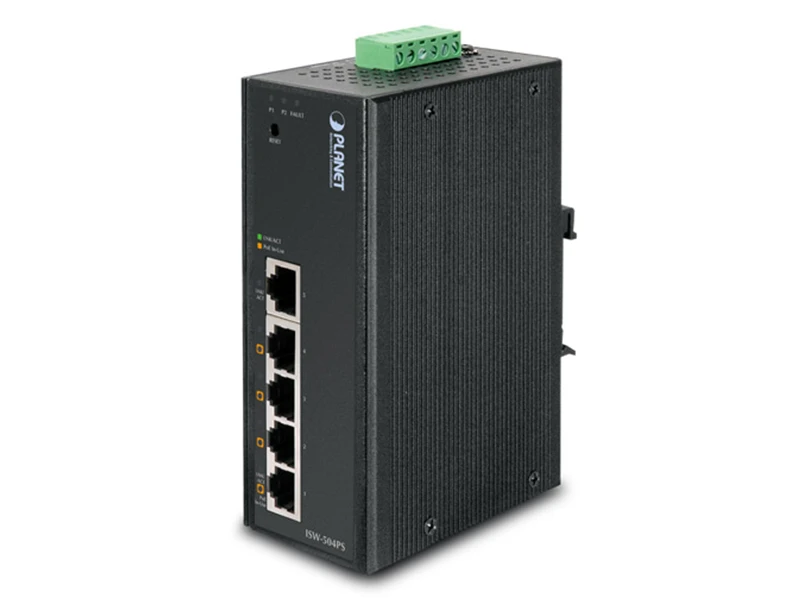

Planet ISW 504PS 10/100 Endüstriyel PoE Switch
Teknik Özellikler
Physical Port |
5-port 10/100Mbps RJ-45 with auto MDI/MDI-X function |
4-port support 48V DC power to PoE Powered Device (Port-1 to Port-4) |
IEEE 802.3af PoE |
Complies with IEEE 802.3af Power over Ethernet End-Span PSE |
Up to 4 IEEE 802.3af devices powered |
Supports PoE Power up to 15.4 watts for each PoE port |
Auto detect powered device (PD) |
Circuit protection prevent power interference between ports |
Remote power feeding up to 100m |
PoE Management |
Total PoE Power Budget Control |
Enable / Disable PoE Function on each port |
PoE port Power Feeding priority |
Power limit on PoE port |
PD Classification Detection |
Web Management |
Web interface for remote management |
Firmware upgrade through Web interface |
Planet Smart Discovery utility automatically finds Planet devices on the network |
SNMP Trap for alarm notification of events |
VLAN and QoS configuration |
Layer 2 Features |
Supports auto negotiation and 10/100Mbps half / full duplex and auto MDI/MDI-X |
High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth |
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) |
Automatic address learning and address aging |
Integrated address look-up engine, supports 1K absolute MAC addresses |
CSMA/CD Protocol |
Industrial Case / Installation |
IP30 aluminum metal case protection |
DIN rail and wall mount design |
Redundant power design |
24 or 48V DC, redundant power with polarity reverse protect function |
Supports EFT protection 6000V DC for power line |
Supports ESD 6000V DC Ethernet protection |
-10 to 60 degrees C operating temperature |
Planet ISW 504PS 10/100 Endüstriyel PoE Switch Pdf Dosyası454.44 KB
Teknik Kısa
PoE : Hibrid
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Montaj Tipi : Wall Mount
PoE Port Sayısı : 4 Port
PoE Güç Bütçesi : 50-130 Watt
