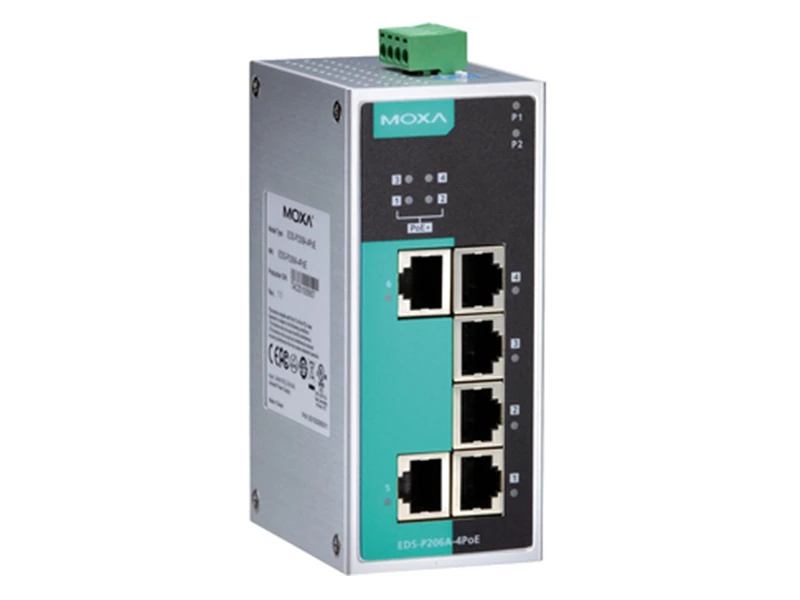

MOXA EDS P206A 4PoE 10/100 Endüstriyel PoE Switch
Özellikler
Teknik Özellikler
Technology | |
Standards | IEEE 802.3af/at for Power-over-Ethernet |
IEEE 802.3 for 10BaseT | |
IEEE 802.3u for 100BaseT(X) | |
IEEE 802.3x for Flow Control | |
Processing Type | Store and Forward |
Switch Properties | |
MAC Table Size | 2 K |
Packet Buffer Size | 768 Kbit |
Interface | |
RJ45 Ports | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection |
Fiber Ports | 100BaseFX ports (SC/ST connector) |
PoE Pinout | V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI-X Alternative A) |
Optical Fiber | |
Table | |
Power Requirements | |
Input Voltage | 12/24/48 VDC, redundant dual inputs |
Operating Voltage | 12 to 57 VDC |
Input Current | 5.55 A @ 24 VDC |
Overload Current Protection | Present |
Connection | 1 removable 4-contact terminal block |
Reverse Polarity Protection | Present |
Power Consumption | Max. 13.2 W full loading without PDs' consumption |
Power Budget | Max. 120 W for total PDs’ consumptionMax. 30 W for each PoE port |
Physical Characteristics | |
Housing | Metal |
IP Rating | IP30 protection |
Dimensions | 50.3 × 114 × 70 mm (1.98 x 4.53 x 2.76 in) |
Weight | 375 g (0.83 lb) |
Installation | DIN-rail mounting, wall mounting (with optional kit) |
Environmental Limits | |
Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) |
Wide Temp. Models: -40 to 75°C (-40 to 167°F) | |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
Note | Please check Moxa’s website for the most up-to-date certification status. |
Safety | UL 508 |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV |
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m | |
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV | |
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV | |
IEC 61000-4-6 CS: Signal: 10 V | |
IEC 61000-4-8 | |
Shock | IEC 60068-2-27 |
Freefall | IEC 60068-2-32 |
Vibration | IEC 60068-2-6 |
MTBF (mean time between failures) | |
Time | 1,398,743 hrs |
Standard | Telcordia (Bellcore), GB |
MOXA EDS P206A 4PoE 10/100 Endüstriyel PoE Switch Pdf Dosyası683.11 KB
Teknik Kısa
PoE : PoE
Yönetilebilirlik : Yönetilemez
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
4 Port
![Tooltip](/media/system/images/tooltip.png)
PoE Güç Bütçesi : 50-130 Watt
