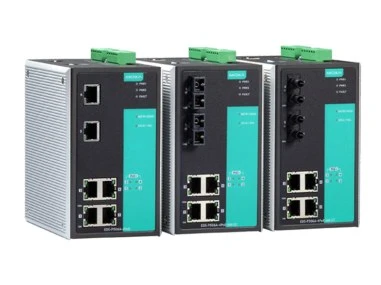

Moxa EDS P506A 4PoE MM SC T Endsütriyel PoE Switch

Özellikler

4 IEEE 802.3af/at compliant PoE and Ethernet combo ports
Up to 30 watts per PoE port
24/48 VDC wide range redundant power inputs
Advanced PoE management functions, including PD failure check and PoE scheduling
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
-40 to 75°C operating temperature range (T models)
Supports MXstudio for easy, visualized industrial network management

Teknik Özellikler

Technology
Standards	IEEE 802.3af/at for Power-over-Ethernet
	IEEE 802.3 for 10BaseT
	IEEE 802.3u for 100BaseT(X) and 100BaseFX
	IEEE 802.3x for Flow Control
	IEEE 802.1D-2004 for Spanning Tree Protocol
	IEEE 802.1w for Rapid STP
	IEEE 802.1s for Multiple Spanning Tree Protocol
	IEEE 802.1Q for VLAN Tagging
	IEEE 802.1p for Class of Service
	IEEE 802.1X for Authentication
	IEEE 802.3ad for Port Trunk with LACP
Software Features
Management	IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control
Filter	802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP
Redundancy Protocols	STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation
Security	RADIUS, TACACS+, SSL, SSH, Port Lock
Time Management	SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based)
Industrial Protocols	EtherNet/IP, Modbus/TCP
MIB	MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Switch Properties
Priority Queues	4
Max. Number of VLANs	64
VLAN ID Range	VID 1 to 4094
IGMP Groups	256
MAC Table Size	8 K
Packet Buffer Size	1 Mbit
Interface
RJ45 Ports	10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Ports	100BaseFX ports (SC/ST connector)
Console Port	RS-232 (RJ45 connector)
PoE Pinout	V+, V+, V-, V- for pin 1, 2, 3, 6 (Endspan, MDI Alternative A)
DIP Switches	Turbo Ring, Master, Coupler, Reserve
Alarm Contact	2 relay outputs with current carrying capacity of 1 A @ 24 VDC
Digital Inputs	2 inputs with the same ground, but electrically isolated from the electronics.
	• +13 to +30 V for state “1”
	• -30 to +3 V for state “”
	• Max. input current: 8 mA
Power Requirements
Input Voltage	24/48 VDC, redundant dual inputs
Operating Voltage	22 to 57 VDC
Input Current	5.72 A @ 24 VDC
Connection	2 removable 6-contact terminal blocks
Reverse Polarity Protection	Present
Power Consumption	Max. 17.28 W full loading without PDs' consumption
Power Budget	Max. 120 W for total PDs’ consumptionMax. 30 W for each PoE port
Physical Characteristics
Housing	Metal
IP Rating	IP30 protection
Dimensions	80 x 135 x 131.5 mm (3.15 x 5.31 x 5.18 in)
Weight	1270 g (2.80 lb)
Installation	DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature	Standard Models: 0 to 60°C (32 to 140°F)
Operating Temperature	Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications
Safety	UL 508
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
	IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
	IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
	IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
	IEC 61000-4-6 CS: Signal: 10 V
	IEC 61000-4-8
Rail Traffic	EN 50121-4
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Vibration	Note: Please check Moxa’s website for the most up-to-date certification status.
MTBF (mean time between failures)
Time	433,000 hrs
Standard	Telcordia (Bellcore), GB
