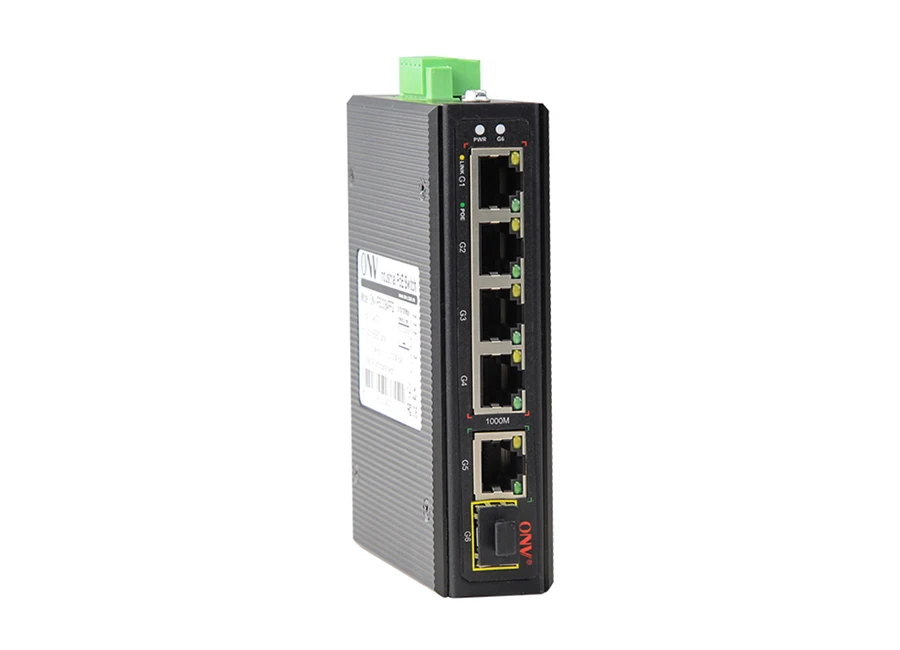

ONV ONV-IPS33064PFG Endüstriyel PoE Switch

Özellikler

Unmanaged industrial PoE fiber switch with 5*10/100/1000M RJ45 ports and 1*1000M uplink SFP slot port, Port 1-4 can support IEEE802.3af/at PoE.
Support DC dual power supply input and DIN rail mounting.

Teknik Özellikler

Model	ONV-IPS33064PFG
Interface Characteristics
Fixed Port	4*10/100/1000Base-T PoE ports (Data/Power)
	1*10/100/1000Base-T uplink RJ45 port (Data)
	1*1000Base-X uplink SFP fiber slot port (Data)
	2 sets of V+, V- redundant DC power port (5P Phoenix terminal)
Ethernet Port	Port 1-4 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
	1000BASE-T: Cat5e or later UTP(≤100 meter)
Fiber Port	Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/Distance	Multi-mode: 850nm 0 ~ 550M, Single-mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
	IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	12Gbps
Forwarding Rate@64byte	8.93Mpps
MAC	2K
Buffer Memory	2M
Jumbo Frames	9.2K
LED Indicator	Power: PWR (green), Network : Link (yellow), PoE : PoE (green), Fiber port :6 (green)
PoE & Power Supply
PoE Port	Port 1 to 4 IEEE802.3af/at @ POE
Power Supply Pin	1/2 (+), 3/6 (-)&4/5 (+), 7/8 (-) 4-pairs power supply
Max Power Per Port	30W; IEEE802.3af/at
Total PWR / Input Voltage	60W/48VDC
Power Consumption	Standby<5W, Full load<120W
Working Voltage	48-57VDC; 5P industrial phoenix terminal, anti-reverse protection.
Power Supply	No, optional 48V/60W or 48V/120W industrial power supply
Physical Parameter
Operation TEMP / Humidity	-40~+80°C;5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+85°C;5%~95% RH Non condensing
Dimension	11910030mm
Net /Gross Weight	<0.7kg /<1.0kg
Installation	Desktop, 35mm DIN rail
Certification & Warranty
Lightning Protection / Protection Level	Lightning protection: 6KV 8/20us;Protection level: IP40
	IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
	IEC61000-4-3(RS):10V/m(80~1000MHz)
	IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
	IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
	IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
	IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
	IEC61000-4-9(pulsed magnet field):1000A/m
	IEC61000-4-10(damped oscillation):30A/m 1MHz
	IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV
	IEC61000-4-16(common-mode transmission):30V; 300V,1s
	FCC Part 15/CISPR22(EN55022):Class A
	IEC61000-6-2(Common Industrial Standard)
Mechanical Properties	IEC60068-2-6 (anti vibration),IEC60068-2-27 (anti shock),IEC60068-2-32 (free fall)
Certification	CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B;RoHS;
Warranty	5 years, lifelong maintenance.
