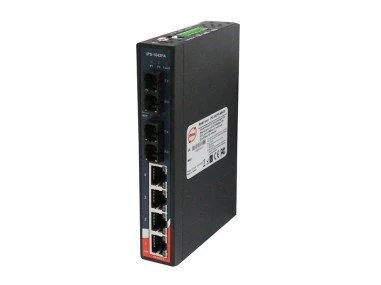

ORing IPS 1042FA SS SC Endüstriyel Ethernet Switch

Özellikler

IPS-1042FA series provide 4x10/100Base-T(X) PoE(P.S.E.) and 2x100Base-FX single/multi-mode fiber ports
Supports IEEE 802.3at compliant 30Watts PoE per port
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Support surge protection technology
Warning system by relay output
Slim type rigid IP-30 housing design
DIN-Rail and wall mounting enabled

Teknik Özellikler

ORing Gigabit Switch Model	IPS-1042FA-MM-SC	IPS-1042FA-SS-SC
Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX with P.S.E.	4
Fiber Ports Number	2	2
Fiber Ports standard	100Base-FX	100Base-FX
Fiber Mode	Multi-mode	Single-mode
Fiber Diameter (μm)	62.5/125 μm & 50/125 μm	9/125 μm
Fiber Optical Connector	SC	SC
Typical Distance (km)	2 km	30 km
Wavelength (nm)	1310 nm	1310 nm
Max. Output Optical Power(dBm)	-14 dBm	-8 dBm
Min. Output Optical Power(dBm)	-23.5 dBm	-15 dBm
Max. Input Optical Power(Saturation)	0 dBm	0 dBm
Min. Input Optical Power(Sensitivity)	-31 dBm	-34 dBm
Link Budget (dB)	7.5 dB	19 dB
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T
	IEEE 802.3u for 100Base-T(X) and 100Base-FX
	IEEE 802.3x for Flow control
	IEEE 802.3at PoE specification
MAC Table	2048 MAC addresses
Processing	Store-and-Forward
LED Indicators
Power Indicator	Green : Power LED x 2
Fault Indicator	Amber : Indicate PWR1 or PWR2 failure
10/100Base-T(X) RJ45 Port Indicator	Green for port Link/Act.
	Green for PoE power injected.
100Base-FX Fiber Port Indicator	Green for port Link/Act.
Fault Contact
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power	Dual DC inputs. 50~57VDC on 6-pin terminal block.
Power Consumption (Typ.)	6.78 Watts	5.6 Watts
	(power consumption of P.S.E. is not included)	(power consumption of P.S.E. is not included)
Overload Current Protection	Present
Reverse Polarity Protection	NOT Present
Physical Characteristics
Enclosure	IP-30
Dimensions (W x D x H)	26.1(W) x 94.9(D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inch.)
Weight (g)	395 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
