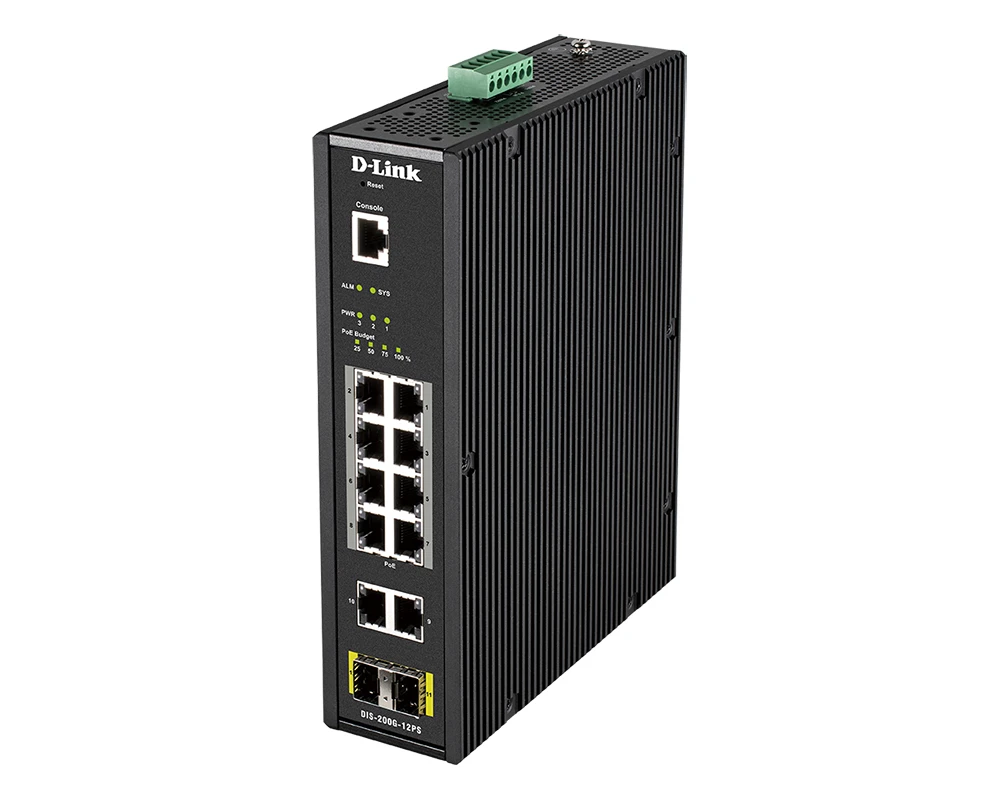

D-LINK DIS 200G-12PS Endüstriyel POE Switch
Özellikler
The DIS-200G-12PS managed switch, equipped with 10 10/100 / 1000Base-T ports (8 ports support Power over Ethernet (PoE)), and 2 1000Base-X SFP ports used to connect to a high-speed backbone, is designed for applications in the networks of industrial enterprises. The DIS-200G-12PS supports D-Link Green technology and advanced management and security features. Management functions include SNMP, Web-based management, D-Link Network Assistant and the command-line interface (CLI).
Teknik Özellikler
| Hardware |
| CPU |
| • Vitesse VSC7425 (416 MHz) |
| • Microsemi PD69208M + PD69200 (PoE) |
| RAM |
| • 128 MB |
| Flash Memory |
| • 32 MB |
| Interfaces |
| • 10 10/100 / 1000Base-T ports (8 ports with PoE support) |
| • 2 ports of 1000Base-X SFP |
| • Console port with RJ-45 connector |
| • Relay output 1 A / 24 V for power failure notification |
| Indicators |
| • PWR 1/2/3 |
| • ALM |
| • SYS |
| • Link / Activity / Speed (per port) |
| • PoE status |
| • Power budget PoE |
| Buttons |
| • Reset button |
| Power connector |
| • DC: terminal block for connecting up to two independent power supplies 1 |
| (46 V to 54 V DC) |
| • AC: 4 pin power mini-DIN PD-40VS (for connecting the power adapter 1 with the PDP-40 plug) |
| Housing |
| • Metal housing (IP30 standard) |
| Functional |
| Standards and functions |
| • IEEE 802.3 10Base-T (copper twisted pair) |
| • IEEE 802.3u 100Base-TX (copper twisted pair) |
| • IEEE 802.3ab 1000Base-T (copper twisted pair) |
| • IEEE 802.3z 1000Base-X |
| • IEEE 802.3az Energy Efficient Ethernet |
| • IEEE 802.3x Flow Control |
| • Automatic detection of MDI / MDIX on all copper ports |
| Performance |
| Switching matrix |
| • 24 Gb / s |
| Switching Method |
| • Store-and-forward |
| MAC address table size |
| • 8K entries |
| Max. the speed of redirection of 64-byte packets |
| • 17.85 Mpps |
| Package Buffer |
| • 4 MB |
| Jumbo frame |
| • 9,216 bytes |
| Software |
| Layer 2 functions |
| • Flow control |
| - 802.3x |
| - Preventing HOL locks |
| • IGMP Snooping |
| - IGMP v1 / v2 |
| - IGMP v3 2 |
| - Support for 64 groups |
| - IGMP Snooping Querier |
| • MLD Snooping |
| - MLD v1 |
| - MLD v2 2 |
| - Support for 64 groups |
| - MLD Snooping Querier |
| • Link aggregation |
| - 802.3ad |
| - Max. 6 groups per device / 8 ports per group |
| • Support for Ethernet Ring Protection Switching (ERPS 2 , ITU-T G.8032) |
| • Loopback Detection |
| • LLDP |
| • Port mirroring |
| - Support for 1 group of mirroring |
| - Modes: One-to-One, Many-to-One |
| • Statistics |
| - Tx Ok |
| - Tx Error |
| - Rx Ok |
| - Rx Error |
| • Spanning Tree Protocol |
| - 802.1D STP |
| - 802.1w RSTP |
| - 802.1s MSTP 2 |
| VLAN |
| • 802.1Q Tagged VLAN |
| • Port-based VLANs |
| • Auto Surveillance VLAN 2.0 (ASV2.0) 2 |
| • Voice VLAN |
| • Asymmetric VLAN |
| • VLAN Groups |
| - 128 VLAN groups |
| - Max. 4094 VLANs |
| • GVRP 2 |
| Quality of Service (QoS) |
| • CoS based on: |
| - Switch Ports |
| - 802.1p priority queues |
| - ToS |
| - IP Precedence |
| • Bandwidth management |
| - Based on the port (incoming, with a minimum step of up to 64 Kbps) |
| • Queue processing |
| - Strict Priority |
| - Weighted Round Robin (WRR) |
| • 4 queues per port |
| AAA |
| • Web-based access control (WAC) 2 |
| • 802.1X authentication 2 |
| • RADIUS 2 |
| Security |
| • D-Link Safeguard Engine |
| • Segmentation of traffic |
| • Broadcast / Multicast / Unicast Storm Protection |
| • Preventing DoS attacks |
| • SSL |
| • Port Security |
| OAM |
| • Cable Diagnostics |
| • Dying Gasp 2 |
| • DDM digital monitoring function (Digital Diagnosics Monitoring) 2 |
| Control |
| • Web interface (support for IPv4 / IPv6) |
| • D-Link Network Assistant (DNA) |
| • Command line interface (CLI) |
| • SNTP |
| • SNMP v1 / v2c |
| • SNMP v3 2 |
| • SNMP Trap |
| • Telnet server |
| • System log |
| • DHCP client |
| • TFTP client |
| • LLDP |
| • D-Link Discovery Protocol (DDP) |
| • Support for multiple software versions |
| • Support for multiple versions of configurations |
| Technology Green |
| • Energy saving due to: |
| - Connection Status Definitions |
| - Turn off indicators |
| - Turn off the ports |
| - Using sleep mode |
| MIB / RFC |
| • RFC768 UDP |
| • RFC791 IP |
| • RFC792 ICMP |
| • RFC793 TCP |
| • RFC826 ARP |
| • RFC1213 MIB II |
| • RFC1493 Bridage MIB |
| • RFC1907 SNMPv2 MIB |
| • RFC2668 802.3 MAU MIB |
| • RFC4133 Entity MIB |
| • RFC4363 IEEE 802.1p MIB |
| • ZoneDefense MIB |
| • Private MIB |
| PoE |
| PoE standard |
| • IEEE 802.3af |
| • IEEE 802.3at |
| Ports with PoE support |
| • Ports 1-8 |
| PoE Power Budget |
| • Up to 240W (when the 180W PWR180AC power adapter is connected, the PoE budget is 140W, and if you connect a more powerful power source such as 300W, the PoE budget can reach 240W, max 30W per PoE) |
| Physical parameters |
| Dimensions (L x W x H) |
| • 210 x 171.2 x 48 mm |
| The weight |
| • 2.5 kg |
| terms of Use |
| Food |
| • 46-54 V DC (with the ability to connect up to two power supplies (not included in the scope of delivery)) |
| • Power adapter (not included): |
| - Input: 100-240 V AC, 2.5 A, 50/60 Hz |
| - Output: 54 V, 3.34 A |
| Noise level |
| • 0 dB |
| Protection against static electricity |
| • Support of static electricity protection on copper ports (IEC61000-4-5 standard) |
| Ventilation system |
| • Passive |
| Temperature |
| • Operating: -40 to 65 ° C |
| • Storage: -40 to 85 ° C |
| Humidity |
| • Operating: 0% to 95% non-condensing |
| • When stored: 0% to 95% non-condensing |
| Contents of delivery |
| • Switch DIS-200G-12PS |
| • Console cable with RJ-45 connector |
| • Wall mounting kit |
| • DIN rail mounting kit |
| • Quick Installation Guide |
| • CD |
| Other |
| EMI |
| • CE |
| • FCC |
| • BSMI |
| • C-Tick |
| Security |
| • UL |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 200-400 Watt
