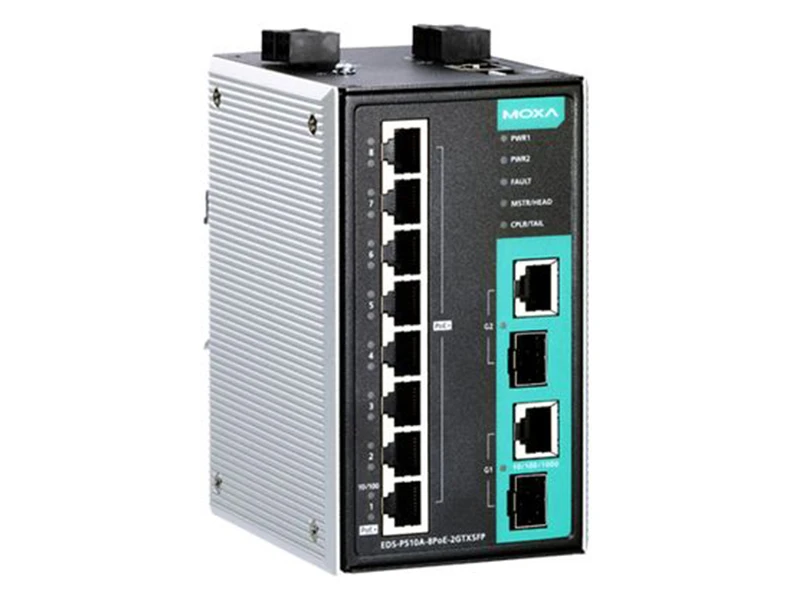

MOXA EDS P510A 8PoE 2GTXSFP 10/100 Endüstriyel PoE Switch
Özellikler
- Built-in 8 PoE+ ports compliant with IEEE 802.3af/at standards
- Up to 36 W output per PoE+ port
- 3 kV LAN surge protection for extreme outdoor environments
- PoE diagnostic for powered device mode analysis
- 2 Gigabit combo ports for high-bandwidth and long-distance communication
- Operates with 240 watts full PoE+ loading at -40 to 75°C
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
Teknik Özellikler
Technology | |
Standards | IEEE 802.3af/at for Power-over-Ethernet |
IEEE 802.3 for 10BaseT | |
IEEE 802.3u for 100BaseT(X) and 100BaseFX | |
IEEE 802.3ab for 1000BaseT(X) | |
IEEE 802.3z for 1000BaseX | |
IEEE 802.3x for Flow Control | |
IEEE 802.1D-2004 for Spanning Tree Protocol | |
IEEE 802.1w for Rapid STP | |
IEEE 802.1s for Multiple Spanning Tree Protocol | |
IEEE 802.1Q for VLAN Tagging | |
IEEE 802.1p for Class of Service | |
IEEE 802.1X for Authentication | |
IEEE 802.3ad for Port Trunk with LACP | |
Software Features | |
Management | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
Filter | 802.1Q VLAN, Port-Based VLAN, GVRP, IGMP v1/v2, GMRP |
Redundancy Protocols | STP, RSTP, MSTP, Turbo Ring v1/v2, Turbo Chain, Link Aggregation |
Security | RADIUS, TACACS+, SSL, SSH, Port Lock |
Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP (software-based) |
Industrial Protocols | EtherNet/IP, Modbus/TCP |
MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
Switch Properties | |
Priority Queues | 4 |
Max. Number of VLANs | 64 |
VLAN ID Range | VID 1 to 4094 |
IGMP Groups | 1024 |
MAC Table Size | 8 K |
Packet Buffer Size | 1 Mbit |
Interface | |
RJ45 Ports | 10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation speed |
Fiber Ports | 100/1000BaseSFP slot |
Console Port | RS-232 (RJ45 connector) |
PoE Pinout | V+, V+, V-, V- for pin 1, 2, 3, 6 (Endspan, MDI, Mode A) |
DIP Switches | Turbo Ring, Master, Coupler, Reserve |
Alarm Contact | 1 relay output with current carrying capacity of 0.5 A @ 48 VDC |
Digital Inputs | 1 input with the same ground, but electrically isolated from the electronics. |
• +13 to +30 V for state “1” | |
• -30 to +3 V for state “” | |
• Max. input current: 8 mA | |
Power Requirements | |
Input Voltage | 48 VDC, redundant dual inputs |
Operating Voltage | 44 to 57 VDC |
Input Current | 5.36 A @ 48 VDC |
Overload Current Protection | Present |
Connection | 2 removable 2-contact terminal blocks |
Reverse Polarity Protection | Present |
Power Consumption | Max. 17.28 W full loading without PDs' consumption |
Power Budget | Max. 240 W for total PDs’ consumption |
Max. 36 W for each PoE port | |
Physical Characteristics | |
Housing | Metal |
IP Rating | IP30 protection |
Dimensions | 79.2 x 135 x 105 mm (3.12 x 5.31 x 4.13 in) |
Weight | 1030 g (2.28 lb) |
Installation | DIN-rail mounting, wall mounting (with optional kit) |
Environmental Limits | |
Operating Temperature | Standard Models: 0 to 60°C (32 to 140°F) |
Wide Temp. Models: -40 to 75°C (-40 to 167°F) | |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
Safety | UL 508 |
Hazardous Location | UL/cUL Class 1 Division 2 |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV |
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m | |
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV | |
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV | |
IEC 61000-4-6 CS: Signal: 10 V | |
IEC 61000-4-8 | |
Traffic Control | NEMA-TS2 |
Rail Traffic | EN 50121-4 |
Shock | IEC 60068-2-27 |
Freefall | IEC 60068-2-32 |
Vibration | IEC 60068-2-6 |
Note: Please check Moxa’s website for the most up-to-date certification status. | |
MTBF (mean time between failures) | |
Time | 710,166 hrs |
Standard | Telcordia (Bellcore), GB |
MOXA EDS P510A 8PoE 2GTXSFP 10/100 Endüstriyel PoE Switch Pdf Dosyası1.03 MB
Teknik Kısa
PoE : PoE Plus
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
Montaj Tipi : Rack Mount
PoE Port Sayısı : 8 Port
PoE Güç Bütçesi : 200-400 Watt
Montaj Tipi : Wall Mount
