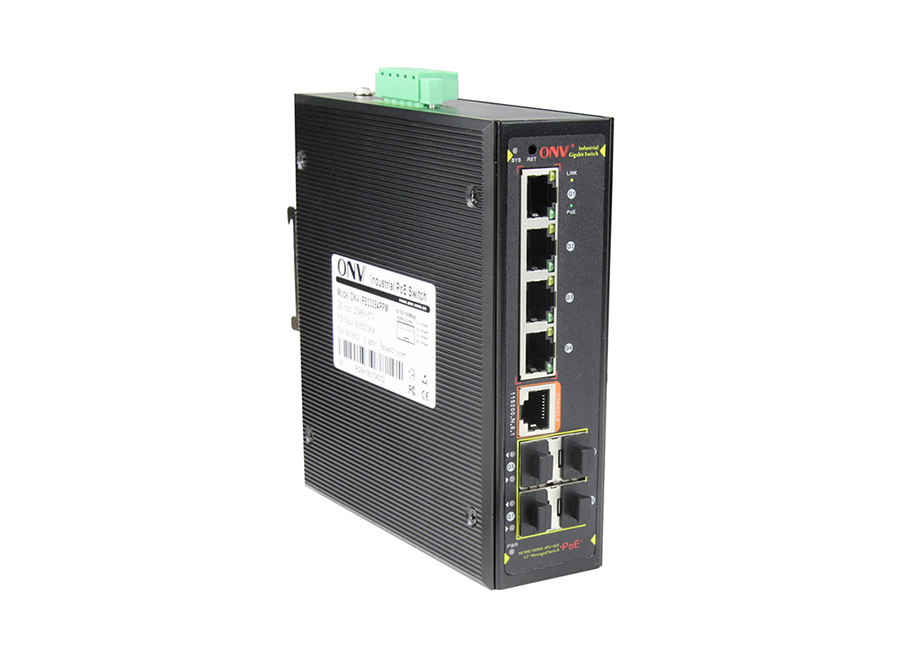

| Model | ONV-IPS33084PFM |
| Interface Characteristics |
| Fixed Port | 4*10/100/1000Base-T PoE ports (Data/Power) |
| 4*100/1000Base-X uplink SFP slot ports (Data) |
| 1 * RS232 console port(115200,N,8,1) |
| 2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal) |
| Ethernet Port | Port 1-4 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| 1000BASE-T: Cat5e or later UTP(≤100 meter) |
| SFP Slot Port | Gigabit SFP optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
| Optical Cable | Multi mode: 850nm 0 ~ 550M, single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
| Chip Parameter |
| Network Management Type | L2+ |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T |
| IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-TX |
| IEEE802.3z 1000Base-X, IEEE802.3x |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 192Gbps |
| Forwarding | 11.9Mpps |
| Rate@64byte |
| MAC | 8K |
| Buffer Memory | 4M |
| Jumbo Frame | 9.6K |
| LED Indicator | Power/ System : SYS (green) , Network: Link (yellow), fiber port: L/A (green), PoE: PoE (green) |
| Reset Switch | Yes, One-button factory reset |
| PoE & Power |
| PoE Port | Port 1 to port 4 |
| PoE Management | PoE working status |
| Delay start of power supply |
| PoE output priority configuration |
| Scheduling of PoE operation and time |
| Total power limit of PoE power supply |
| PoE output power allocation, off& af &at |
| Power Supply Pin | Default: 1/2 (+), 3/6 (-) |
| Max Power Per Port | 30W; IEEE802.3af/at |
| Total PWR / Input Voltage | 60W (48VDC) |
| Power Consumption | Standby<6W, Full load<60W |
| Working Voltage | 48-57VDC; 5 Pin industrial Phoenix terminal, support anti-reverse protection. |
| Power Supply | No, optional 48V/60W or 48V/120W industrial power supply |
| Physical Parameter |
| Operation TEMP / Humidity | -40~+80°C;5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing |
| Dimension (L*W*H) | 145*134.5*47.5mm |
| Net /Gross Weight | <0.7kg / <0.9kg |
| Installation | Desktop, DIN rail |
| Certification & Warranty |
| Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 |
| IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge |
| IEC61000-4-3(RS):10V/m(80~1000MHz) |
| IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV |
| IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV |
| IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) |
| IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s |
| IEC61000-4-9(pulsed magnet field):1000A/m |
| IEC61000-4-10(damped oscillation):30A/m 1MHz |
| IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV |
| IEC61000-4-16(common-mode transmission):30V; 300V,1s |
| FCC Part 15/CISPR22(EN55022):Class A |
| IEC61000-6-2(Common Industrial Standard) |
| Mechanical Properties | IEC60068-2-6 (anti vibration) |
| IEC60068-2-27 (anti shock) |
| IEC60068-2-32 (free fall) |
| Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; |
| Warranty | 5 years , lifelong maintenance. |
| Network Management Features |
| Interface | IEEE802.3X (Full-duplex) |
| Port temperature protection setting |
| Port green Ethernet Energy-saving setting |
| Broadcast storm control based on port speed |
| The speed limit of the message flow in the access port. |
| The minimum particle size is 64Kbps. |
| Layer 3 Features | L2+ network management ,IPV4/IPV6 management |
| L3 soft routing forwarding, |
| Static route, Default route @ 128 pcs, APR @ 1024 pcs |
| VLAN | 4K VLAN based on port, IEEE802.1q |
| VLAN based on the protocol |
| VLAN based on MAC |
| Voice VLAN, QinQ configuration |
| Port configuration of Access, Trunk, Hybrid |
| Port Aggregation | LACP, Static aggregation |
| Max 4 aggregation groups and 8 ports per group. |
| Spanning Tree | STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s) |
| Industrial Ring Network Protocol | G.8032 (ERPS),Recovery time less than 20ms |
| 250 Ring at most, Max 250 devices per ring. |
| Multicast | MLD Snooping v1/v2,Multicast VLAN |
| IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out |
| Port Mirroring | Bidirectional data mirroring based on port |
| QoS | Flow-based Rate Limiting |
| Flow-based Packet Filtering |
| 8*Output queues of each port |
| 802.1p/DSCP priority mapping |
| Diff-Serv QoS,Priority Mark/Remark |
| Queue Scheduling Algorithm (SP, WRR, SP+WRR) |
| ACL | Port-based Issuing ACL,ACL based on port and VLAN |
| L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
