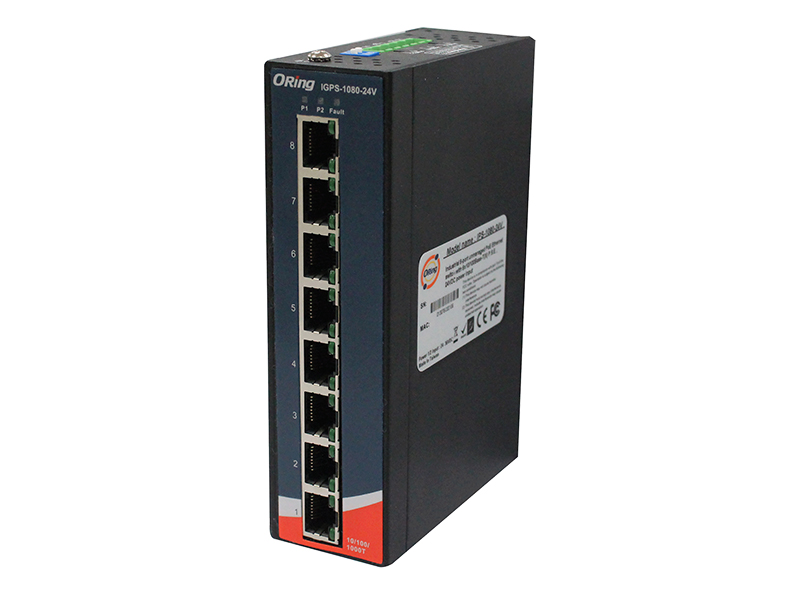

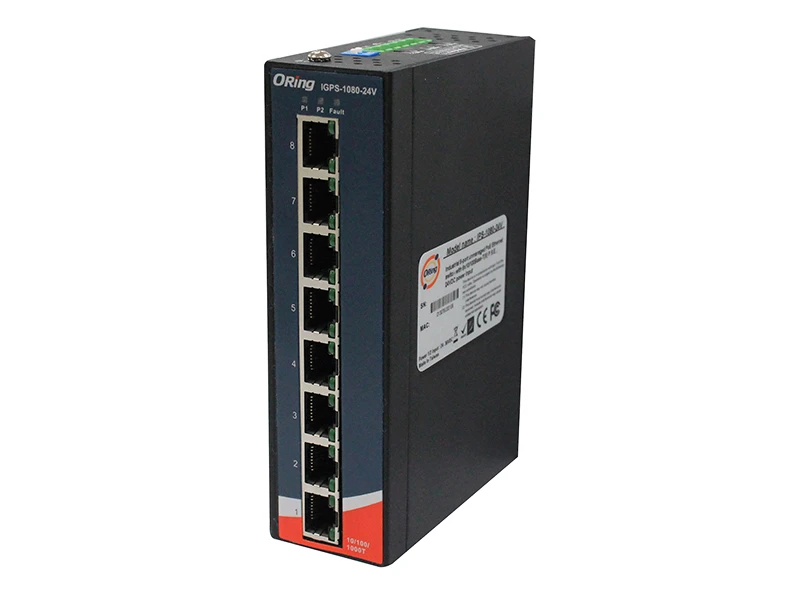

ORing IGPS 1080 24V I Endüstriyel PoE Switch
Özellikler
- IGPS-1080-24V-I provide 8x10/100/1000Base-T(X) PoE (P.S.E.) ports
- Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with maximum 30Watts per port
- Supports Isolation protection
- Supports jumbo frame up to 9.6KBytes
- Supports dual 24VDC power inputs for power redundancy
- Supports auto-negotiation and auto-MDI/MDI-X
- Supports store and forward transmission
- Supports flow control
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
Teknik Özellikler
| Physical Ports | |
| 10/100/1000Base-T(X) Ports in RJ45 With P.S.E. | 8 |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10Base-T, |
| IEEE 802.3u for 100Base-TX | |
| IEEE 802.3ab for 1000Base-T | |
| IEEE 802.3x for Flow control | |
| IEEE 802.3at PoE specification (up to 30 Watts per port for P.S.E.) | |
| MAC Table | 4K MAC addresses |
| Processing | Store-and-Forward |
| Jumbo Frame | Up to 9.6KBytes |
| LED Indicators | |
| Power Indicator | Green : Power LED x 2 |
| Fault Indicator | Amber : Indicate PWR1 or PWR2 failure |
| 10/100/1000Base-T(X) RJ45 port and PoE indicator | Green for port Link/Act. |
| Green for PoE power injected. | |
| Fault contact | |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| DIP-Switch | |
| DIP-Switch 1 | Power-2 failed warning : (ON) enable, (OFF) disable |
| DIP-Switch 2 | Power-1 failed warning : (ON) enable, (OFF) disable |
| Power | |
| Redundant Input power | Dual DC inputs 24~36VDC on 6-pin terminal block. |
| Power consumption (Typ.) | 13 Watts |
| PoE Power Budget | 120 Watts |
| Overload current protection | Present |
| Reverse polarity protection | Present |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x D x H) | 41(W) x 94.9(D) x 144.3(H) mm |
| Weight (g) | 686 g |
| Environmental | |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operating Humidity | 5% to 95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55032) class A, E-MARK |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Warranty | 5 years |
ORing IGPS 1080 24V I Endüstriyel PoE Switch Pdf Dosyası618.86 KB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Montaj Tipi : Wall Mount
PoE Port Sayısı :
8 Port
8 Port PoE Güç Bütçesi : 50-130 Watt
Aktarım Türü : Rj45
