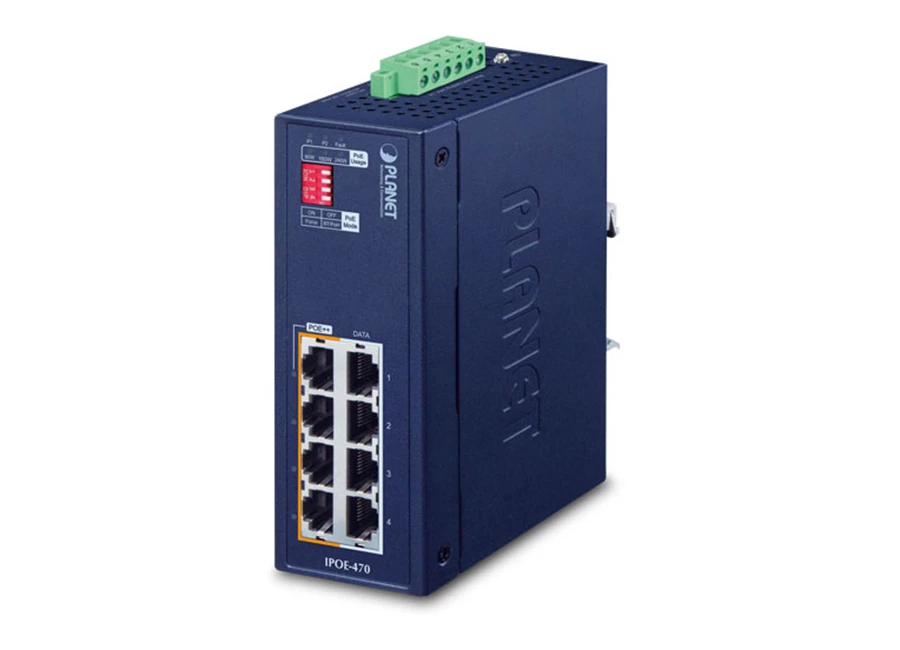

Planet IPOE-470 Endüstriyel PoE Switch

Teknik Özellikler

Hardware Specifications
Copper Ports 4-pair 10/100/1000BASE-T RJ45
-Data input port 1 to Port 4
-Data + PoE output port 1 to Port 4
Connector Removable 6-pin terminal block
Pins 1 and 2 for Power 1
Pins 5 and 6 for Power 2
Pins 4 and 4 for fault alarm
Data Rate 10/100/1000Mbps
Power Requirements IPOE-470: 48~54V DC, redundant power with reverse polarity protection
IPOE-470-12V: 12~54V DC, redundant power with reverse polarity protection
Power Requirements (Ethernet Full Loading) IPOE-470:
System ON without loading
 48V DC: 1.92 watts/6.6BTU
 54V DC: 2.16 watts/7.4BTU
Full loading with PoE
 48V DC: 241 watts/822.3BTU
 54V DC: 244 watts/832.6BTU
IPOE-470-12V:
System ON without loading
 12V DC: 2.52 watts/8.6BTU
 24V DC: 3.6 watts/12.3BTU
 48V DC: 3.36 watts/11.5BTU
 54V DC: 3.24 watts/11.1BTU
Full loading with PoE
 12V DC: 72 watts/245.7BTU
 24V DC: 131 watts/447BTU
 48V DC: 249 watts/849.6BTU
 54V DC: 251 watts/856.5BTU
DIP Switch Per PoE port
Off: BT/PoH – 802.3bt PoE++/PoH + Legacy 95W PoE output
ON: Force - 60w PoE output
Dimensions 50 x 87.8 x 135 mm (W x D x H)
Weight IPOE-470: 537g
IPOE-470-12V: 679g
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
LED Indicator System:
 Power 1 (Green)
 Power 2 (Green)
 Fault (Red)
PoE Usage:
 80W/160W/240W (Amber)
802.3bt PoE++ Port:
 PoE-in-use x 1 (Amber)
ESD Protection 6KV
Surge Protection 6KV
Network Cable Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
Power over Ethernet
PoE Standard IEEE 802.3bt PoE++, 4-pair type 4 PSE
Backward compatible with IEEE 802.3at PoE+ PSE
PoE Power Supply Type 802.3bt PoE++/PoH/Force End-span + Mid-span
802.3at PoE+ End-span/Mid-span
Power Pin Assignment Pair 1 End-span: 1/2(-), 3/6(+)
Pair 2 Mid-span: 4/5(+), 7/8(-)
802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Power Output Max. 90 watts to 802.3bt PoE++ PD
Max. 95 watts to PoH PD
Max. 60 watts to force-powered PD
Max. 36 watts to 802.3at PoE+ PD
PoE Power Budget (max.) IPOE-470:
120W@48V DC input
240W@52V-54V DC input
IPOE-470-12V:
60W@12V-23V DC input
120W@24V-47V DC input
240W@48-54V DC input
Number of devices that can be powered 4
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
Environment
Temperature Operating: -40~75 degrees C
Storage: -40~75 degrees C
Humidity Operating: 5~90% (non-condensing)
  Storage: 5~90% (non-condensing)
Ordering Information
IPOE-470 Industrial 4-port 10/100/1000T 802.3bt PoE++ Injector Hub (-40~75 degrees C)
IPOE-470-12V Industrial 4-port 10/100/1000T 802.3bt PoE++ Injector Hub w/ 12V Booster (-40~75 degrees C)

pdfPlanet IPOE-470 PoE Switch Pdf Dosyası3.82 MB

Teknik Kısa

PoE : PoE
Port Hızı : 1 GBit
Montaj Tipi : Wall Mount
PoE Port Sayısı : Tooltip 4 Port
PoE Güç Bütçesi : 200-400 Watt
