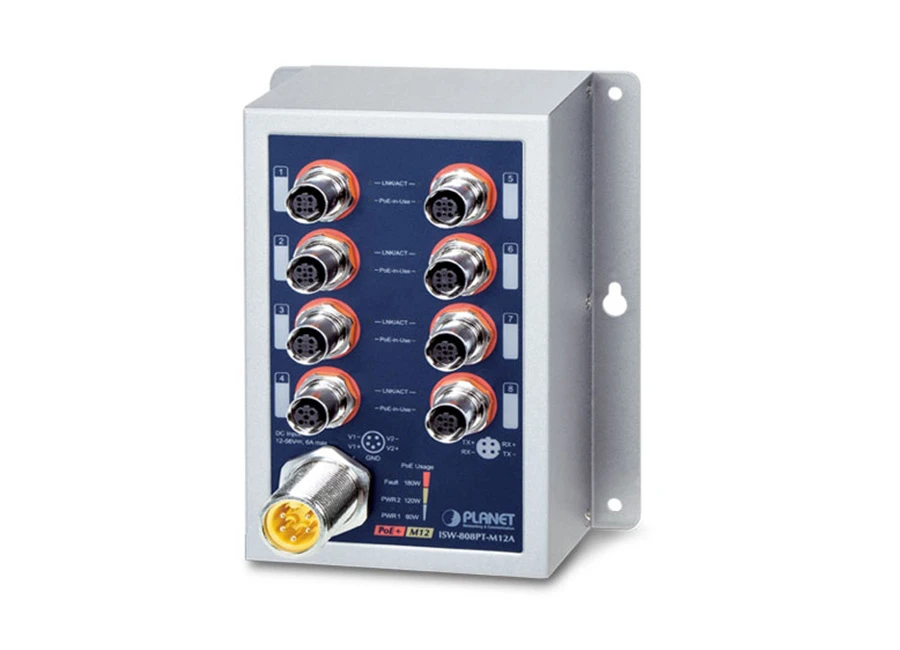

Planet ISW-808PT-M12A Endüstriyel PoE Switch

Özellikler

Physical Port

8-port 10/100BASE-TX with dustproof M12 connectors and IEEE 802.3at PoE+ injector function
Power over Ethernet
Its end-span PSE complies with IEEE 802.3at Power over Ethernet Plus
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 8 ports of IEEE 802.3af/802.3at devices powered
180-watt PoE budget
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters

Layer 2 Features

Supports auto-negotiation and 10/100Mbps half/full duplex mode
High-performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Backplane (switching fabric): 1.6Gbps
Integrated address look-up engine, supporting 2K absolute MAC addresses
Automatic address learning and address aging
CSMA/CD Protocol

Industrial Case and Installation

IP50 metal case
Dustproof and fanless designs
DIN-rail and wall-mount installation
Redundant power design
- 12 to 56V DC, redundant power with reverse polarity protection
- Active-active redundant power failure protection
- Backup of catastrophic power failure on one supply
- Fault tolerance and resilience
Supports 6KV DC Ethernet ESD protection
Supports 6KV surge protection
-40 to 75 degrees C operating temperature

Teknik Özellikler

Hardware Specifications
Copper Ports	8 x M12, 4-pin D-coded female connector
Copper Ports	10/100BASE-TX auto-MDI/MDI-X
IEEE 802.3at PoE+ Ports	8, port 1 to port 8
Power Connector	1 x M23, 5-pin A-coded male connector
Enclosure	IP50 metal case
Dimensions (W x D x H)	132 x 75 x 160mm
Weight	952g
Installation	Wall-mount and DIN-rail kit
Power requirements	Dual 12~56V DC
Power Consumption	Max. 197.3 watts/673.2BTU
ESD Protection	6KV DC
Surge Protection	6KV DC
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	2K entries
Flow Control	Back pressure for half duplex
Flow Control	IEEE 802.3x pause frame for full duplex
Switch Fabric	1.6Gbps
Throughput (packet per second)	1.19Mpps
Maximum Transmit Unit	1536 bytes
Network Cables	10BASE-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft)
	100BASE-TX: 2-pair UTP Cat.5, 5e, 6 up to 100m (328ft)
	EIA/TIA-568 100-ohm STP (100m, max.)
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus / PSE
PoE Power Supply Type	End-span
PoE Power Output	54V DC per port with maximum of 36 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Budget	180 watts@48-56V DC input
	120 watts@24~48V DC input
	60 watts@12~23V DC input
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A
Regulatory Compliance	CE
Standards Compliance	IEEE 802.3 10BASE-T Ethernet
	IEEE 802.3u 100BASE-TX Fast Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet plus
Stability Testing	IEC60068-2-32 (free fall)
	IEC60068-2-27 (shock)
	IEC60068-2-6 (vibration)
Environments
Operating	Temperature: -40 ~ 75 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -40 ~ 80 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
Ordering Information
ISW-808PT-M12A	Industrial 8-Port 10/100TX M12 802.3at PoE+ Switch (-40~75 degrees C)
Accessories
CB-M23F5F-120	5-pin M23 Female to Bare End Power Cable (1.2 meters)
CB-M12D4MRJ-120	4-pin D-coded M12 Male to RJ45 Ethernet Cable (1.2 meters)
CB-M12D4MRJ-1000	4-pin D-coded M12 Male to RJ45 Ethernet Cable (10 meters)
CB-M12D4MD4F-1000	4-pin D-coded M12 Male to D-coded M12 Female Ethernet Cable (10 meters)
