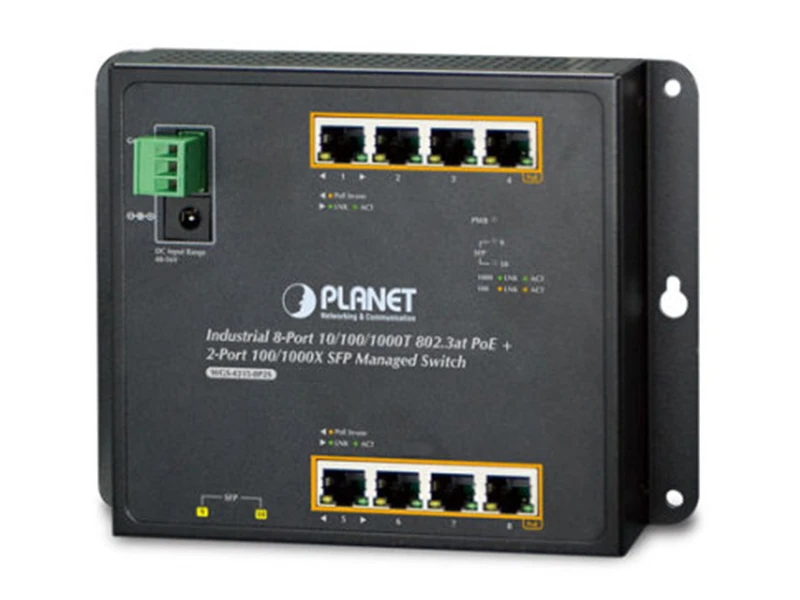

Planet PL WGS 4215 8P2S Endüstriyel PoE Switch
Özellikler
Teknik Özellikler
| Hardware Specifications | |
| Copper Ports | Eight 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| PoE Inject Port | Eight with 802.3at PoE+ injector function (Port-1 to Port-8) |
| SFP/mini-GBIC Slots | Two 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps/non-blocking |
| Switch Throughput@64 bytes | 14.8Mpps @64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex | |
| Jumbo Frame | 10KB |
| Reset Button | < 5 sec: System reboot |
| > 5 sec: Factory default | |
| LED | ■ Power LED: Power (Green) |
| ■ PoE Port (Port-1 to Port-8): | |
| PoE-in-Use (Orange) | |
| LNK/ACT (Green) | |
| ■ 100/1000X SFP Ports (Port 9 to Port 10): | |
| 1000 LNK/ACT (Green) | |
| 100 LNK/ACT (Orange) | |
| Connector | ■ Removable 3-pin terminal block for power input |
| - Pin 1/2 for Power (Pin 1: V+/Pin 2: V-) | |
| - Pin 3 for earth ground | |
| ■ DC power jack with 2.0mm central pole | |
| Power Requirements | 48~56V DC, 5A (max.) terminal block power input |
| 48~56V DC, 5A (max.) DC jack power input | |
| Note: The two power input interfaces don’t support power redundant function. | |
| Power Consumption/ Dissipation | Max. 210 watts/716 BTU |
| Dimensions (W x D x H) | 178 x 25 x 134 mm |
| Weight | 640g |
| ESD Protection | Contact Discharge 6KV DC |
| Air Discharge 8KV DC | |
| Enclosure | Metal |
| Installation | Fixed wall mount, magnetic wall mount or DIN rail |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/802.3at Power over Ethernet PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | ■ IEEE 802.3af Standard |
| - Per port 48V~56V DC (depending on the power supply), max. 15.4 | |
| watts | |
| ■ IEEE 802.3at Standard | |
| - Per port 50V~56V DC (depending on the power supply), max. 36 watts | |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 200 watts (depending on power input) |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 7 |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/Both |
| Many-to-1 monitor | |
| VLAN | 802.1Q tagged-based VLAN |
| Up to 256 VLAN groups, out of 4094 VLAN IDs | |
| 802.1ad Q-in-Q tunneling (VLAN stacking) | |
| Voice VLAN | |
| Protocol VLAN | |
| Private VLAN (Protected port) | |
| GVRP | |
| Management VLAN | |
| Link Aggregation | IEEE 802.3ad LACP and static trunk |
| Supports 1 groups with 2 SFP ports per trunk | |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) |
| IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) | |
| IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) | |
| STP BPDU guard, BPDU filtering and BPDU forwarding | |
| IGMP Snooping | IPv4 IGMP (v2/v3) snooping |
| IGMP querier | |
| Up to 256 multicast groups | |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, up to 256 multicast groups |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL |
| IPv4/IPv6 IP-based ACE/MAC-based ACE | |
| QoS | 8 mapping IDs to 8 level priority queues |
| - Port Number | |
| - 802.1p priority | |
| - DSCP/IP precedence of IPv4/IPv6 packets | |
| Traffic classification based, strict priority and WRR | |
| Ingress/Egress Rate Limit per port bandwidth control | |
| Security | IEEE 802.1X port-based authentication |
| Built-in RADIUS client to cooperate with RADIUS server | |
| RADIUS/TACACS+ authentication | |
| IP-MAC port binding | |
| MAC filtering | |
| Static MAC address | |
| DHCP snooping and DHCP Option82 | |
| STP BPDU guard, BPDU filtering and BPDU forwarding | |
| DoS attack prevention | |
| ARP inspection | |
| IP source guard | |
| Storm control support | |
| Broadcast/Unknown unicast/Unknown multicast | |
| Management Functions | |
| Basic Management Interfaces | Web browser; Telnet; SNMP v1, v2c, v3 |
| Firmware upgrade by HTTP/TFTP protocol through Ethernet network | |
| Configuration upload/download through HTTP/TFTP | |
| Remote/Local Syslog | |
| System log | |
| LLDP protocol | |
| SNTP | |
| PLANET Smart Discovery Utility | |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II |
| RFC 1215 Generic Traps | |
| RFC 1493 Bridge MIB | |
| RFC 2674 Bridge MIB Extensions | |
| RFC 2737 Entity MIB (version 2) | |
| RFC 2819 RMON (1, 2, 3, 9) | |
| RFC 2863 Interface Group MIB | |
| RFC 3635 Ethernet-like MIB | |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) |
| IEC 60068-2-27 (shock) | |
| IEC 60068-2-6 (vibration) | |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX/100BASE-FX | |
| IEEE 802.3z Gigabit SX/LX | |
| IEEE 802.3ab Gigabit 1000BASE-T | |
| IEEE 802.3x Flow Control and Back Pressure | |
| IEEE 802.3ad Port Trunk with LACP | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1s Multiple Spanning Tree Protocol | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN Tagging | |
| IEEE 802.1x Port Authentication Network Control | |
| IEEE 802.1ab LLDP | |
| RFC 768 UDP | |
| RFC 793 TFTP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP v1 | |
| RFC 2236 IGMP v2 | |
| RFC 3376 IGMP v3 | |
| RFC 2710 MLD v1 | |
| RFC 3810 MLD v2 | |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Storage | Temperature: -40 ~ 85 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Accessories | |
| Standard Accessories | ■ Quick Installation Guide x 1 |
| ■ 3-pin Terminal Block Connector x 1 | |
| ■ Wall-mounted Kit x 1 | |
| ■ DIN-rail Kit x 1 | |
| ■ Magnet Kit x 1 | |
| ■ RJ45 Dust Cap x 8 | |
| ■ SFP Dust Cap x 2 | |
Planet PL WGS 4215 8P2S Endüstriyel PoE Switch PDF Dosyası1.85 MB
