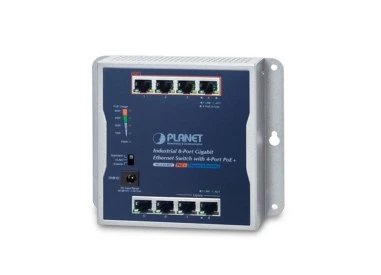

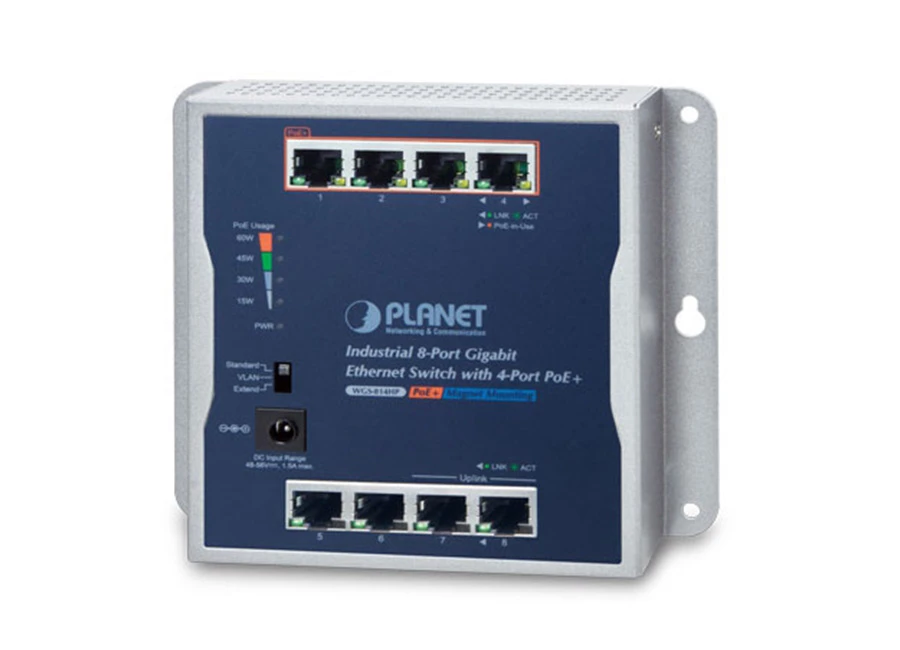

Planet WGS-814HP Endüstriyel PoE Switch
Özellikler
Physical Port
- 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 4-Port IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE
- Up to 4 ports of IEEE 802.3at devices powered
- Supports PoE Power up to 30.8 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 250 meters (in extend mode)
Layer 2 Features
- High performance Store and Forward architecture
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 9K jumbo frame supports in 1000Mbps duplex mode
- Automatic address learning and address aging
Industrial Case and Installation
- Compact size; fixed wall mounting, magnetic wall mounting or DIN-rail mounting
- IP30 metal chassis
- Supports -20 to 60 degrees C operating temperature
- LED indicators for real-time PoE usage
- 48V~56V DC input range
Planet WGS-814HP Endüstriyel PoE Switch Pdf Dosyası2.92 MB
Planet WGS-814HP Endustriyel PoE Switch Kullanım Kılavuzu (ing) Pdf Dosyası1.92 MB
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilemez
Aktarım Türü : Gbit Fiber
Çalışma Mesafesi : 250 Mt.
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 200-400 Watt
